RUYI

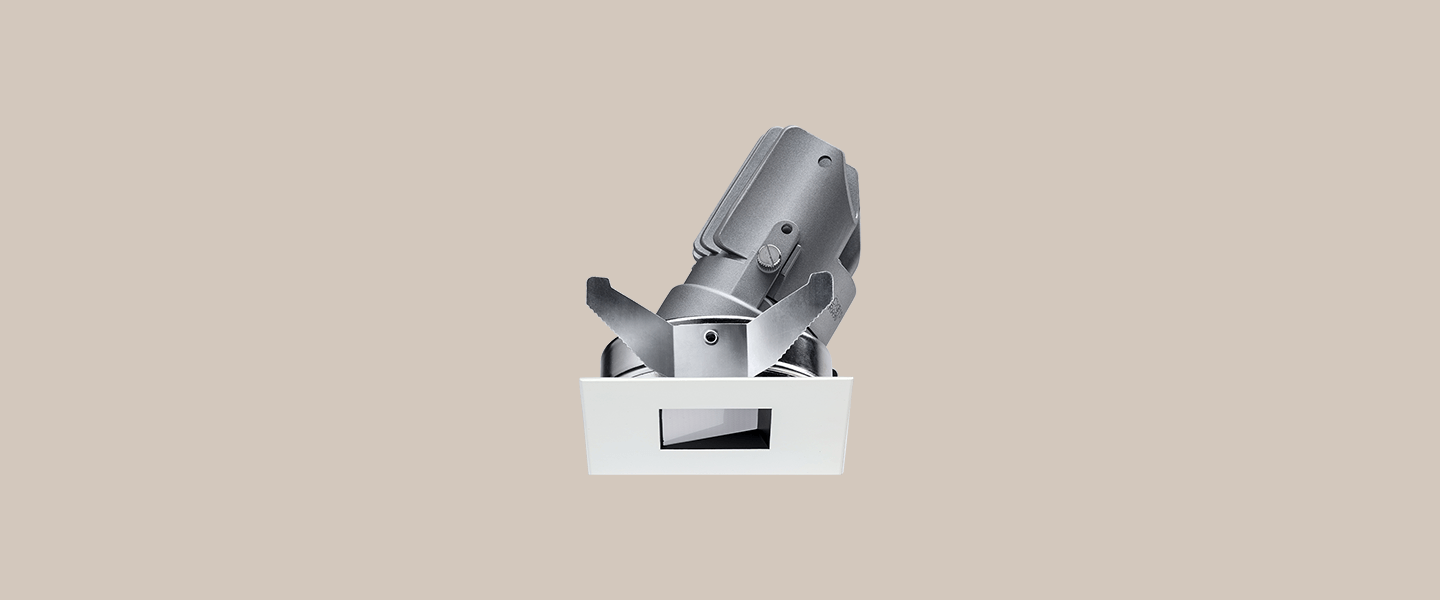

Fixed Recessed Square Hole Asymmetrical Downlight

RUYI

Fixed Recessed Square Hole Asymmetrical Downlight

Creative design with small, thin and deep style. LINNOU lamp's overall minimum size is only Ø 60 * H72mm. LINNOU is named for its compact shape, which saves the hole opening size when installing, effectively solves the problem that the big hole opening on the ceiling may destroy skyline integrity of the space. In addition, the delicate lamps can be lively coordinated with the reflector which has a variety of color. Designers can choose different reflector according to the comprehensive color of ceiling and space, to present both practicability and beauty.

Through the clever and ultra-thin design of adjustable lamps, and the minimum height of lamps is controlled in the range of 75 mm. In satisfying the inside height 80 mm under ceiling, it maximally saves the indoor space. And in view of the small size light's new spring design, under the condition of meet the polarization of 30 degrees, it can effectively solve the problem of installation requirements on thickness 8 ~ 20 mm of ceiling. Design innovation and practicality is presented incisively and vividly in the research and development and application of the LINNOU series downlight.

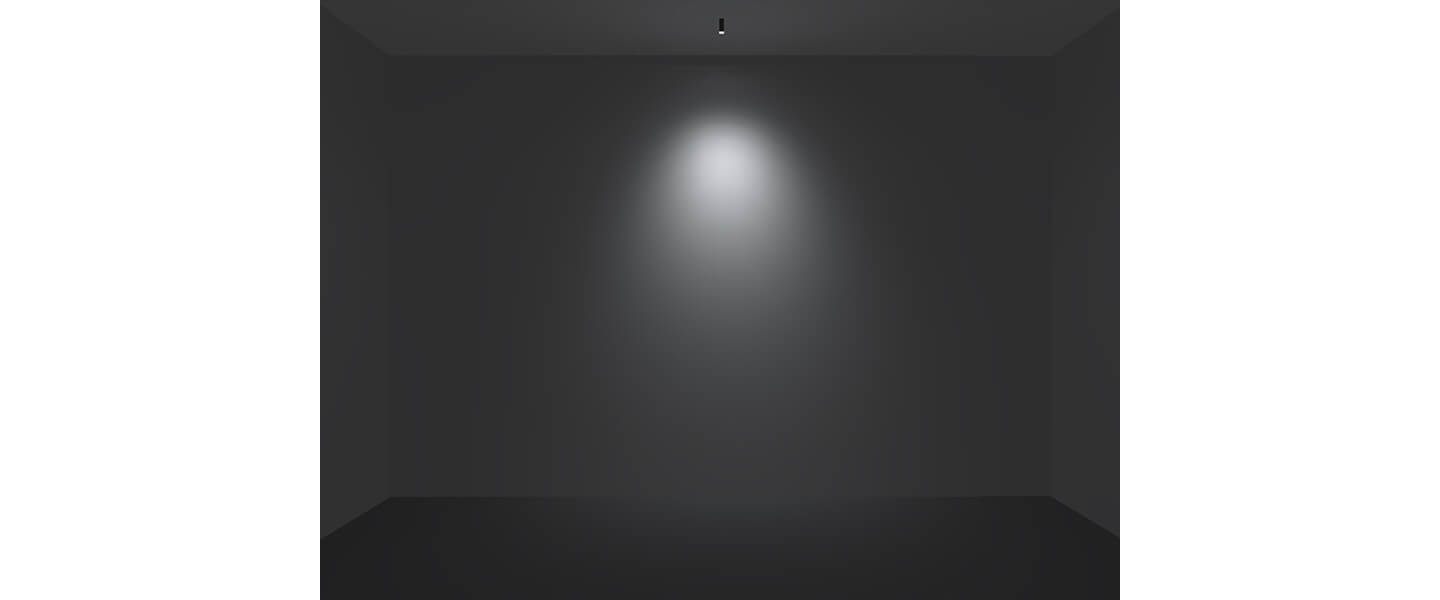

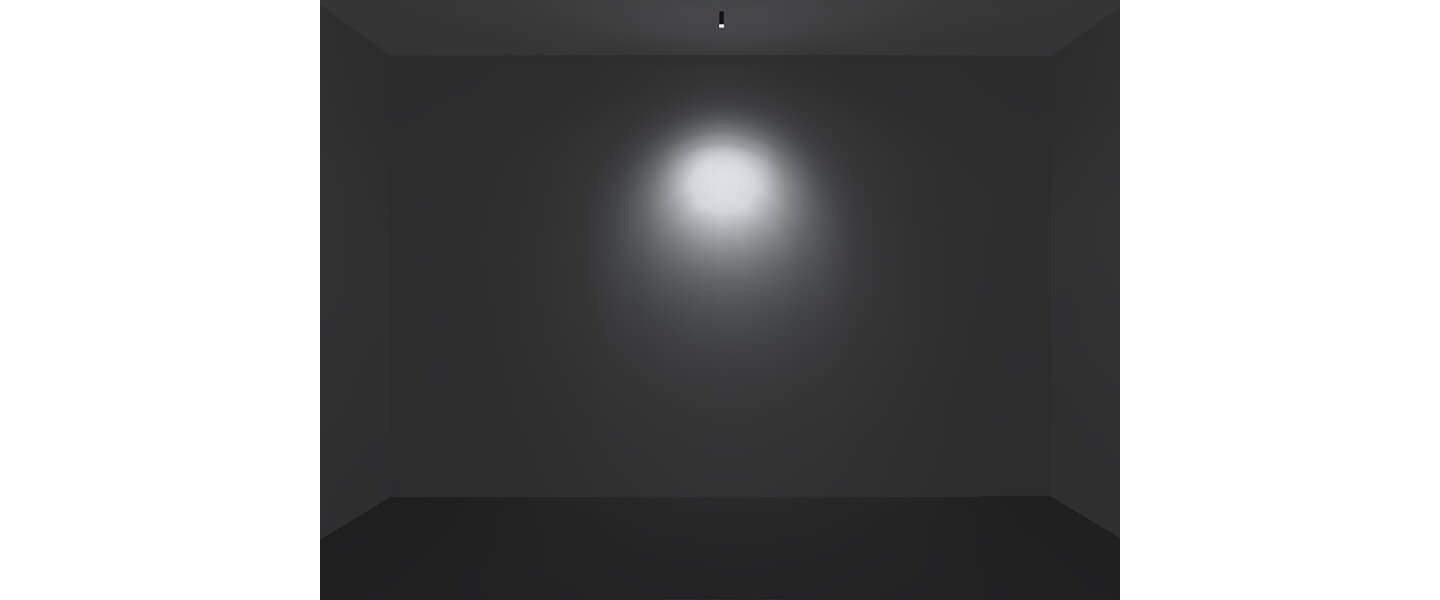

Lighting Effects

Products Specification:: Type:Fixed Recessed Square Hole Asymmetrical Downlight; Cut-Out:ø 85 mm; Beam Angle:15x53D 22x51D 30x50D; Power:5W 8W 10W 12W; CCT:2700K 3000K 4000K

Line Drawing:

General Features:

Accessories :

Reflector Color:

Frame Color:

Select your Model No:
*Please log in before selecting your Model No

Power(W)

Power(W)
5 W
7 W
8 W
10 W
12 W

Beam Angle

Beam Angle
15°
15x53°
22x51°
26°
30x50°
36°
54°

CRI

CRI
Ra>90

Color

Color
2700 K
3000 K
4000 K

Dimming type

Dimming type

Finish

Finish

Reflector

Reflector

IP Rating

IP Rating
20-IP20

Accessory

Accessory

Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Specification
IES
DWG
manual
Favorite

Model No: 3111209-05159027; 3111209-05159030; 3111209-05159040; 3111209-05269027; 3111209-05269030; 3111209-05269040; 3111209-05369027; 3111209-05369030; 3111209-05369040; 3111209-05549027; 3111209-05549030; 3111209-05549040; 3111209-07159027; 3111209-07159030; 3111209-07159040; 3111209-07269027; 3111209-07269030; 3111209-07269040; 3111209-07369027; 3111209-07369030; 3111209-07369040; 3111209-07549027; 3111209-07549030; 3111209-07549040; 3511509-05A19027; 3511509-05A19030; 3511509-05A19040; 3511509-05A29027; 3511509-05A29030; 3511509-05A29040; 3511509-05A39027; 3511509-05A39030; 3511509-05A39040; 3511509-08A19027; 3511509-08A19030; 3511509-08A19040; 3511509-08A29027; 3511509-08A29030; 3511509-08A29040; 3511509-08A39027; 3511509-08A39030; 3511509-08A39040; 3511509-10A19027; 3511509-10A19030; 3511509-10A19040; 3511509-12A29027; 3511509-12A29030; 3511509-12A29040; 3511509-12A39027; 3511509-12A39030; 3511509-12A39040

Luminous Flux (LM)

Power (W): 5 W; 5 W; 5 W; 5 W; 5 W; 5 W; 5 W; 5 W; 5 W; 5 W; 5 W; 5 W; 7 W; 7 W; 7 W; 7 W; 7 W; 7 W; 7 W; 7 W; 7 W; 7 W; 7 W; 7 W; 5 W; 5 W; 5 W; 5 W; 5 W; 5 W; 5 W; 5 W; 5 W; 8 W; 8 W; 8 W; 8 W; 8 W; 8 W; 8 W; 8 W; 8 W; 10 W; 10 W; 10 W; 12 W; 12 W; 12 W; 12 W; 12 W; 12 W

Beam Angle: 15°; 15°; 15°; 26°; 26°; 26°; 36°; 36°; 36°; 54°; 54°; 54°; 15°; 15°; 15°; 26°; 26°; 26°; 36°; 36°; 36°; 54°; 54°; 54°; 15x53°; 15x53°; 15x53°; 22x51°; 22x51°; 22x51°; 30x50°; 30x50°; 30x50°; 15x53°; 15x53°; 15x53°; 22x51°; 22x51°; 22x51°; 30x50°; 30x50°; 30x50°; 15x53°; 15x53°; 15x53°; 22x51°; 22x51°; 22x51°; 30x50°; 30x50°; 30x50°

CRI: Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90

Color: 2700 K; 3000 K; 4000 K; 2700 K; 3000 K; 4000 K; 2700 K; 3000 K; 4000 K; 2700 K; 3000 K; 4000 K; 2700 K; 3000 K; 4000 K; 2700 K; 3000 K; 4000 K; 2700 K; 3000 K; 4000 K; 2700 K; 3000 K; 4000 K; 2700 K; 3000 K; 4000 K; 2700 K; 3000 K; 4000 K; 2700 K; 3000 K; 4000 K; 2700 K; 3000 K; 4000 K; 2700 K; 3000 K; 4000 K; 2700 K; 3000 K; 4000 K; 2700 K; 3000 K; 4000 K; 2700 K; 3000 K; 4000 K; 2700 K; 3000 K; 4000 K
