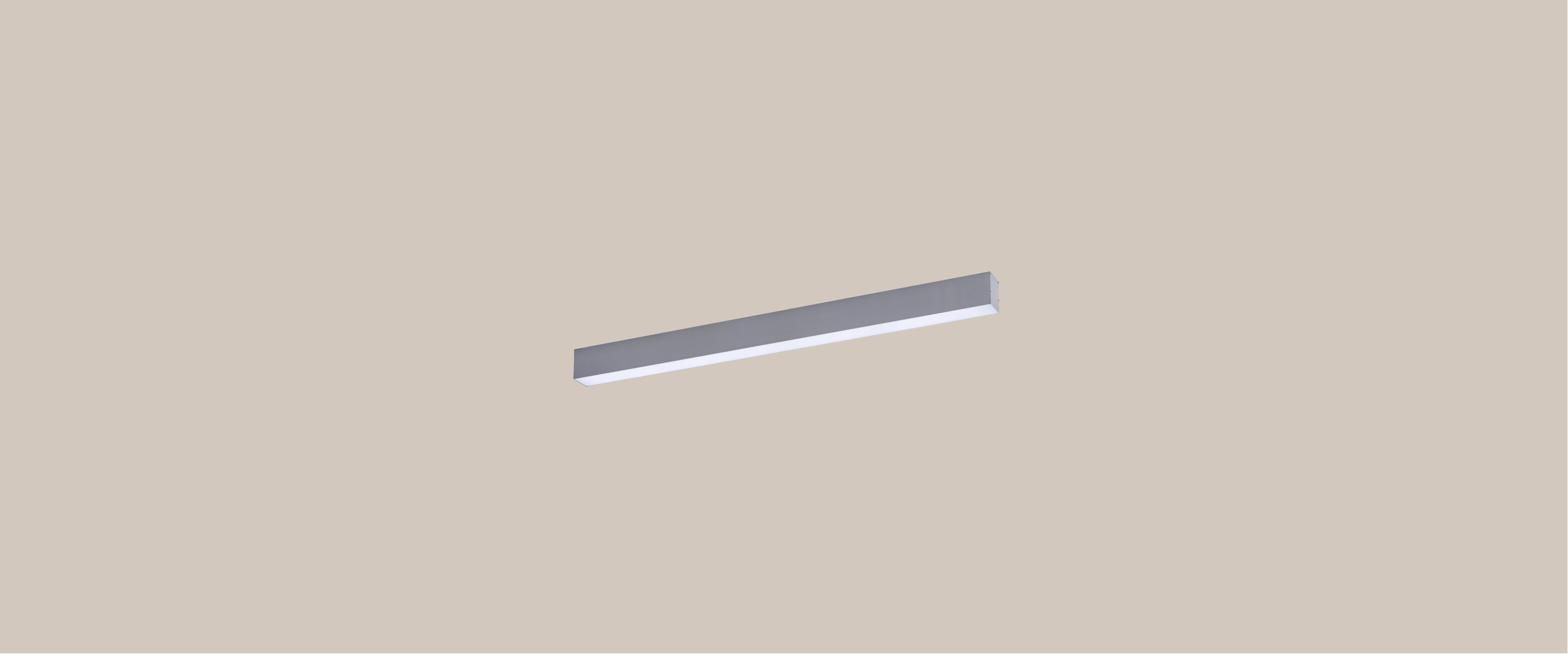

LINA-H 5070

Surfaced-mounted Linear Light

LINA-H 5070

Lighting Effects

Products Specification:
Type:Surfaced-mounted Linear Light
Cut-Out:/
Power:20W 30W
Beam Angle:110D
CCT:3000K 4000K
Weight:1.55kg
Heat-Sink:Tensile aluminium
Surface-Treatment:Anodising/Powder Spraying

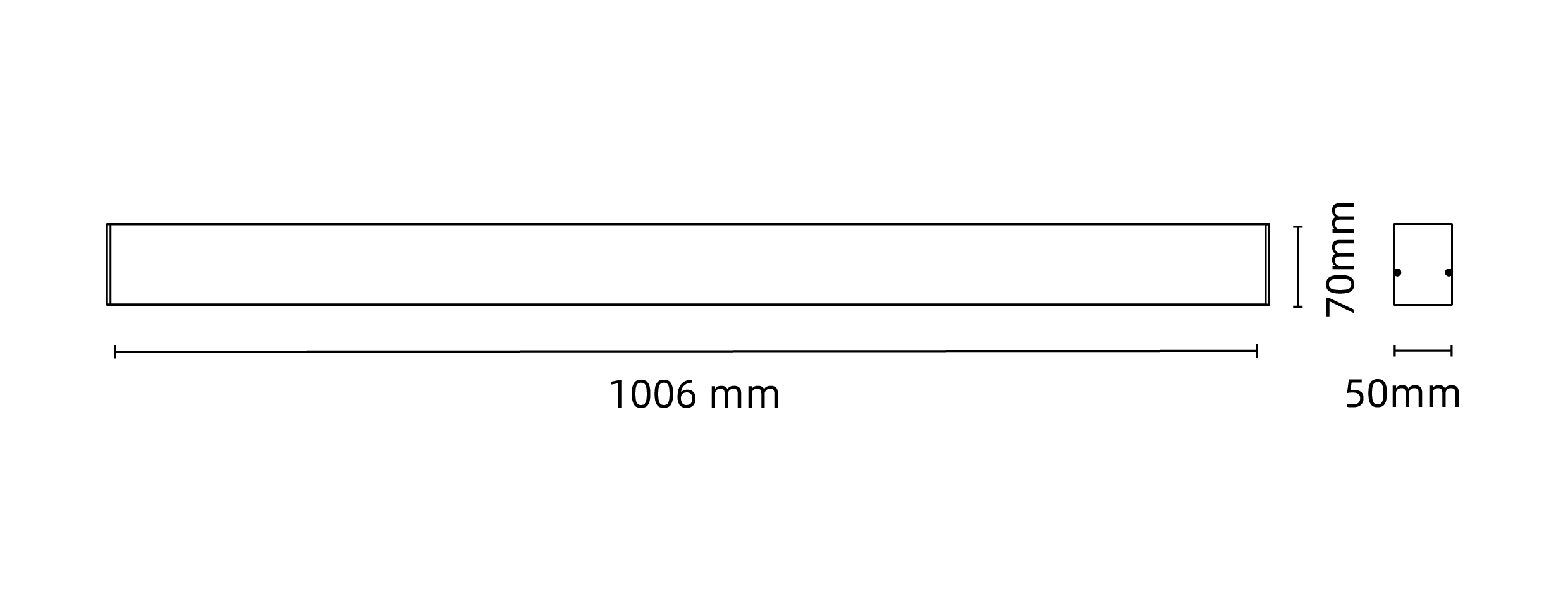

Line Drawing:
General Features:

Accessories :
Reflector Color:
Frame Color:

Select your Model No:

*Please log in before selecting your Model No

Power(W)
  • Power(W)
  • 20W
  • 30W
Beam Angle
  • Beam Angle
  • 110°
CRI
  • CRI
  • Ra>90
Color
  • Color
  • 3000K
  • 4000K
Dimming type
  • Dimming type
  • 1-Non Dim
Finish
  • Finish
  • Grey
  • Black
  • White
Reflector
  • Reflector
  • N/A
IP Rating
  • IP Rating
  • 20-IP20
Accessory
  • Accessory
  • N/A
  • Model No

  • Luminaire lumen(LM)

  • Power (W)

  • Beam Angle

  • CRI

  • Color

  • Specification

  • IES

  • manual

  • Favorite

Model No

LS00904-30A19040

LS00904-30A19030

LS00904-20A19040

LS00904-20A19030

Luminous Flux (LM)

3491LM

3316LM

2339LM

2222LM

Power (W)

30W

30W

20W

20W

Beam Angle

110°

110°

110°

110°

CRI

Ra>90

Ra>90

Ra>90

Ra>90

Color

4000K

3000K

4000K

3000K

Specification
IES
manual
Favorite
