LINNOU 55

Round Fixed Recessed Tunable White Downlight

LINNOU 55

Small & delicate great practicality

LINNOU 55

Small & delicate great practicality

Creative design with small, thin and deep style. LINNOU lamp's overall minimum size is only Ø 60 * H72mm. LINNOU is named for its compact shape, which saves the hole opening size when installing, effectively solves the problem that the big hole opening on the ceiling may destroy skyline integrity of the space. In addition, the delicate lamps can be lively coordinated with the reflector which has a variety of color. Designers can choose different reflector according to the comprehensive color of ceiling and space, to present both practicability and beauty.

Through the clever and ultra-thin design of adjustable lamps, and the minimum height of lamps is controlled in the range of 75 mm. In satisfying the inside height 80 mm under ceiling, it maximally saves the indoor space. And in view of the small size light's new spring design, under the condition of meet the polarization of 30 degrees, it can effectively solve the problem of installation requirements on thickness 8 ~ 20 mm of ceiling. Design innovation and practicality is presented incisively and vividly in the research and development and application of the LINNOU series downlight.

Lighting Effects

Products Specification:
Type:Round Fixed Recessed Tunable White Downlight
Cut-Out:ø 55 mm
Beam Angle:20D 26D 30D 36D 40D 54D
Power:5W 7W 10W
CCT:1800K-4000K 2700K-6000K
Weight:0.22kg
Heat-Sink:Aluminum
Surface-Treatment:painting+plating

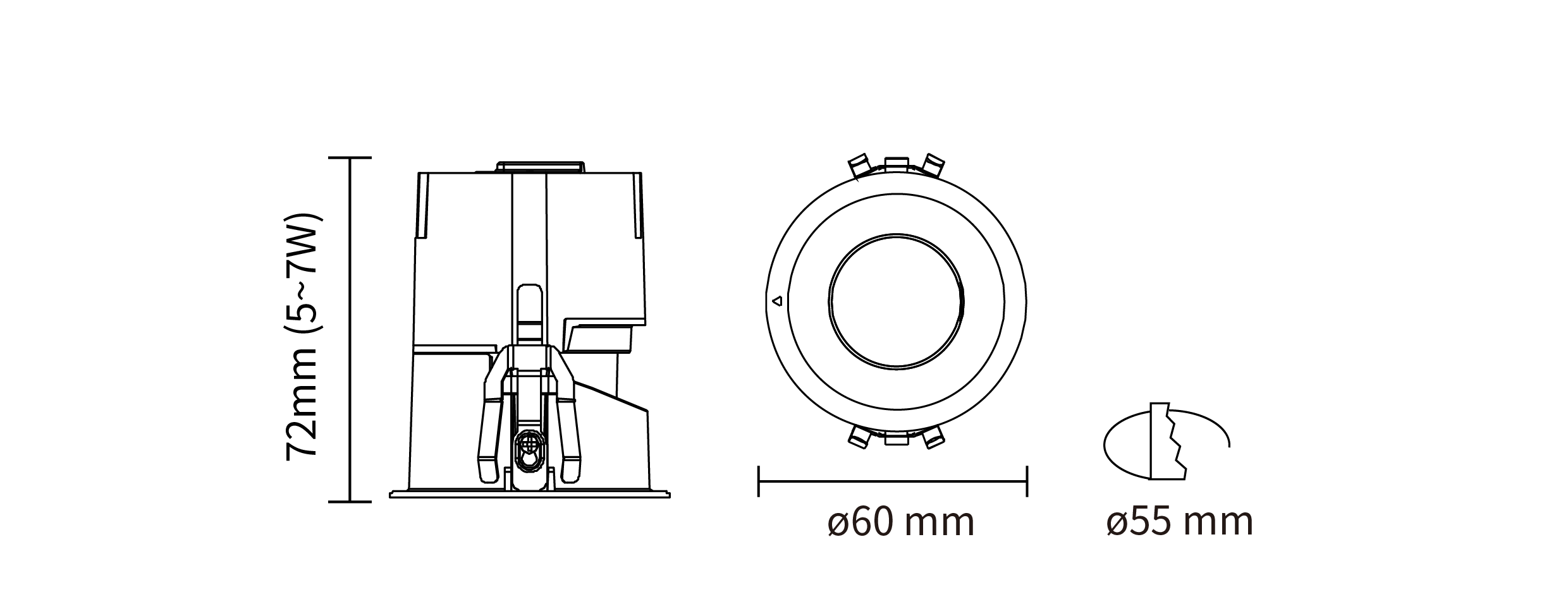

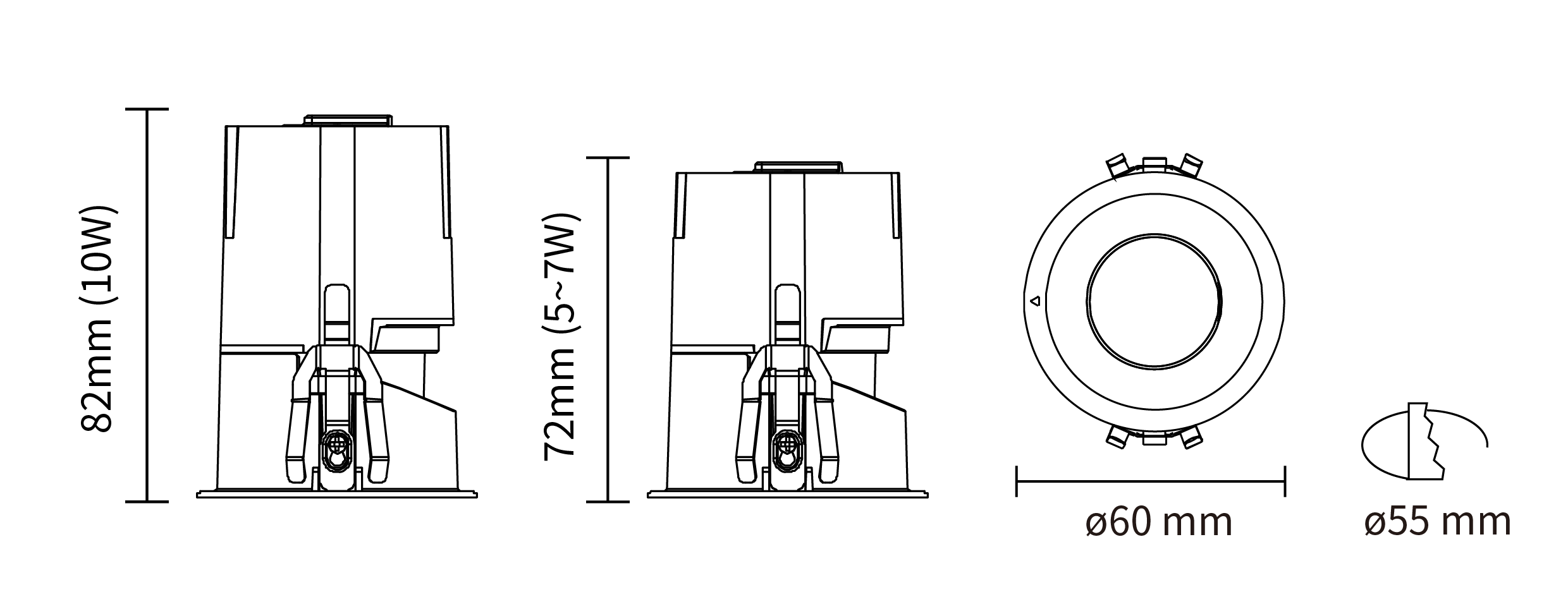

Line Drawing:
General Features:

Accessories :
Reflector Color:
Frame Color:

Select your Model No:

*Please log in before selecting your Model No

Power(W)
  • Power(W)
  • 5W
  • 7W
Beam Angle
  • Beam Angle
  • 22°
  • 26°
  • 30°
  • 36°
  • 40°
  • 54°
CRI
  • CRI
  • Ra>90
Color
  • Color
  • 1800K-4000K(e.g.1800K)
  • 1800K-4000K(e.g.4000K)
  • 2700K-6000K(e.g.2700K)
  • 2700K-6000K(e.g.6000K)
Dimming type
  • Dimming type
  • 3-0-10V dimming
  • 4-DALI dimming
Finish
  • Finish
  • White
  • Black
  • Mirror
Reflector
  • Reflector
  • White
  • Black
  • Mirror
IP Rating
  • IP Rating
  • 20-IP20
  • 44-IP44
Accessory
  • Accessory
  • Linear lens
  • Soft lens
  • Model No

  • Luminaire lumen(LM)

  • Power (W)

  • Beam Angle

  • CRI

  • Color

  • Specification

  • IES

  • DWG

  • manual

  • Favorite

Model No

DR00722-052690X0

DR00722-052690X1

DR00722-053690X0

DR00722-053690X1

DR00722-055490X0

DR00722-055490X1

DR00722-072690X0

DR00722-072690X1

DR00722-073690X0

DR00722-073690X1

DR00722-075490X0

DR00722-075490X1

DR00722-052290X0

DR00722-052290X1

DR00722-053090X0

DR00722-053090X1

DR00722-054090X0

DR00722-054090X1

DR00722-072290X0

DR00722-072290X1

DR00722-073090X0

DR00722-073090X1

DR00722-074090X0

DR00722-074090X1

Luminous Flux (LM)

121LM

212LM

167LM

287LM

199LM

253LM

139LM

242LM

190LM

331LM

287LM

362LM

163LM

191LM

128LM

163LM

216LM

273LM

228LM

273LM

183LM

234LM

312LM

393LM

Power (W)

5W

5W

5W

5W

5W

5W

7W

7W

7W

7W

7W

7W

5W

5W

5W

5W

5W

5W

7W

7W

7W

7W

7W

7W

Beam Angle

26°

26°

36°

36°

54°

54°

26°

26°

36°

36°

54°

54°

22°

22°

30°

30°

40°

40°

22°

22°

30°

30°

40°

40°

CRI

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Color

1800K-4000K(e.g.1800K)

1800K-4000K(e.g.4000K)

1800K-4000K(e.g.1800K)

1800K-4000K(e.g.4000K)

2700K-6000K(e.g.2700K)

2700K-6000K(e.g.6000K)

1800K-4000K(e.g.1800K)

1800K-4000K(e.g.4000K)

1800K-4000K(e.g.1800K)

1800K-4000K(e.g.4000K)

2700K-6000K(e.g.2700K)

2700K-6000K(e.g.6000K)

2700K-6000K(e.g.2700K)

2700K-6000K(e.g.6000K)

2700K-6000K(e.g.2700K)

2700K-6000K(e.g.6000K)

2700K-6000K(e.g.2700K)

2700K-6000K(e.g.6000K)

2700K-6000K(e.g.2700K)

2700K-6000K(e.g.6000K)

2700K-6000K(e.g.2700K)

2700K-6000K(e.g.6000K)

2700K-6000K(e.g.2700K)

2700K-6000K(e.g.6000K)

Specification
IES
DWG
manual
Favorite

Application
