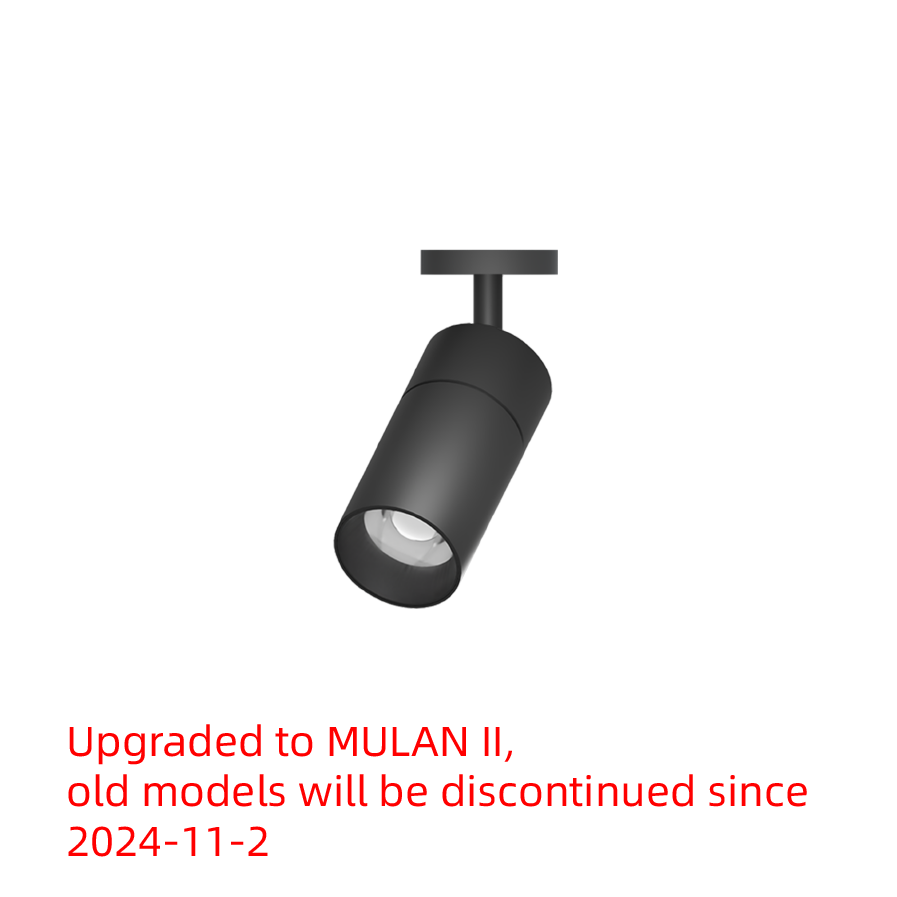

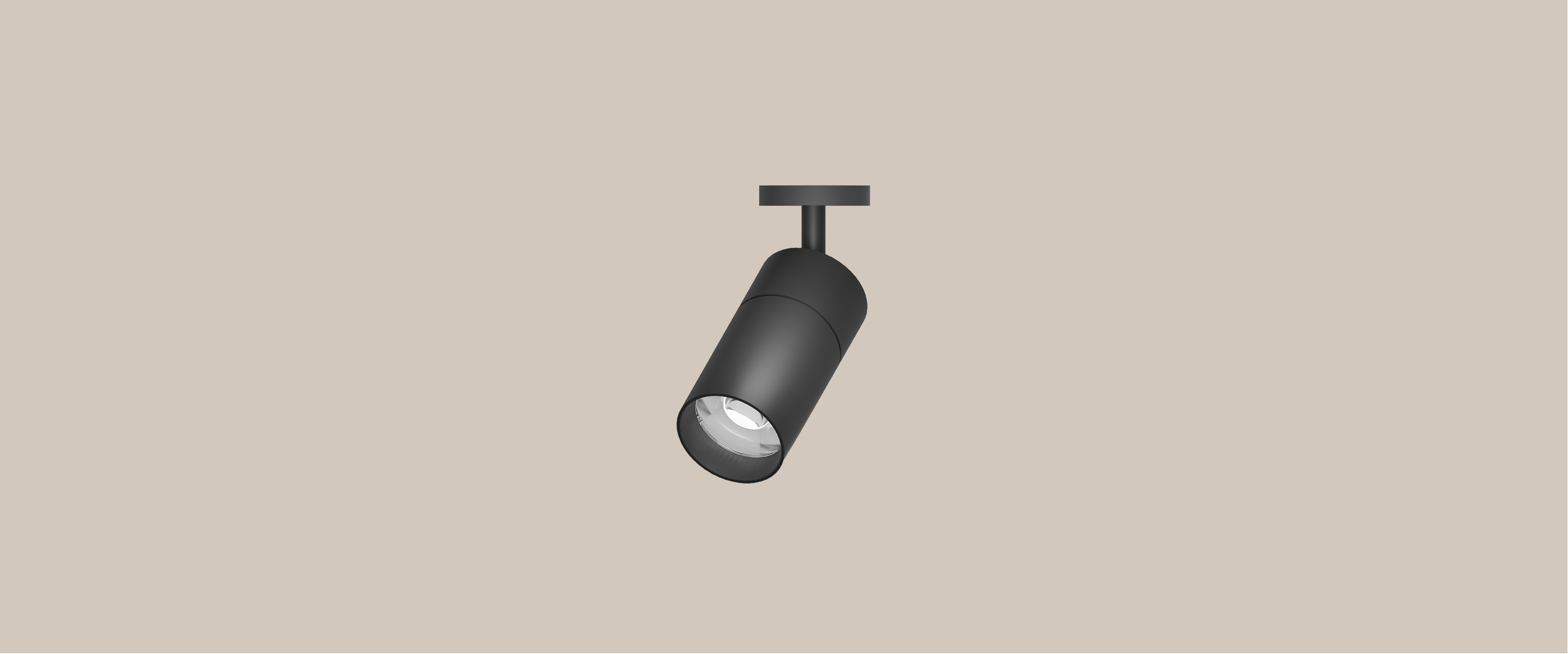

MULAN 90

Surface-mounted spotlight

MULAN 90

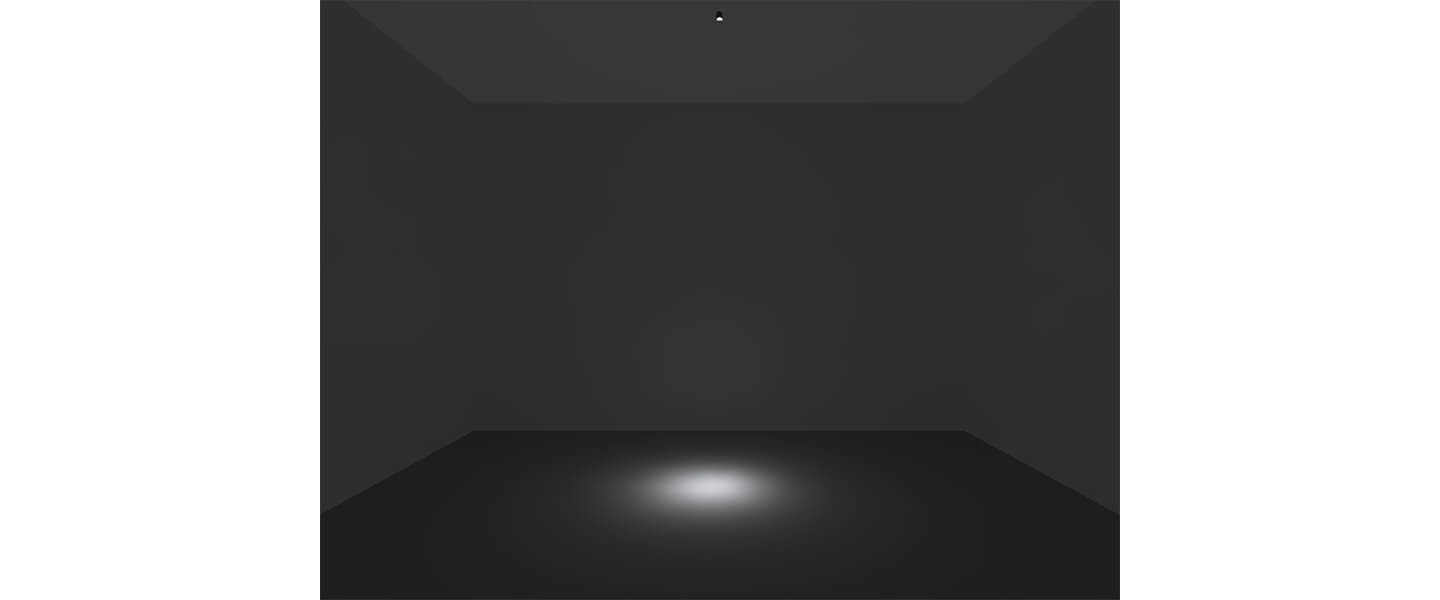

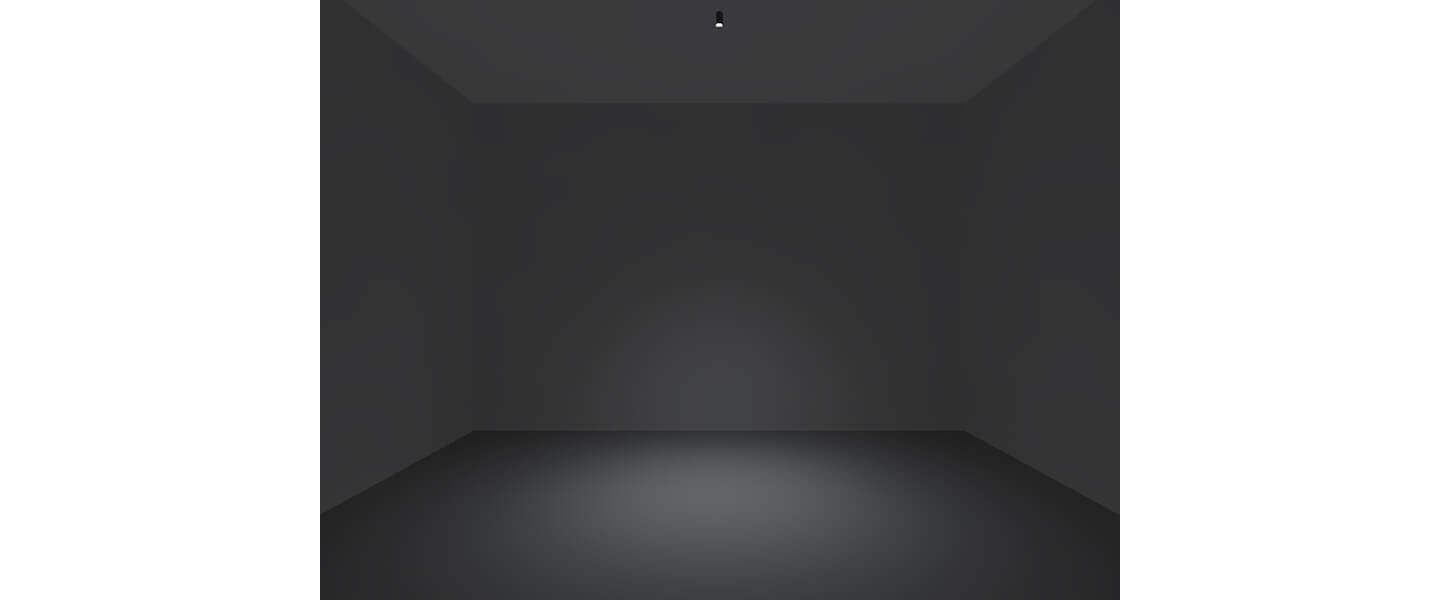

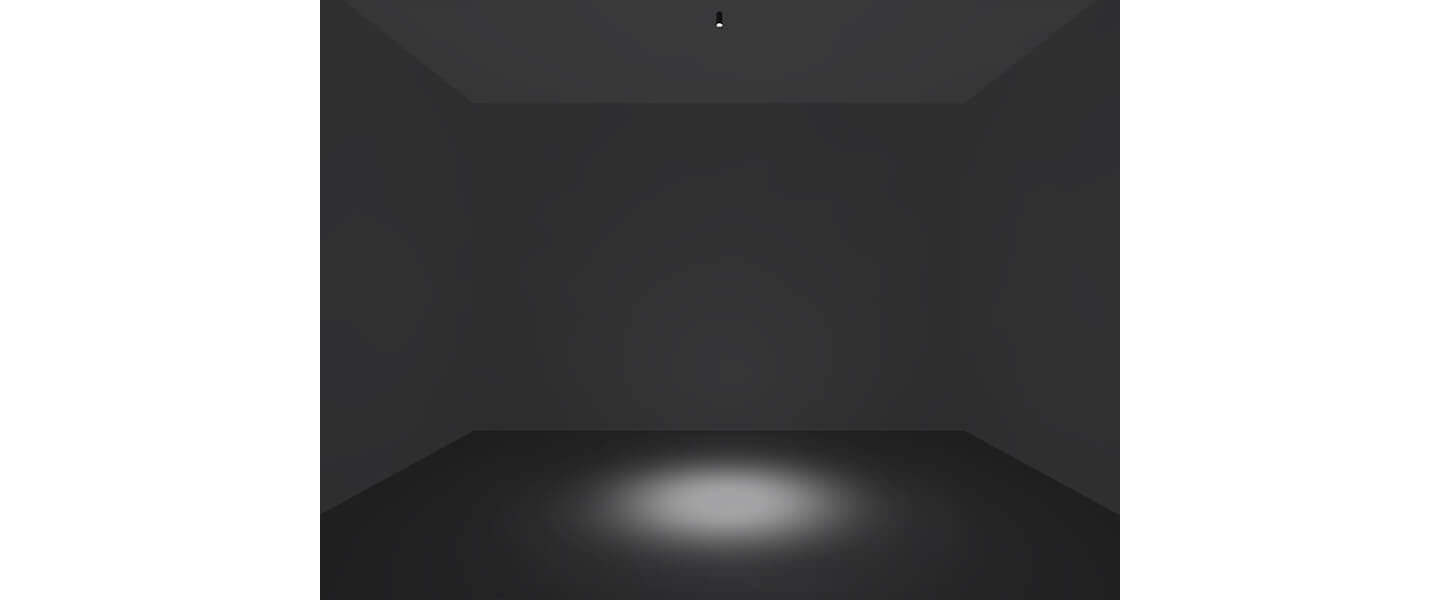

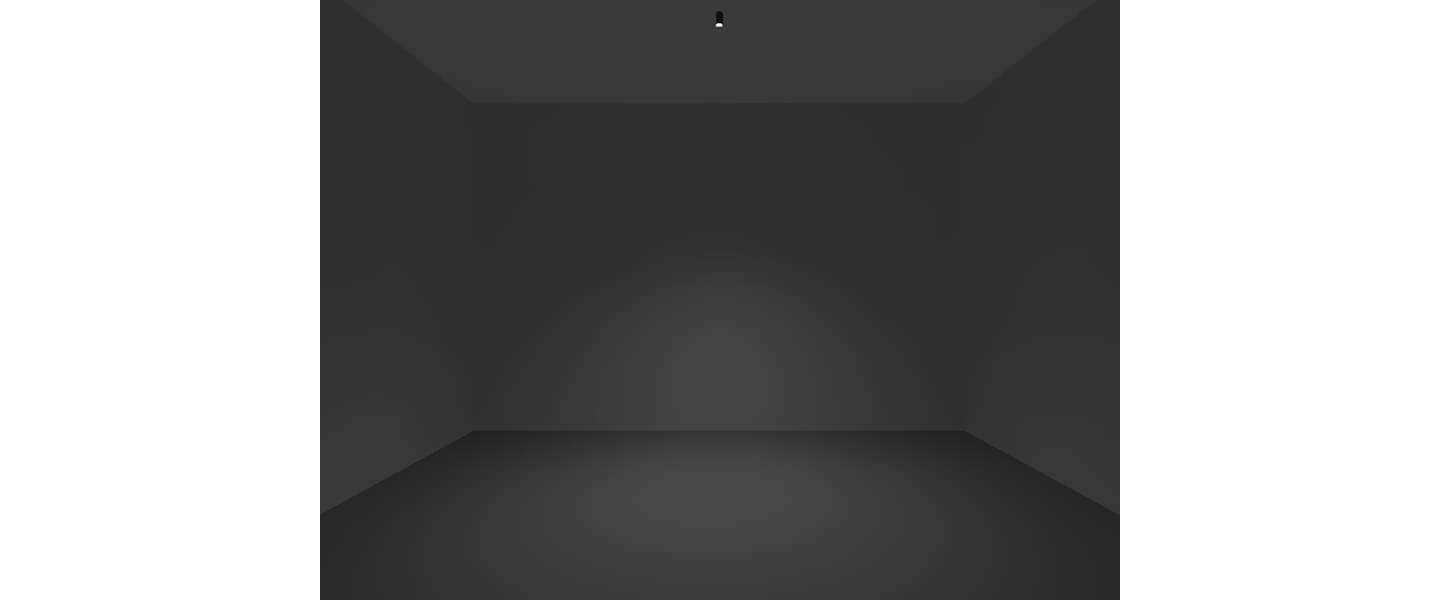

Lighting Effects

Products Specification:: Type:Surface-mounted spotlight; Power:30W 35W; Beam Angle:10D 15D 24D 36D 50D; CCT:2700K 3000K 4000K; Weight:1.03KG; Heat-Sink:Aluminum; Surface-Treatment:Plating; Remarks:The product could adopt a non-dimmable built-in driver or an outboard dimmable driver.

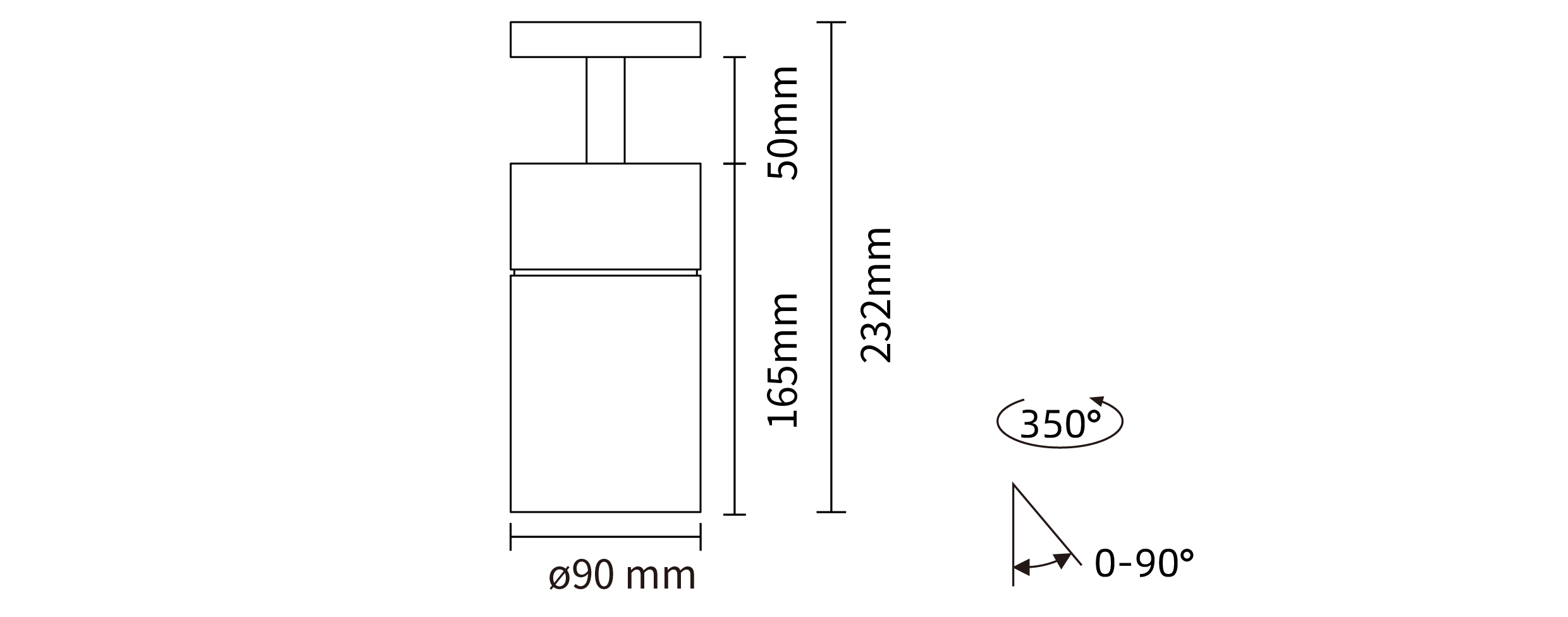

Line Drawing:

General Features:

Accessories :

Reflector Color:

Frame Color:

Select your Model No:
*Please log in before selecting your Model No

Power(W)

Power(W)
30W
35W

Beam Angle

Beam Angle
10°
15°
22°
32°
45°

CRI

CRI
Ra>90

Color

Color
2700K
3000K
4000K

Dimming type

Dimming type
1-Non Dim
2-Phase dimming
3-0-10V dimming
4-DALI dimming

Finish

Finish
01-White
02-Black

Reflector

Reflector
2-Black

IP Rating

IP Rating
20-IP20

Accessory

Accessory
1-Honeycomb louver
4-Linear lens
6-Soft lens

Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Specification
IES
DWG
manual
Favorite

Model No: TS00404-30109027; TS00404-30109030; TS00404-30109040; TS00404-30159027; TS00404-30159030; TS00404-30159040; TS00404-30229027; TS00404-30229030; TS00404-30229040; TS00404-30329027; TS00404-30329030; TS00404-30329040; TS00404-30459027; TS00404-30459030; TS00404-30459040; TS00404-35109027; TS00404-35109030; TS00404-35109040; TS00404-35159027; TS00404-35159030; TS00404-35159040; TS00404-35229027; TS00404-35229030; TS00404-35229040; TS00404-35329027; TS00404-35329030; TS00404-35329040; TS00404-35459027; TS00404-35459030; TS00404-35459040

Luminous Flux (LM): 1937LM; 2039LM; 2197LM; 2361LM; 2486LM; 2681LM; 2472LM; 2603LM; 2839LM; 2459LM; 2589LM; 2814LM; 2432LM; 2560LM; 2776LM; 2136LM; 2249LM; 2410LM; 2655LM; 2795LM; 2802LM; 2629LM; 2768LM; 2985LM; 2700LM; 2843LM; 2948LM; 2639LM; 2778LM; 2971LM

Power (W): 30W; 30W; 30W; 30W; 30W; 30W; 30W; 30W; 30W; 30W; 30W; 30W; 30W; 30W; 30W; 35W; 35W; 35W; 35W; 35W; 35W; 35W; 35W; 35W; 35W; 35W; 35W; 35W; 35W; 35W

Beam Angle: 10°; 10°; 10°; 15°; 15°; 15°; 22°; 22°; 22°; 32°; 32°; 32°; 45°; 45°; 45°; 10°; 10°; 10°; 15°; 15°; 15°; 22°; 22°; 22°; 32°; 32°; 32°; 45°; 45°; 45°

CRI: Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90

Color: 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K

Specification

IES

manual

Favorite

Application
