Home Products Indoor MULAN 73 - Surface-mounted spotlight

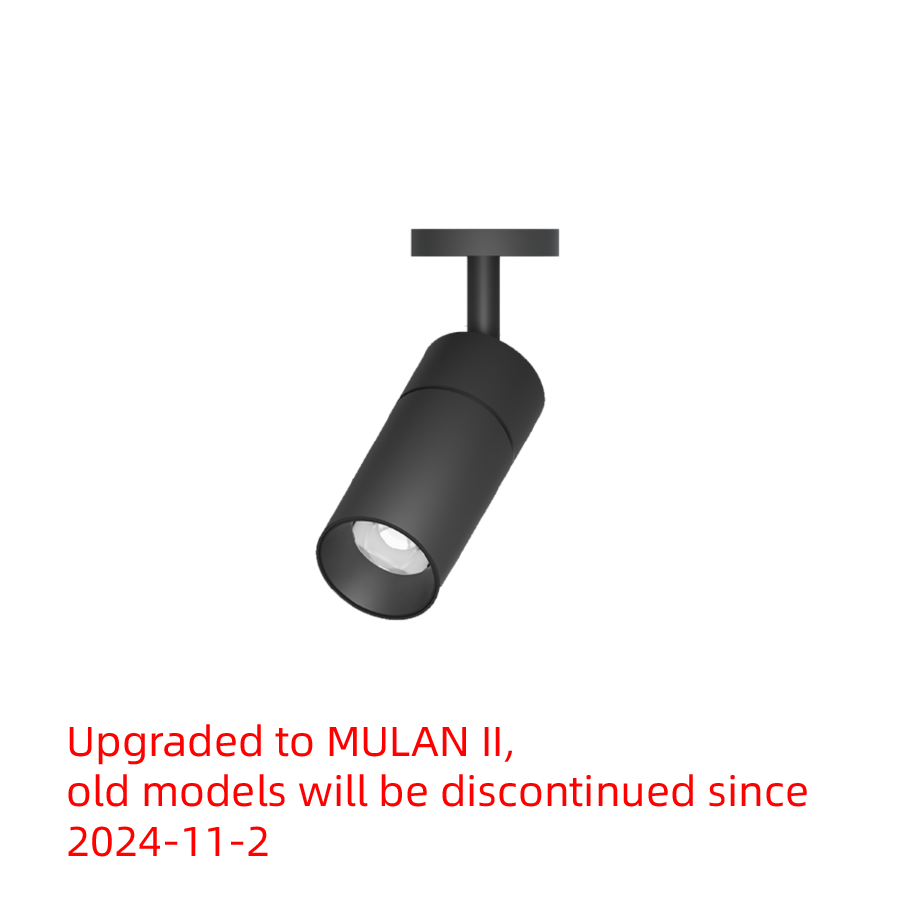

MULAN 73

Surface-mounted spotlight

MULAN 73

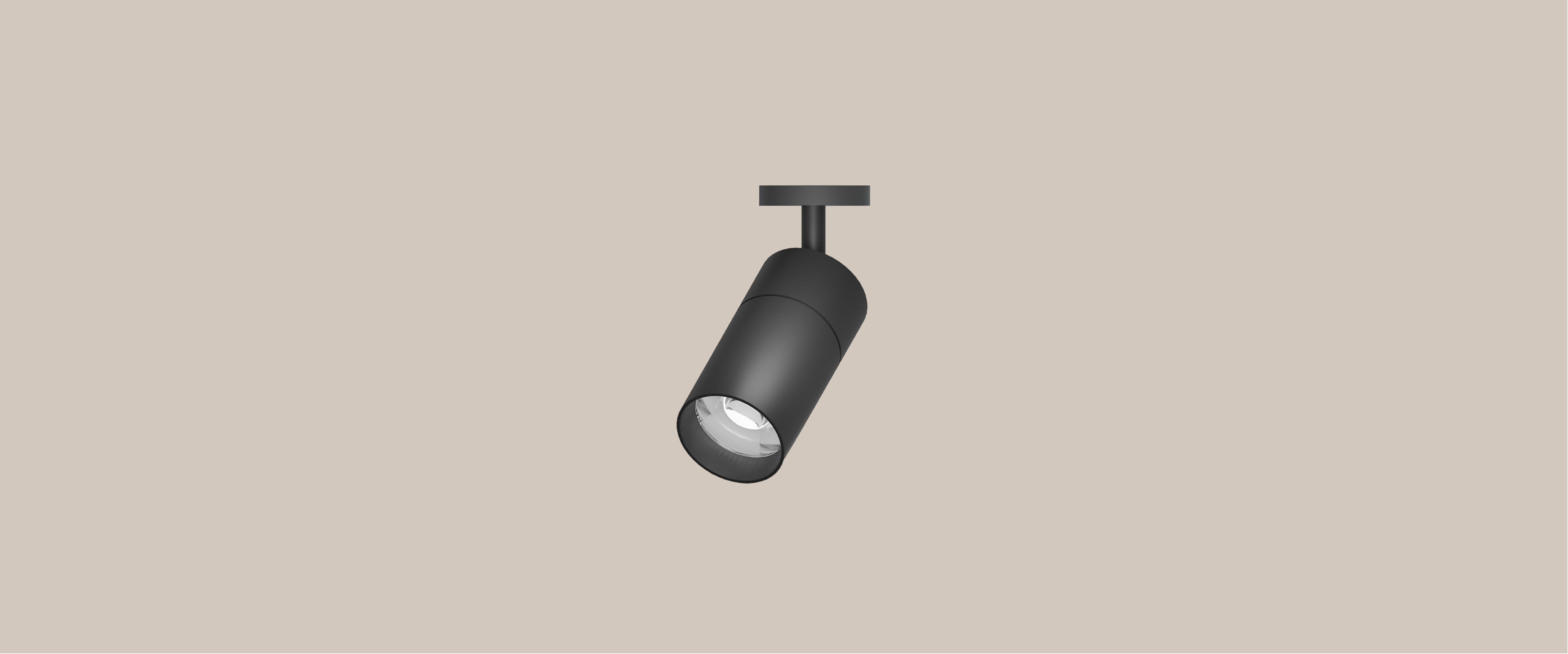

Lighting Effects

Products Specification:: Type:Surface-mounted spotlight; Power:20W 25W; Beam Angle:10D 15D 24D 36D 50D; CCT:2700K 3000K 4000K; Weight:0.63KG; Heat-Sink:Aluminum; Surface-Treatment:Plating; Remarks:The product could adopt a non-dimmable built-in driver or an outboard dimmable driver.

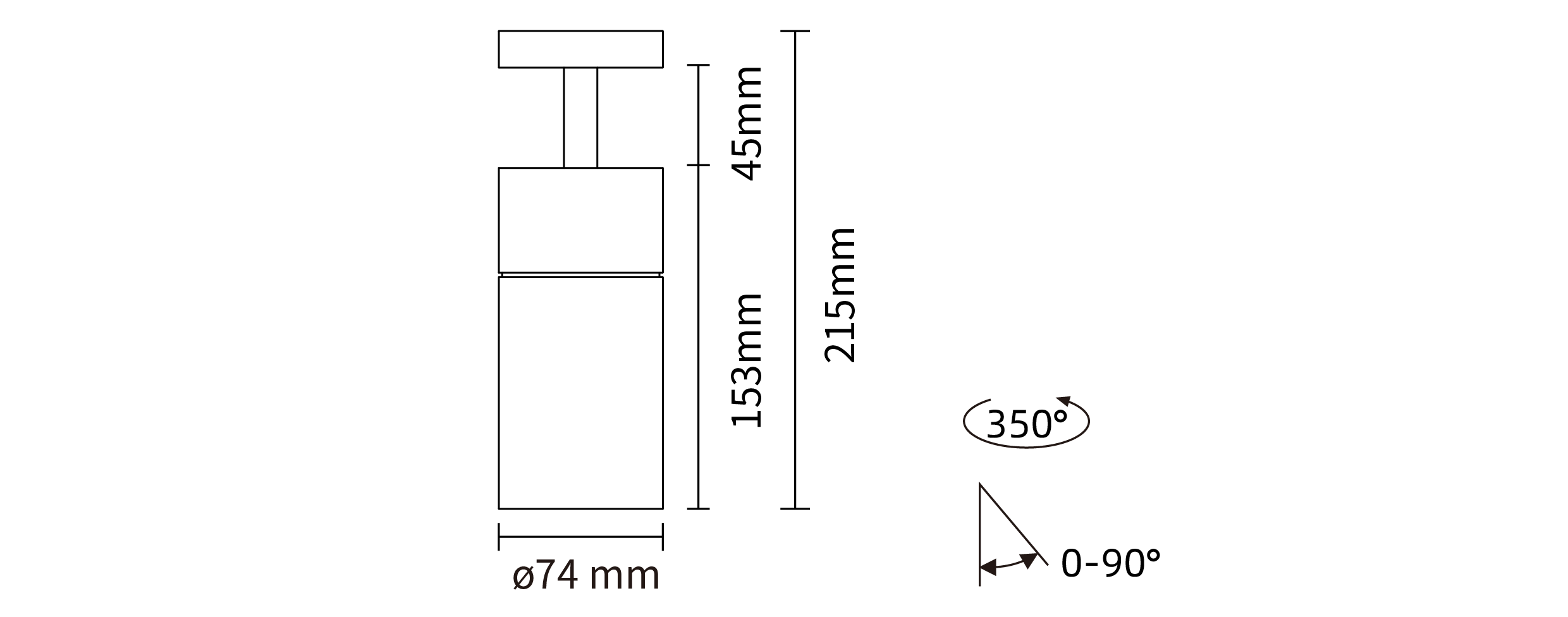

Line Drawing:

General Features:

Accessories :

Reflector Color:

Frame Color:

Select your Model No:
*Please log in before selecting your Model No

Power(W)

Power(W)
20W
25W

Beam Angle

Beam Angle
10°
15°
24°
36°
50°

CRI

CRI
Ra>90

Color

Color
2700K
3000K
4000K

Dimming type

Dimming type
1-Non Dim
2-Phase dimming
3-0-10V dimming
4-DALI dimming

Finish

Finish
01-White
02-Black

Reflector

Reflector
2-Black

IP Rating

IP Rating
20-IP20

Accessory

Accessory
1-Honeycomb louver
4-Linear lens
6-Soft lens

Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Specification
IES
DWG
manual
Favorite

Model No: TS00403-20109027; TS00403-20109030; TS00403-20109040; TS00403-20159027; TS00403-20159030; TS00403-20159040; TS00403-20249027; TS00403-20249030; TS00403-20249040; TS00403-20369027; TS00403-20369030; TS00403-20369040; TS00403-20509027; TS00403-20509030; TS00403-20509040; TS00403-25159027; TS00403-25159030; TS00403-25159040; TS00403-25249027; TS00403-25249030; TS00403-25249040; TS00403-25369027; TS00403-25369030; TS00403-25369040; TS00403-25509027; TS00403-25509030; TS00403-25509040

Luminous Flux (LM): 1343LM; 1414LM; 1466LM; 1665LM; 1753LM; 1812LM; 1706LM; 1796LM; 1802LM; 1686LM; 1775LM; 1891LM; 1607LM; 1692LM; 1803LM; 1840LM; 1937LM; 2192LM; 1928LM; 2030LM; 2144LM; 1945LM; 2048LM; 2242LM; 1856LM; 1954LM; 2096LM

Power (W): 20W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 20W; 25W; 25W; 25W; 25W; 25W; 25W; 25W; 25W; 25W; 25W; 25W; 25W

Beam Angle: 10°; 10°; 10°; 15°; 15°; 15°; 24°; 24°; 24°; 36°; 36°; 36°; 50°; 50°; 50°; 15°; 15°; 15°; 24°; 24°; 24°; 36°; 36°; 36°; 50°; 50°; 50°

CRI: Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90

Color: 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K

Specification

IES

manual

Favorite

Application
