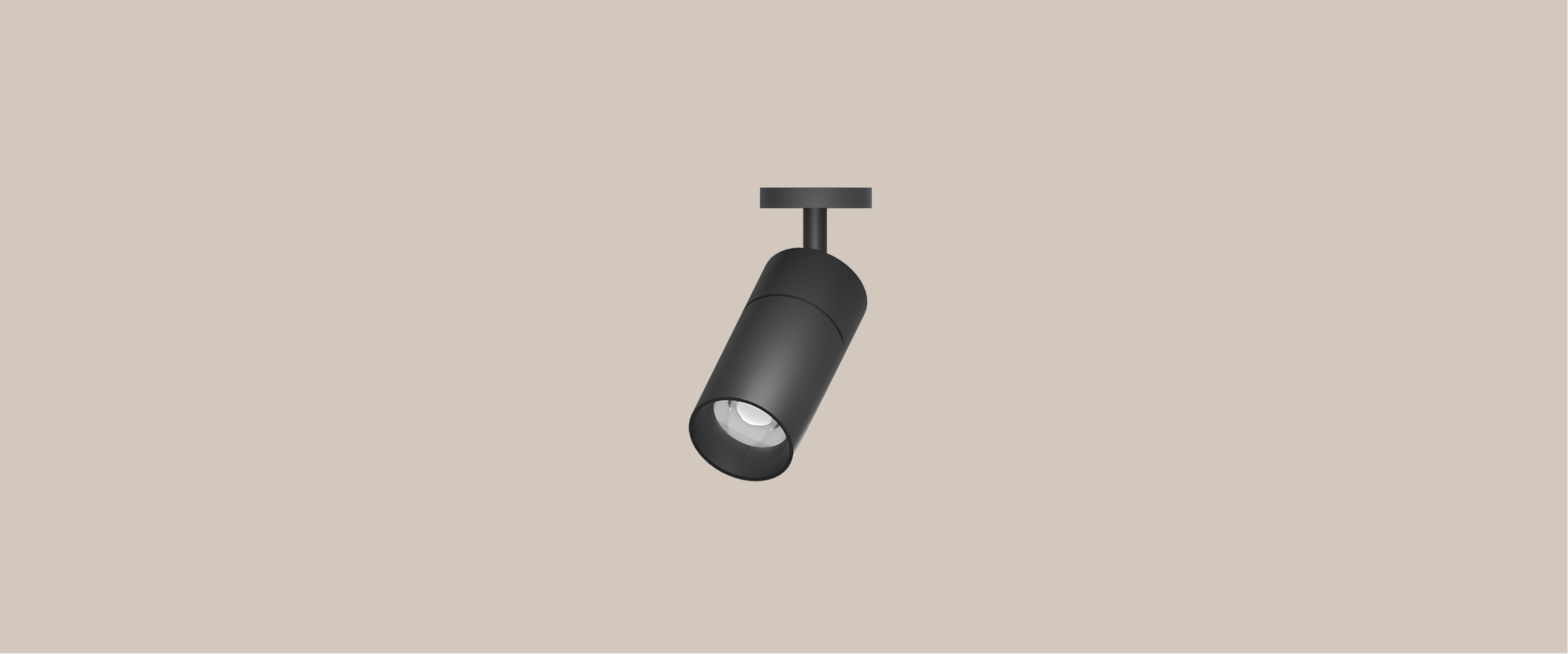

MULAN 62

Surface-mounted spotlight

MULAN 62

Lighting Effects

Products Specification:: Type:Surface-mounted spotlight; Power:10W 15W; Beam Angle:8D 15D 24D 36D 50D; CCT:2700K 3000K 4000K; Weight:0.39KG; Heat-Sink:Aluminum; Surface-Treatment:Plating; Remarks:The product could adopt a non-dimmable built-in driver or an outboard dimmable driver.

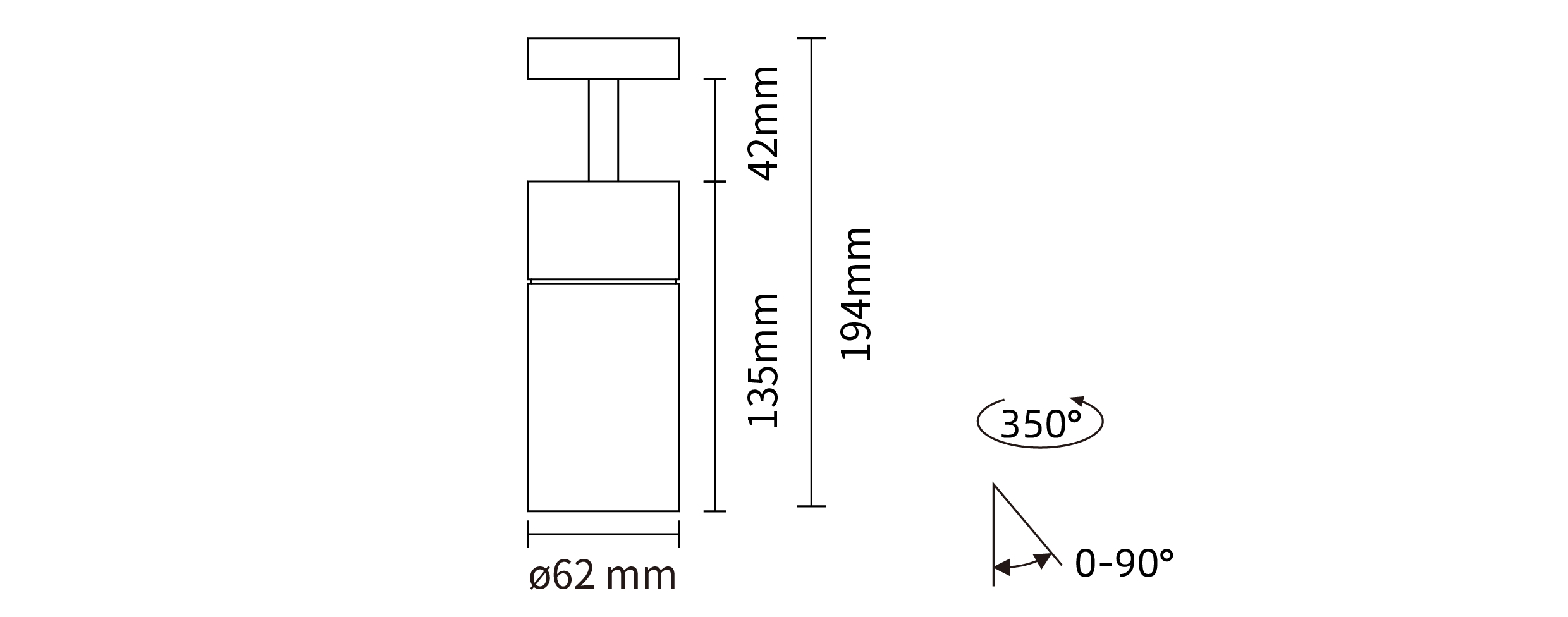

Line Drawing:

General Features:

Accessories :

Reflector Color:

Frame Color:

Select your Model No:
*Please log in before selecting your Model No

Power(W)

Power(W)
10W
15W

Beam Angle

Beam Angle
8°
15°
24°
36°
50°

CRI

CRI
Ra>90

Color

Color
2700K
3000K
4000K

Dimming type

Dimming type
1-Non Dim
2-Phase dimming
3-0-10V dimming
4-DALI dimming

Finish

Finish
01-White
02-Black

Reflector

Reflector
2-Black

IP Rating

IP Rating
20-IP20

Accessory

Accessory
1-Honeycomb louver
4-Linear lens
6-Soft lens

Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Specification
IES
DWG
manual
Favorite

Model No: TS00402-10089027; TS00402-10089030; TS00402-10089040; TS00402-10159027; TS00402-10159030; TS00402-10159040; TS00402-10249027; TS00402-10249030; TS00402-10249040; TS00402-10369027; TS00402-10369030; TS00402-10369040; TS00402-10509027; TS00402-10509030; TS00402-10509040; TS00402-15159027; TS00402-15159030; TS00402-15159040; TS00402-15249027; TS00402-15249030; TS00402-15249040; TS00402-15369027; TS00402-15369030; TS00402-15369040; TS00402-15509027; TS00402-15509030; TS00402-15509040

Luminous Flux (LM): 594LM; 626LM; 704LM; 769LM; 810LM; 885LM; 839LM; 884LM; 1006LM; 810LM; 853LM; 1003LM; 791LM; 833LM; 921LM; 1035LM; 1090LM; 1192LM; 1193LM; 1256LM; 1356LM; 1162LM; 1224LM; 1340LM; 1063LM; 1119LM; 1220LM

Power (W): 10W; 10W; 10W; 10W; 10W; 10W; 10W; 10W; 10W; 10W; 10W; 10W; 10W; 10W; 10W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W; 15W

Beam Angle: 8°; 8°; 8°; 15°; 15°; 15°; 24°; 24°; 24°; 36°; 36°; 36°; 50°; 50°; 50°; 15°; 15°; 15°; 24°; 24°; 24°; 36°; 36°; 36°; 50°; 50°; 50°

CRI: Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90

Color: 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K

Specification

IES

manual

Favorite

Application

Related Products

Recessed spotlight

Surface-mounted spotlight

Recessed spotlight

Surface-mounted spotlight

Recessed spotlight

Recessed spotlight

Surface-mounted spotlight

Recessed Adjustable Spotlight

Surface-mounted Spotlight

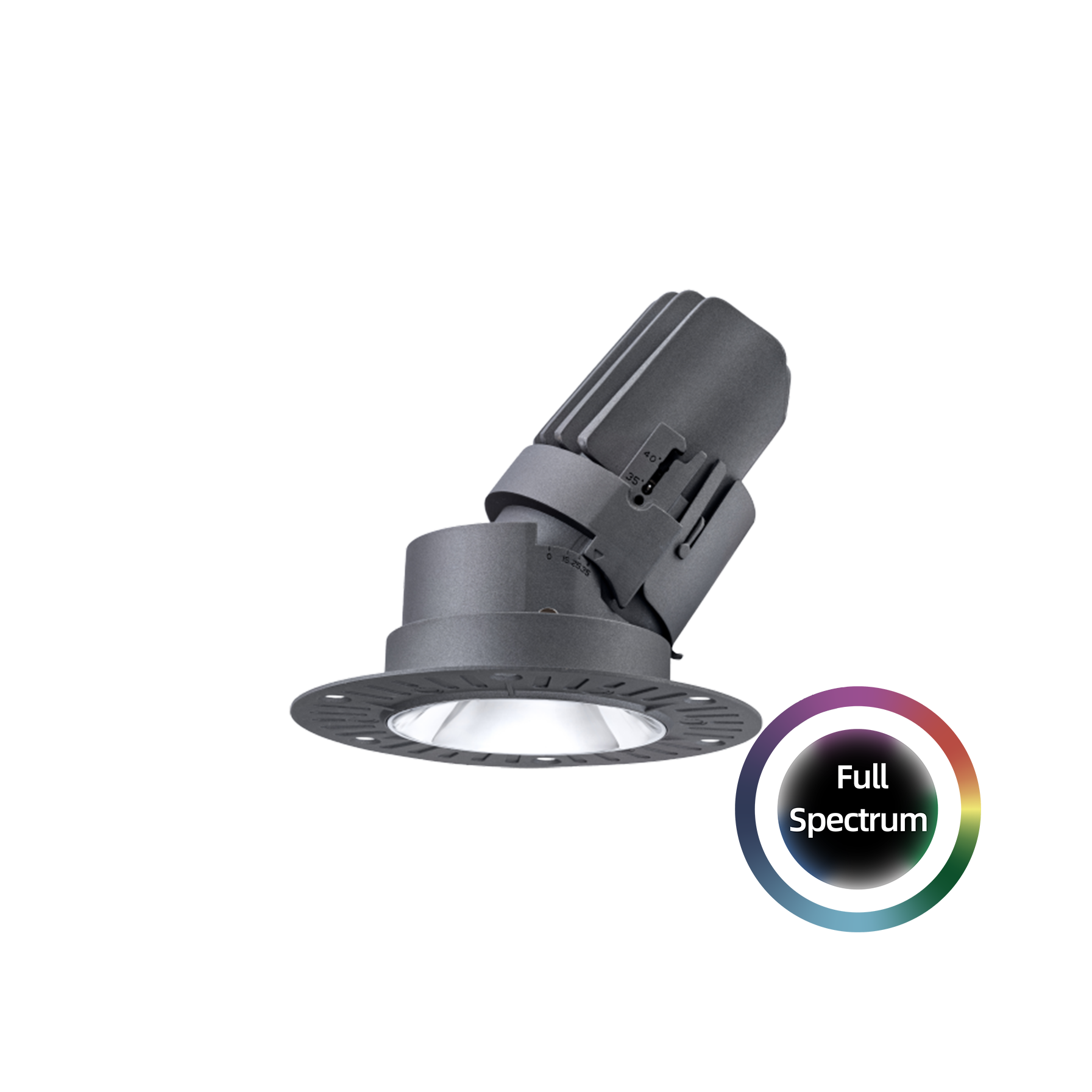

Round Adjustable Trimless Recessed Full Spectrum Downlight
