Home Products Indoor MULAN 45 - Surface-mounted spotlight

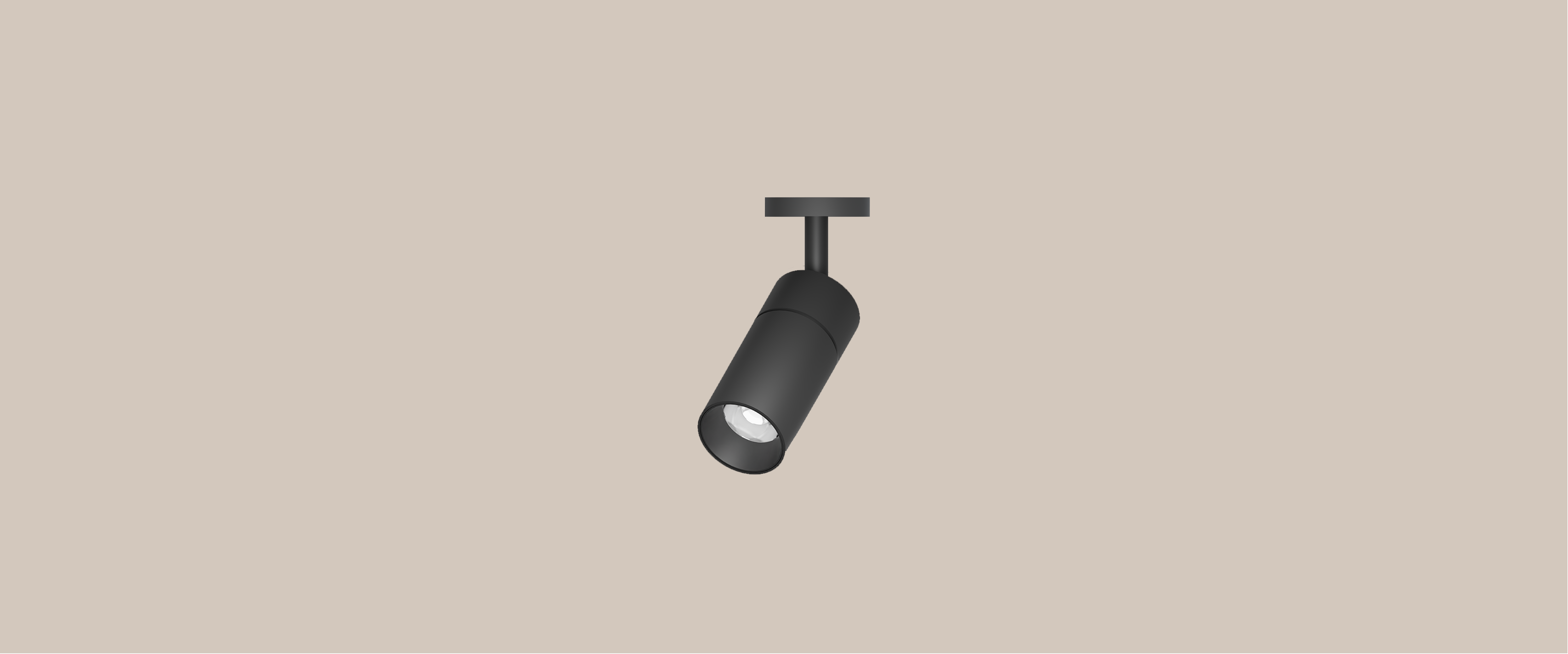

MULAN 45

Surface-mounted spotlight

MULAN 45

Lighting Effects

Products Specification:: Type:Surface-mounted spotlight; Power:7W 10W; Beam Angle:12D 15D 24D 36D 50D; CCT:2700K 3000K 4000K; Weight:0.22KG; Heat-Sink:Aluminum; Surface-Treatment:Plating; Remarks:The product could adopt a non-dimmable built-in driver or an outboard dimmable driver.

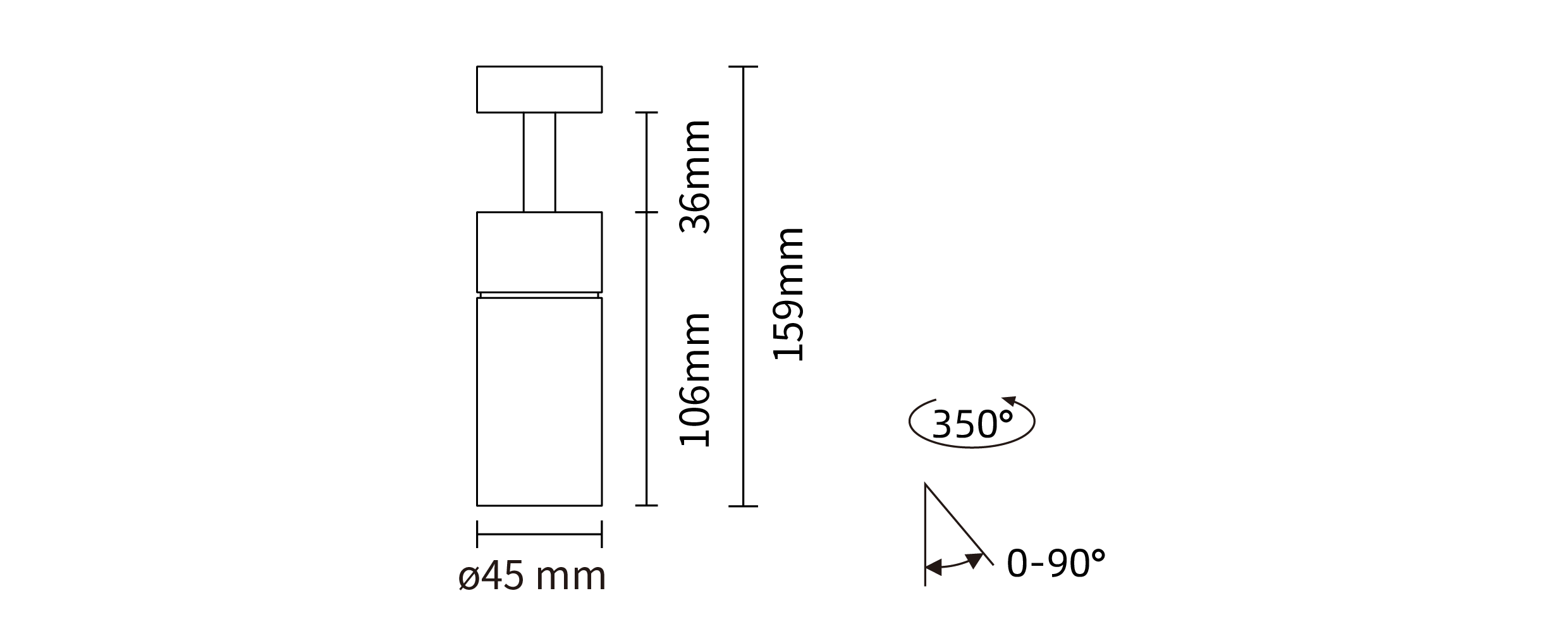

Line Drawing:

General Features:

Accessories :

Reflector Color:

Frame Color:

Select your Model No:
*Please log in before selecting your Model No

Power(W)

Power(W)
7W
10W

Beam Angle

Beam Angle
12°
15°
24°
36°
50°

CRI

CRI
Ra>90

Color

Color
2700K
3000K
4000K

Dimming type

Dimming type
1-Non Dim
2-Phase dimming
3-0-10V dimming
4-DALI dimming

Finish

Finish
01-White
02-Black

Reflector

Reflector
2-Black

IP Rating

IP Rating
20-IP20

Accessory

Accessory
1-Honeycomb louver
4-Linear lens
6-Soft lens

Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Specification
IES
DWG
manual
Favorite

Model No: TS00401-07129027; TS00401-07129030; TS00401-07129040; TS00401-07159027; TS00401-07159030; TS00401-07159040; TS00401-07249027; TS00401-07249030; TS00401-07249040; TS00401-07369027; TS00401-07369030; TS00401-07369040; TS00401-07509027; TS00401-07509030; TS00401-07509040; TS00401-10129027; TS00401-10129030; TS00401-10129040; TS00401-10159027; TS00401-10159030; TS00401-10159040; TS00401-10249027; TS00401-10249030; TS00401-10249040; TS00401-10369027; TS00401-10369030; TS00401-10369040; TS00401-10509027; TS00401-10509030; TS00401-10509040

Luminous Flux (LM): 308LM; 325LM; 343LM; 369LM; 389LM; 397LM; 559LM; 589LM; 640LM; 587LM; 618LM; 640LM; 494LM; 521LM; 567LM; 452LM; 476LM; 490LM; 581LM; 612LM; 629LM; 865LM; 911LM; 980LM; 735LM; 774LM; 848LM; 746LM; 786LM; 840LM

Power (W): 7W; 7W; 7W; 7W; 7W; 7W; 7W; 7W; 7W; 7W; 7W; 7W; 7W; 7W; 7W; 10W; 10W; 10W; 10W; 10W; 10W; 10W; 10W; 10W; 10W; 10W; 10W; 10W; 10W; 10W

Beam Angle: 12°; 12°; 12°; 15°; 15°; 15°; 24°; 24°; 24°; 36°; 36°; 36°; 50°; 50°; 50°; 12°; 12°; 12°; 15°; 15°; 15°; 24°; 24°; 24°; 36°; 36°; 36°; 50°; 50°; 50°

CRI: Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90

Color: 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K

Specification

IES

manual

Favorite

Application

Related Products

Recessed spotlight

Surface-mounted spotlight

Recessed spotlight

Surface-mounted spotlight

Recessed spotlight

Recessed Adjustable Spotlight

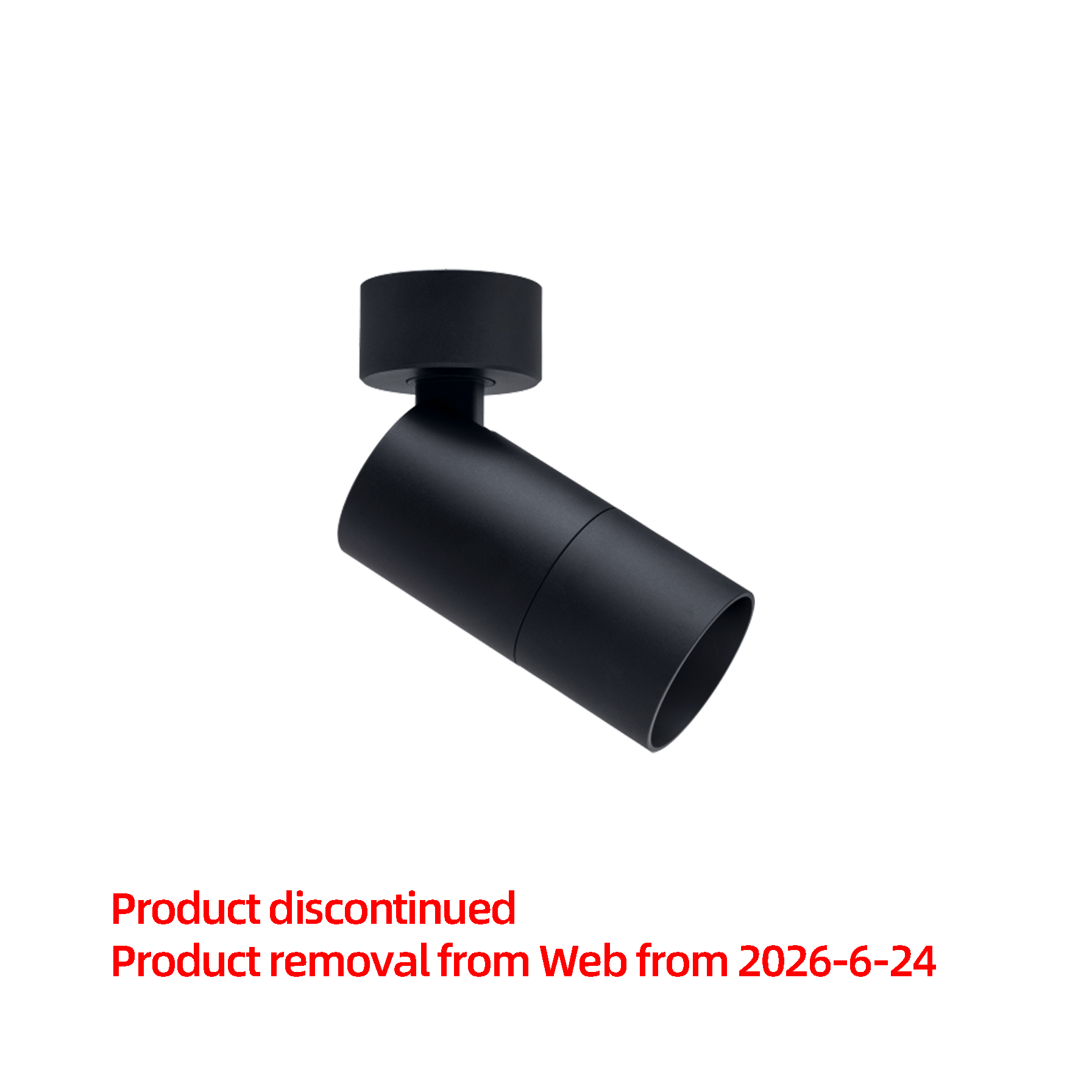

Surface-mounted Spotlight

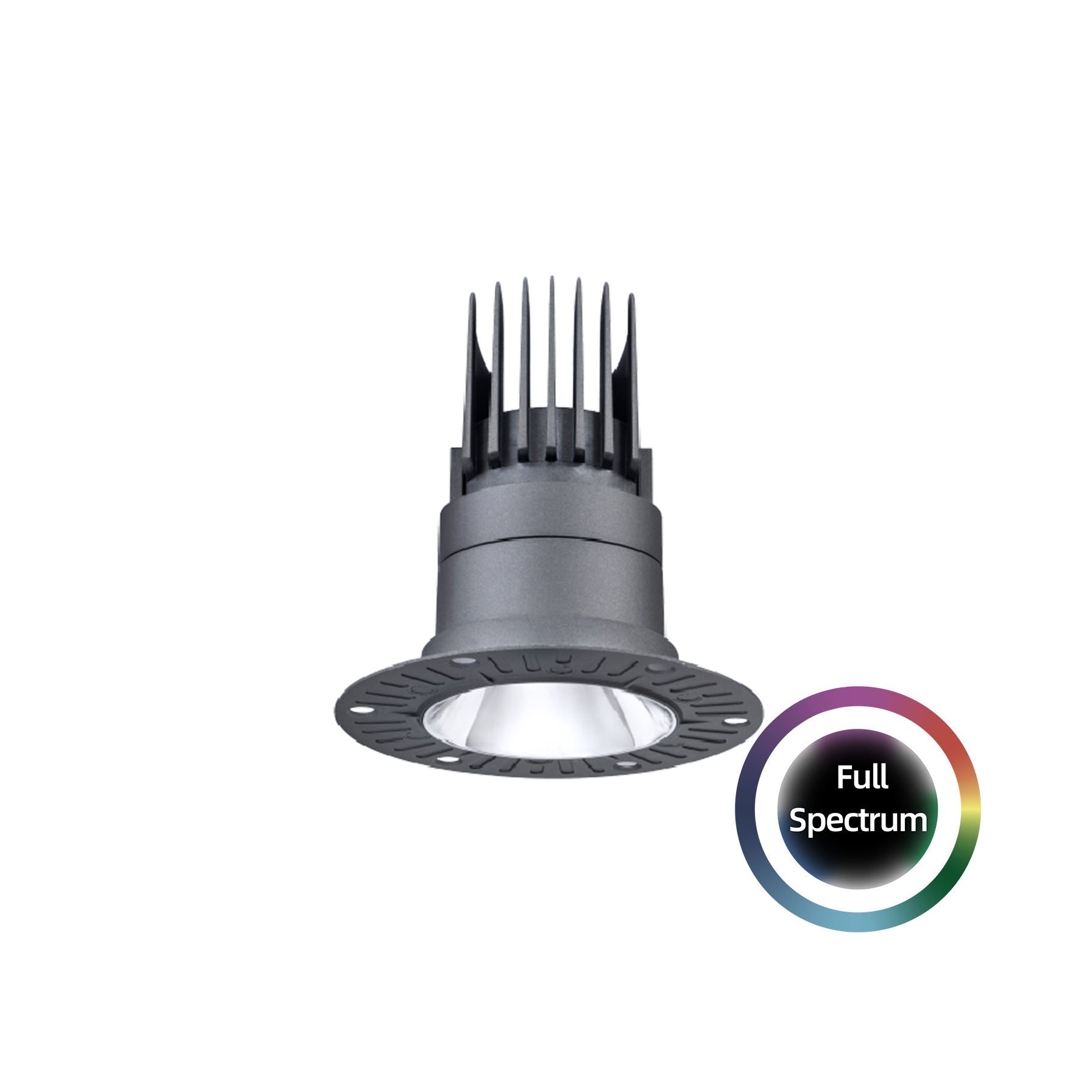

Round Adjustable Trimless Recessed Full Spectrum Downlight

Round Fixed Trimless Recessed Full Spectrum Downlight

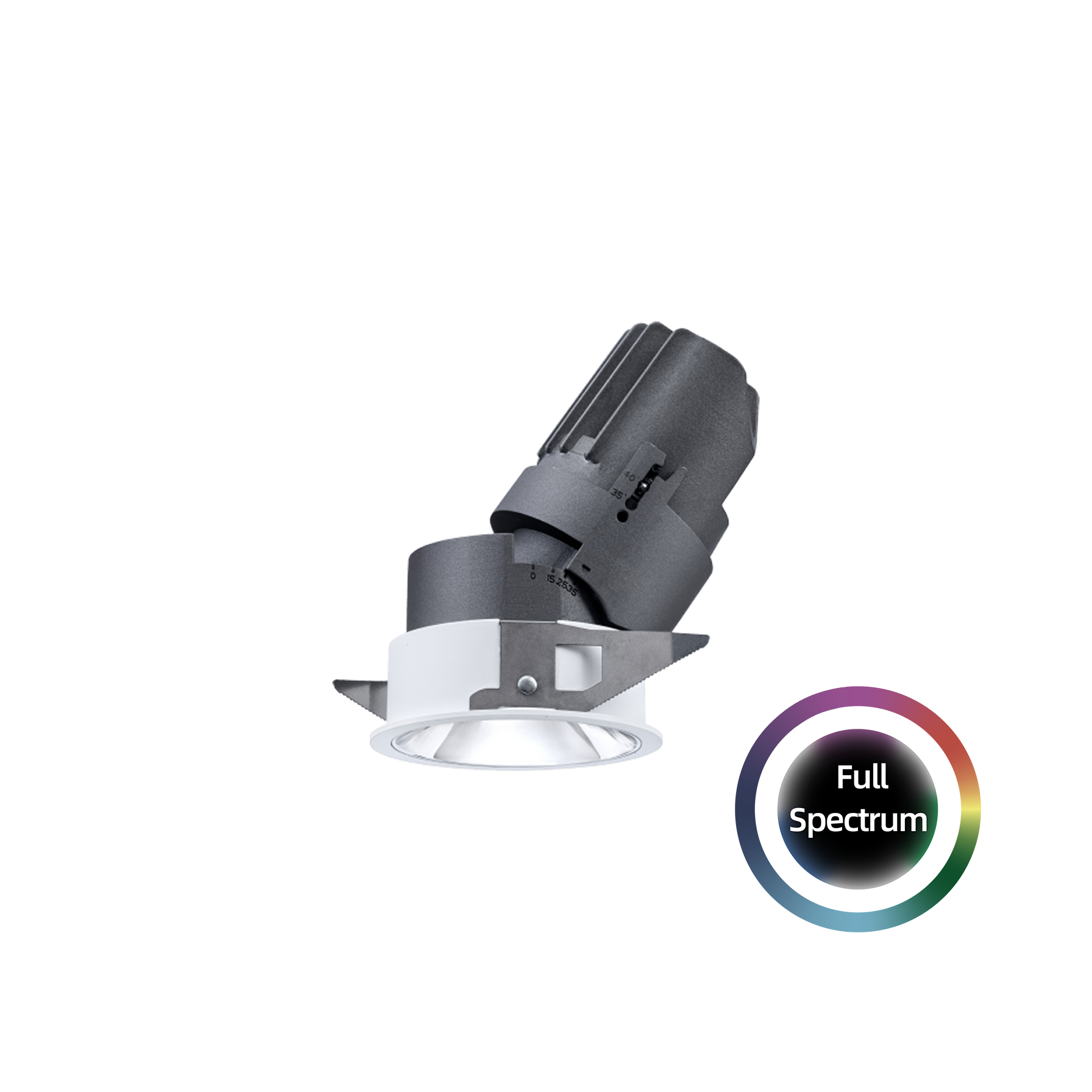

Round Adjustable Recessed Full Spectrum Downlight
