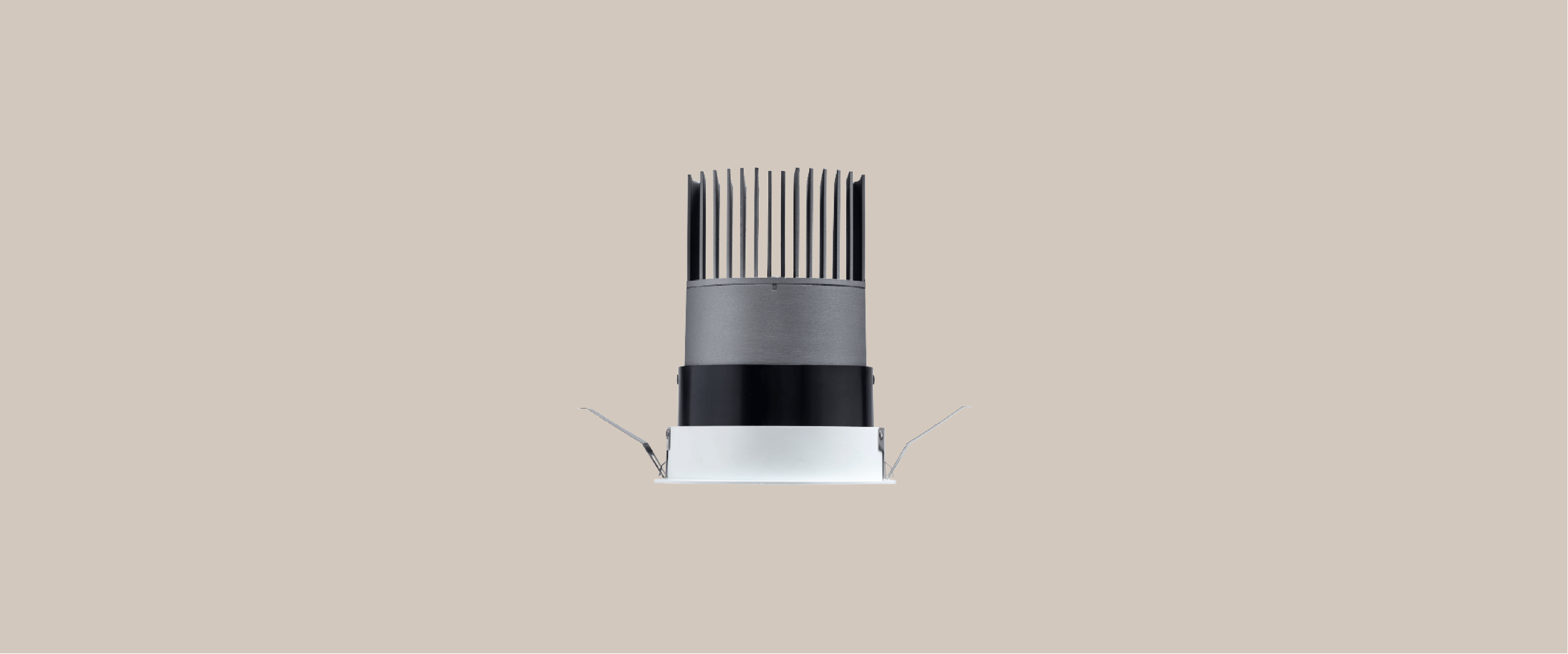

ALPS 125

Fixed Tunable white downlight

ALPS 125

Wisdom of european and chinese coopration.

As a part of space lighting, ambient lighting is a basic lighting, but the requirements are still very high. It need not only high efficiency and the comfortable low glare light, but also to achieve an even and soft high quality output of light under the circumstance of wide grading, which requests strictly to the integral design of lamps. Alps is a joint developed products between VF R&D team and European lighting experts, providing the best choice for ambient lighting.
The rapid installation screw of selfadaption to ceiling thickness protects the structure of ceiling and provides convenience for later maintenance. Alps has achieved good harmony and unity in terms of lamp efficiency, light quality, visual comfort, lighting installation and maintenance, and industrial design. It is a model for the new technology of basic lighting fixtures.

Lighting Effects

Products Specification:
Type:Fixed Tunable white downlight
Cut-Out:ø 125 mm
Beam Angle:28D 40D 50D
Power:30W 40W
Weight:0.95kg
CCT:Tunable White
Heat-Sink:Aluminum
Surface-Treatment:painting
Line Drawing:
General Features:

Accessories :
Reflector Color:

Frame Color:

Select your Model No:

*Please log in before selecting your Model No

Power(W)
  • Power(W)
  • 30 W
  • 40 W
Beam Angle
  • Beam Angle
  • 28°
  • 40°
  • 50°
CRI
  • CRI
  • Ra>90
Color
  • Color
  • 2700K-6000K(e.g.2700K)
  • 2700K-6000K(e.g.6000K)
Dimming type
  • Dimming type
  • 1-Non Dim
  • 2-Phase dimming
  • 3-0-10V dimming
  • 4-DALI dimming
Finish
  • Finish
  • 02-Black
  • 01-White
Reflector
  • Reflector
  • Mirror
  • Black
  • White
  • Black chromium plating
IP Rating
  • IP Rating
  • 20-IP20
Accessory
  • Accessory
  • 1-Honeycomb louver
  • 4-Linear lens
  • Model No

  • Luminaire lumen(LM)

  • Power (W)

  • Beam Angle

  • CRI

  • Color

  • Specification

  • IES

  • manual

  • Favorite

Model No

DR01123-302890X4

DR01123- 302890X4

DR01123-304090X4

DR01123- 304090X4

DR01123-305090X4

DR01123- 305090X4

DR01123-402890X4

DR01123- 402890X4

DR01123-404090X4

DR01123- 404090X4

DR01123-405090X4

DR01123- 405090X4

Luminous Flux (LM)

1569LM

1899LM

1445LM

1767LM

1426LM

1718LM

1880LM

2336LM

1794LM

2166LM

1755LM

2091LM

Power (W)

30 W

30 W

30 W

30 W

30 W

30 W

40 W

40 W

40 W

40 W

40 W

40 W

Beam Angle

28°

28°

40°

40°

50°

50°

28°

28°

40°

40°

50°

50°

CRI

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Color

2700K-6000K(e.g.2700K)

2700K-6000K(e.g.6000K)

2700K-6000K(e.g.2700K)

2700K-6000K(e.g.6000K)

2700K-6000K(e.g.2700K)

2700K-6000K(e.g.6000K)

2700K-6000K(e.g.2700K)

2700K-6000K(e.g.6000K)

2700K-6000K(e.g.2700K)

2700K-6000K(e.g.6000K)

2700K-6000K(e.g.2700K)

2700K-6000K(e.g.6000K)
