GLEAM 50

Recessed Round Pin Hole Induction Version Foot Light

GLEAM 50

Gleams of light at night.


Lighting Effects

Products Specification:
Type:Recessed Round Pin Hole Induction Version Foot Light
Cut-Out:ø 50 mm
Power:1W 3W
CCT:2700K 3000K 4000K
Weight:0.08kg
Heat-Sink:Die-casting Aluminum
Surface-Treatment:Plating
Remarks:ø55 mm for fixture with embedded parts

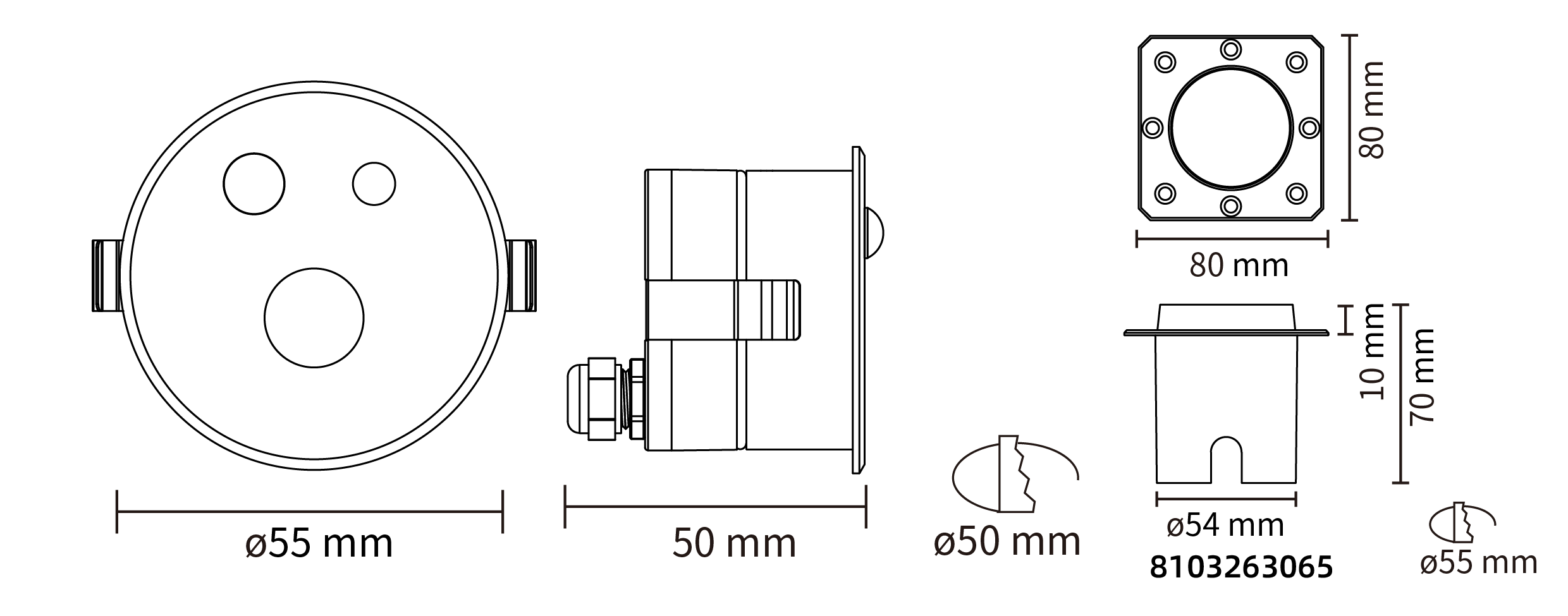

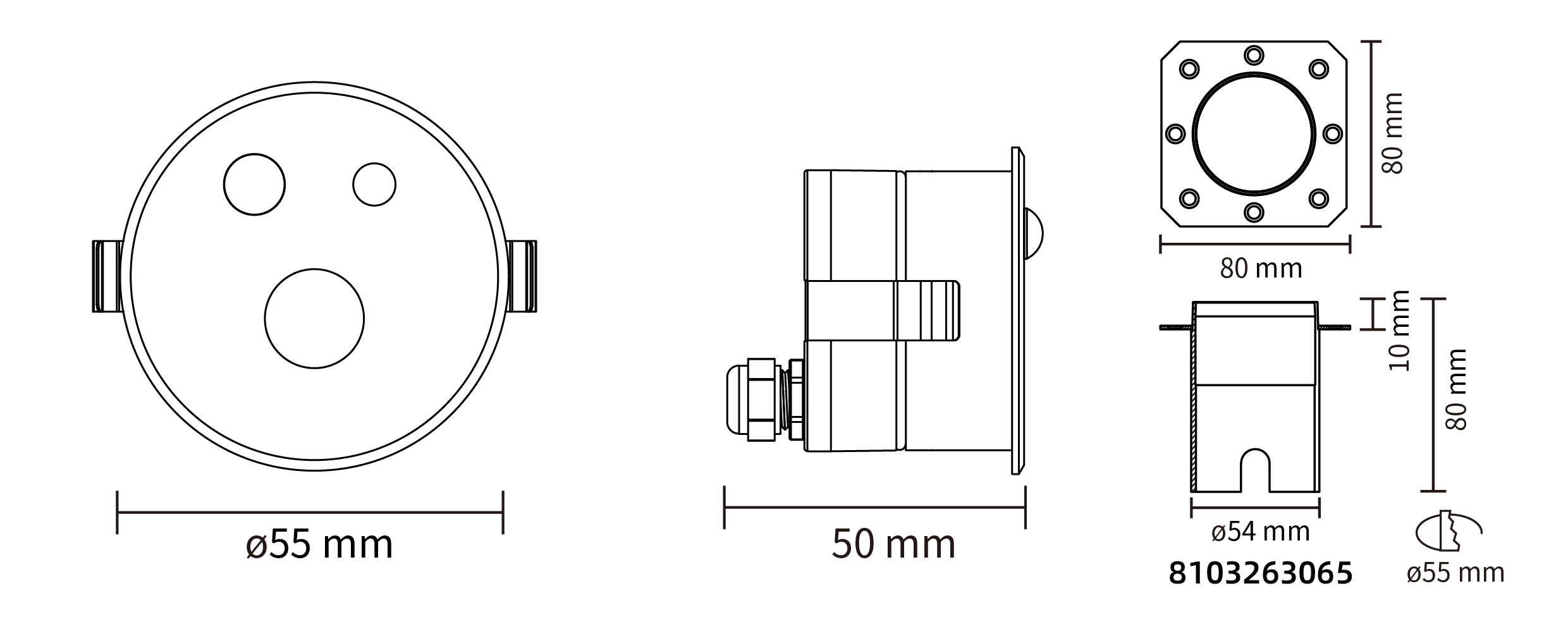

Line Drawing:
General Features:

Accessories :
Reflector Color:
Frame Color:

Select your Model No:

*Please log in before selecting your Model No

Power(W)
  • Power(W)
  • 1 W
  • 3 W
Beam Angle
  • Beam Angle
  • 25x45°
CRI
  • CRI
  • Ra>80
Color
  • Color
  • 2700 K
  • 3000 K
  • 4000 K
Dimming type
  • Dimming type
  • 1-Non Dim
Finish
  • Finish
  • Outdoor white
  • Outdoor black
  • Outdoor grey
Reflector
  • Reflector
  • nothing
IP Rating
  • IP Rating
  • 54-IP54
Accessory
  • Accessory
  • nothing
  • Model No

  • Luminaire lumen(LM)

  • Power (W)

  • Beam Angle

  • CRI

  • Color

  • Specification

  • IES

  • DWG

  • manual

  • Favorite

Model No

DR00610-01XX8027

DR00610-01XX8030

DR00610-01XX8040

DR00610-03XX8027

DR00610-03XX8030

DR00610-03XX8040

Luminous Flux (LM)

4LM

4LM

5LM

8LM

9LM

10LM

Power (W)

1 W

1 W

1 W

3 W

3 W

3 W

Beam Angle

25x45°

25x45°

25x45°

25x45°

25x45°

25x45°

CRI

Ra>80

Ra>80

Ra>80

Ra>80

Ra>80

Ra>80

Color

2700 K

3000 K

4000 K

2700 K

3000 K

4000 K

Specification
IES
DWG
manual
Favorite

Application
