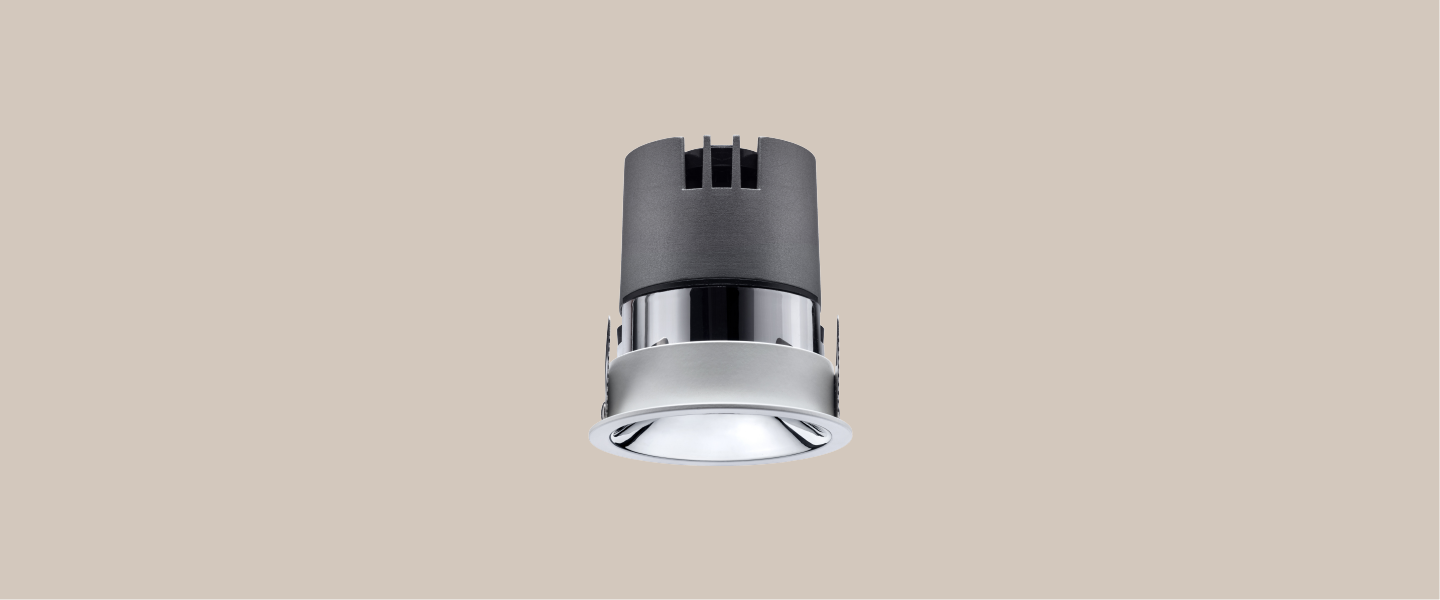

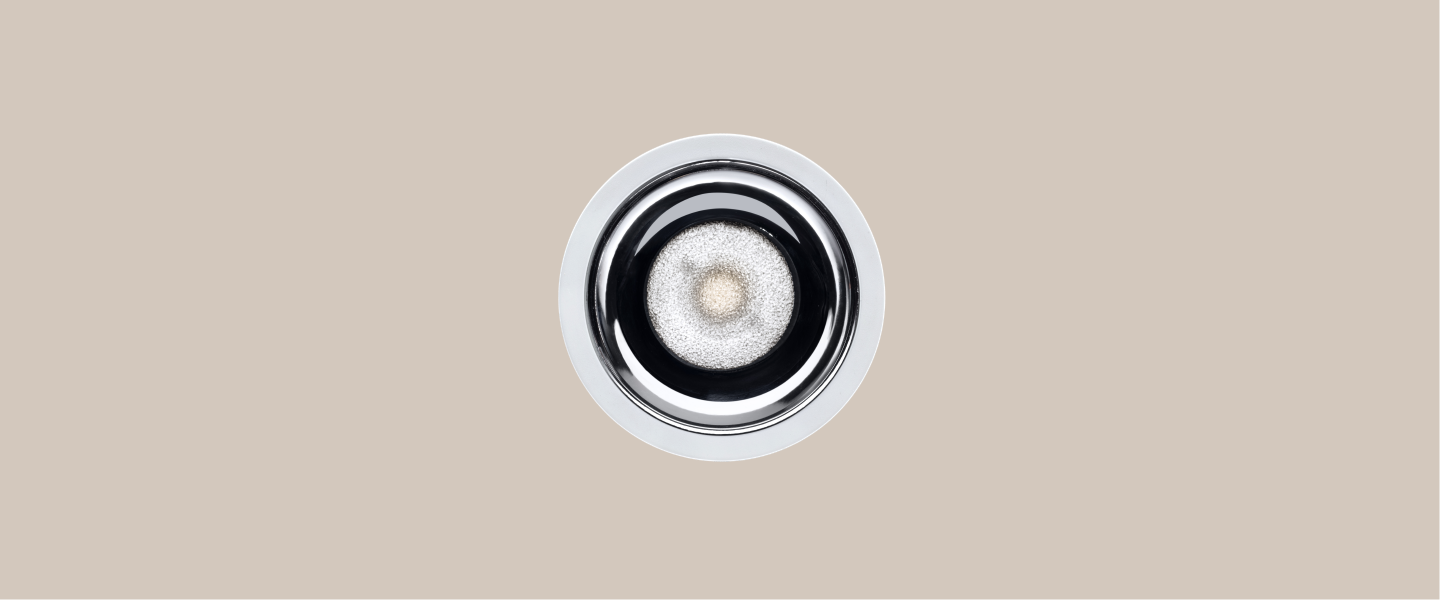

LINNOU 60

Round Fixed Recessed Downlight

LINNOU 60

Small & delicate great practicality

LINNOU 60

Small & delicate great practicality

Creative design with small, thin and deep style. LINNOU lamp's overall minimum size is only Ø 60 * H72mm. LINNOU is named for its compact shape, which saves the hole opening size when installing, effectively solves the problem that the big hole opening on the ceiling may destroy skyline integrity of the space. In addition, the delicate lamps can be lively coordinated with the reflector which has a variety of color. Designers can choose different reflector according to the comprehensive color of ceiling and space, to present both practicability and beauty.

Through the clever and ultra-thin design of adjustable lamps, and the minimum height of lamps is controlled in the range of 75 mm. In satisfying the inside height 80 mm under ceiling, it maximally saves the indoor space. And in view of the small size light's new spring design, under the condition of meet the polarization of 30 degrees, it can effectively solve the problem of installation requirements on thickness 8 ~ 20 mm of ceiling. Design innovation and practicality is presented incisively and vividly in the research and development and application of the LINNOU series downlight.

Lighting Effects

Products Specification:: Type:Round Fixed Recessed Downlight; Cut-Out:ø 60 mm; Beam Angle:10D 15D 26D 36D 54D; Power:5W 7W 10W; CCT:2700K 3000K 3500K 4000K; Weight:0.22kg; Heat-Sink:Aluminum; Surface-Treatment:painting+plating; Remarks:accessories not available for 10D models

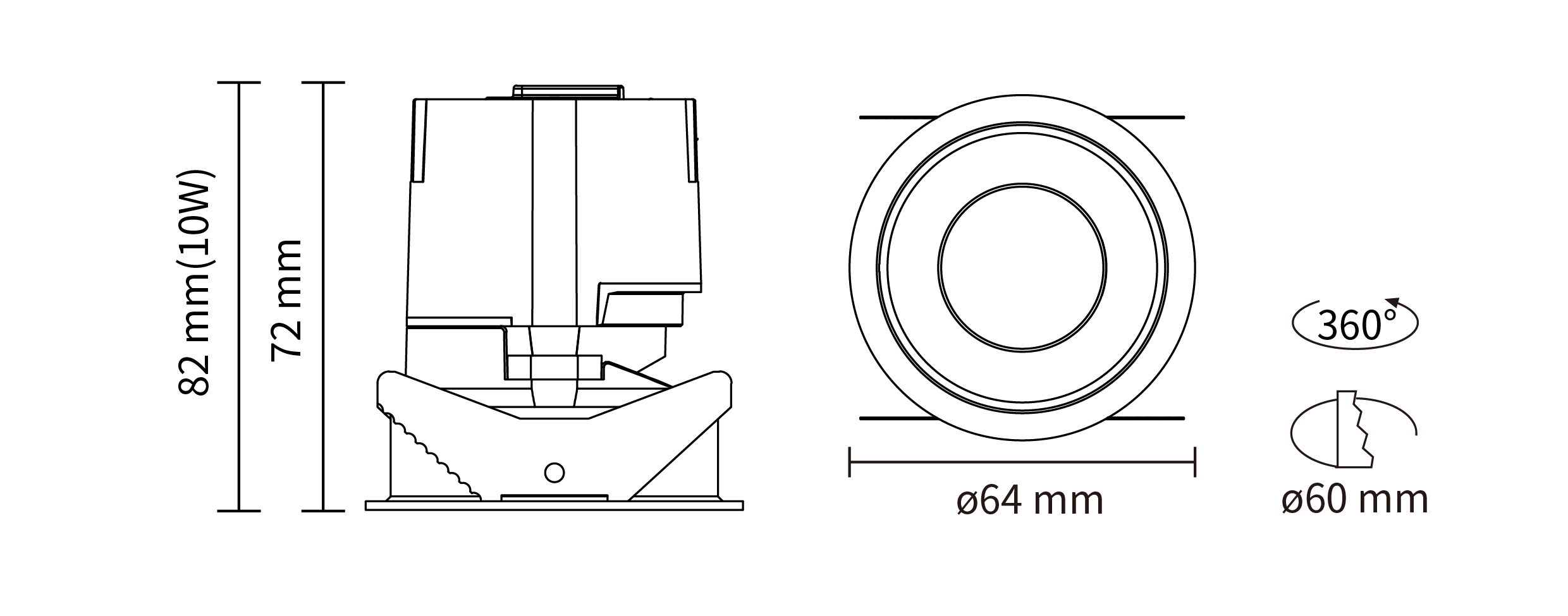

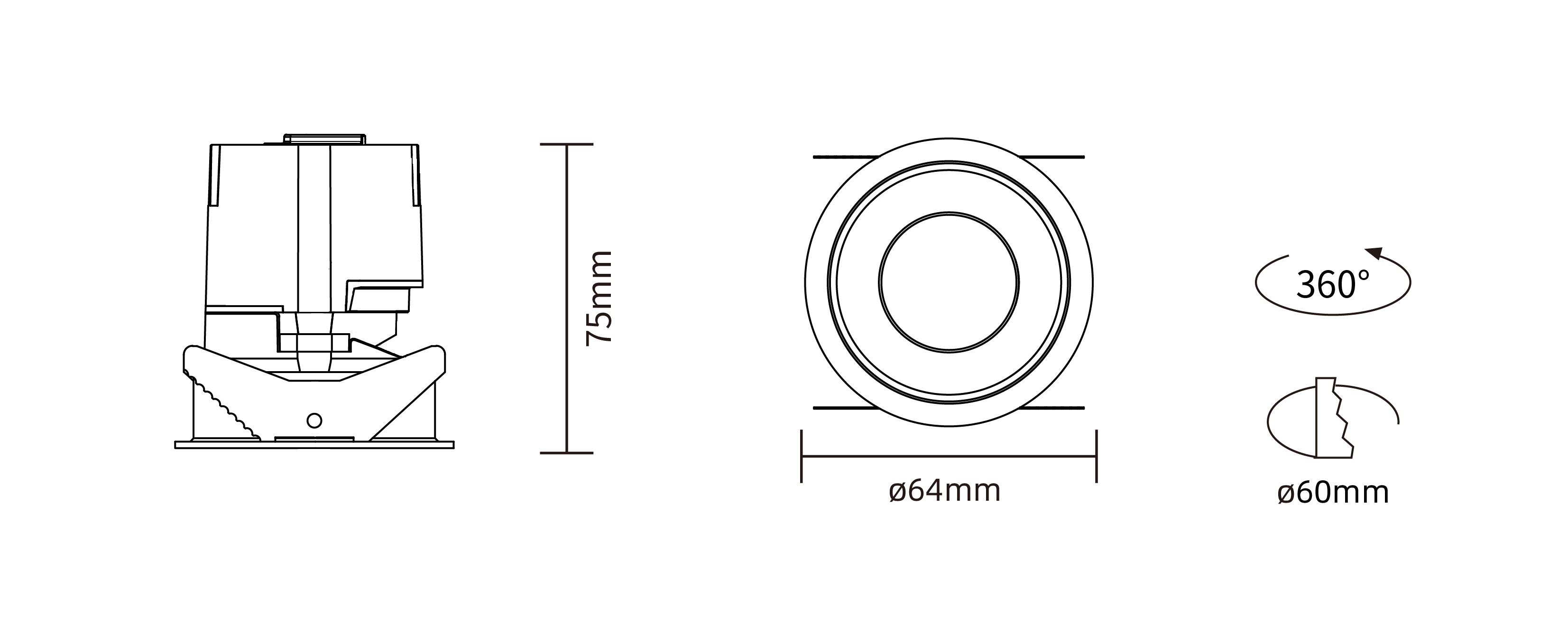

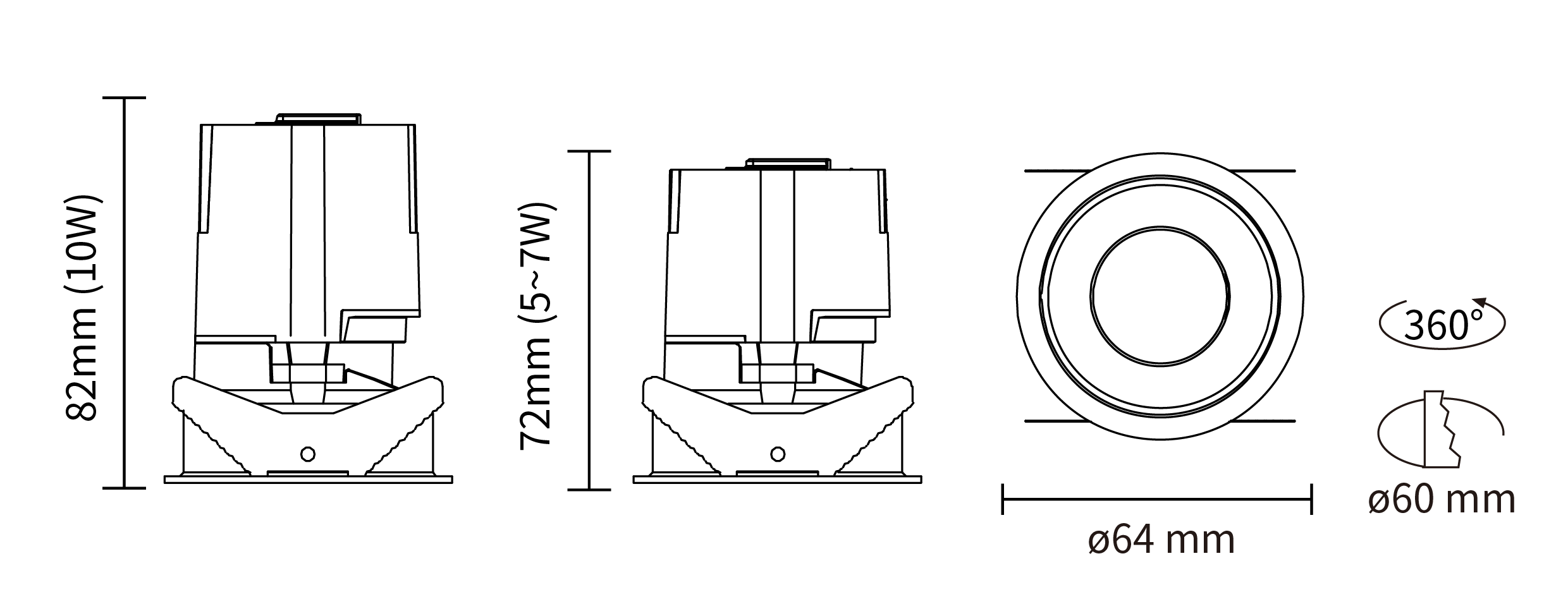

Line Drawing:

General Features:

Accessories :

Reflector Color:

Frame Color:

Select your Model No:
*Please log in before selecting your Model No

Power(W)

Power(W)
5W
7W
10W

Beam Angle

Beam Angle
10°
15°
26°
36°
54°

CRI

CRI
Ra>90

Color

Color
2700K
3000K
3500K
4000K

Dimming type

Dimming type
1-Non Dim
2-Phase dimming
3-0-10V dimming
4-DALI dimming

Finish

Finish
White
Black

Reflector

Reflector
White
Black
Mirror

IP Rating

IP Rating
20-IP20
44-IP44

Accessory

Accessory
Honeycomb louver
Linear lens
Soft lens

Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Specification
IES
DWG
manual
Favorite

Model No: DR00705-05102790; DR00705-05103090; DR00705-05103590; DR00705-05104090; DR00705-07102790; DR00705-07103090; DR00705-07103590; DR00705-07104090; DR00705-10102790; DR00705-10103090; DR00705-10103590; DR00705-10104090; DR00705-05152790; DR00705-05153090; DR00705-05153590; DR00705-05154090; DR00705-07152790; DR00705-07153090; DR00705-07153590; DR00705-07154090; DR00705-10152790; DR00705-10153090; DR00705-10153590; DR00705-10154090; DR00705-05262790; DR00705-05263090; DR00705-05263590; DR00705-05264090; DR00705-07262790; DR00705-07263090; DR00705-07263590; DR00705-07264090; DR00705-10262790; DR00705-10263090; DR00705-10263590; DR00705-10264090; DR00705-05362790; DR00705-05363090; DR00705-05363590; DR00705-05364090; DR00705-07362790; DR00705-07363090; DR00705-07363590; DR00705-07364090; DR00705-10362790; DR00705-10363090; DR00705-10363590; DR00705-10364090; DR00705-05542790; DR00705-05543090; DR00705-05543590; DR00705-05544090; DR00705-07542790; DR00705-07543090; DR00705-07543590; DR00705-07544090; DR00705-10542790; DR00705-10543090; DR00705-10543590; DR00705-10544090

Luminous Flux (LM): 154LM; 162LM; 167LM; 174LM; 189LM; 199LM; 205LM; 208LM; 274LM; 288LM; 297LM; 303LM; 364LM; 384LM; 395LM; 408LM; 458LM; 483LM; 497LM; 500LM; 656LM; 691LM; 712LM; 712LM; 334LM; 352LM; 362LM; 424LM; 418LM; 440LM; 453LM; 489LM; 638LM; 672LM; 692LM; 701LM; 375LM; 395LM; 406LM; 409LM; 434LM; 457LM; 470LM; 484LM; 680LM; 716LM; 738LM; 754LM; 352LM; 371LM; 382LM; 378LM; 412LM; 434LM; 447LM; 438LM; 623LM; 655LM; 675LM; 703LM

Power (W): 5W; 5W; 5W; 5W; 7W; 7W; 7W; 7W; 10W; 10W; 10W; 10W; 5W; 5W; 5W; 5W; 7W; 7W; 7W; 7W; 10W; 10W; 10W; 10W; 5W; 5W; 5W; 5W; 7W; 7W; 7W; 7W; 10W; 10W; 10W; 10W; 5W; 5W; 5W; 5W; 7W; 7W; 7W; 7W; 10W; 10W; 10W; 10W; 5W; 5W; 5W; 5W; 7W; 7W; 7W; 7W; 10W; 10W; 10W; 10W

Beam Angle: 10°; 10°; 10°; 10°; 10°; 10°; 10°; 10°; 10°; 10°; 10°; 10°; 15°; 15°; 15°; 15°; 15°; 15°; 15°; 15°; 15°; 15°; 15°; 15°; 26°; 26°; 26°; 26°; 26°; 26°; 26°; 26°; 26°; 26°; 26°; 26°; 36°; 36°; 36°; 36°; 36°; 36°; 36°; 36°; 36°; 36°; 36°; 36°; 54°; 54°; 54°; 54°; 54°; 54°; 54°; 54°; 54°; 54°; 54°; 54°

CRI: Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90

Color: 2700K; 3000K; 3500K; 4000K; 2700K; 3000K; 3500K; 4000K; 2700K; 3000K; 3500K; 4000K; 2700K; 3000K; 3500K; 4000K; 2700K; 3000K; 3500K; 4000K; 2700K; 3000K; 3500K; 4000K; 2700K; 3000K; 3500K; 4000K; 2700K; 3000K; 3500K; 4000K; 2700K; 3000K; 3500K; 4000K; 2700K; 3000K; 3500K; 4000K; 2700K; 3000K; 3500K; 4000K; 2700K; 3000K; 3500K; 4000K; 2700K; 3000K; 3500K; 4000K; 2700K; 3000K; 3500K; 4000K; 2700K; 3000K; 3500K; 4000K
