IF

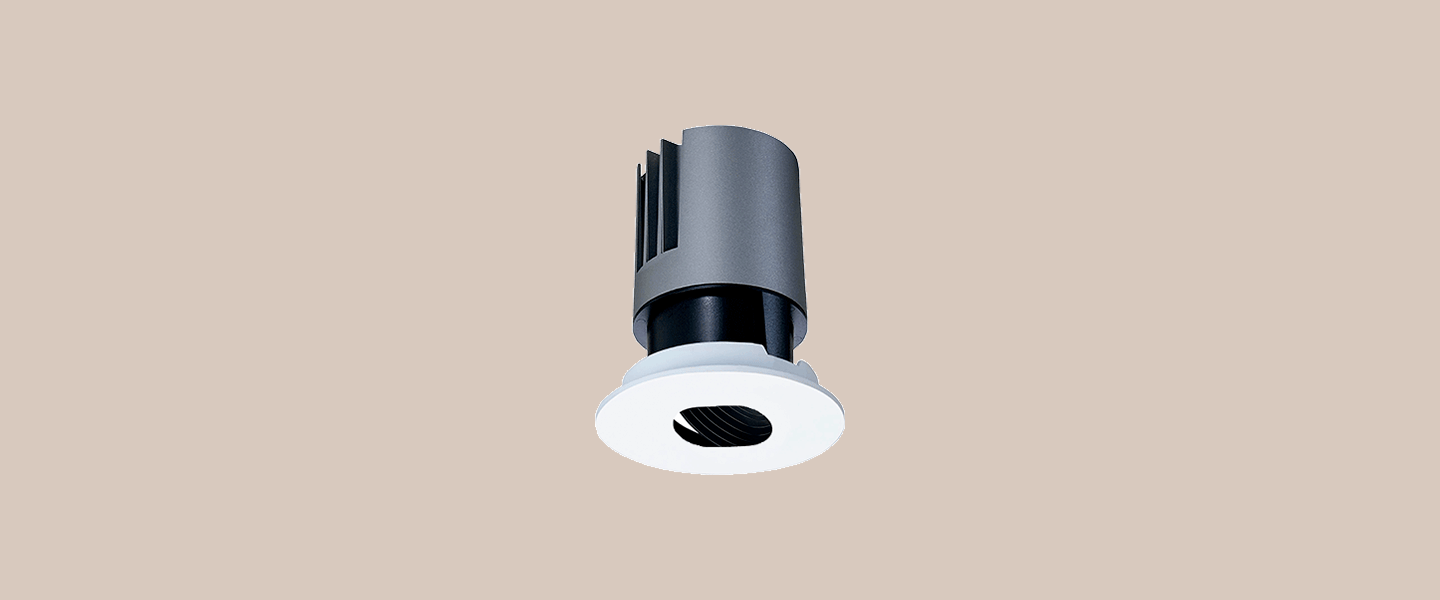

Round Oval Hole Fixed Recessed Downlight
IF
Round Oval Hole Fixed Recessed Downlight
IF series is the classic product series of VF, the lamp is small and exquisite, the lamp height is only 90mm, and it can be widely adapted to the installation space with limited height of the lamp. Even the lamp height is only 90mm, but the Anti-glare is well controlled, 8D, 15D, 25D, 32D, 36D, 50D light distribution with excellent light quality.
Lamps style have round open type, round pin hole, round oval hole, equipped with mirror reflector or champagne gold reflector, which can achieve different interior design and lighting design styles.
Lighting Effects
- Products Specification:
- Type:Round Oval Hole Fixed Recessed Downlight
- Cut-Out:ø 80 mm
- Beam Angle:8D 15D 25D 32D 36D 50D
- Power:5W 8W 10W 12W 15W
- CCT:2700K 3000K 4000K
- Weight:0.46kg
- Heat-Sink:Aluminum
- Surface-Treatment:painting+plating
- Remarks:IP44 for visible body of fitting after installation, not avaible for using with honeycomb louver.
- Line Drawing:
- General Features:
- Accessories :
- Reflector Color:
- Frame Color:
Select your Model No:
*Please log in before selecting your Model No
- Power(W)
- 5W
- 8W
- 10W
- 12W
- 15W
- Beam Angle
- 8°
- 15°
- 25°
- 32°
- 36°
- 50°
- CRI
- Ra>90
- Color
- 2700K
- 3000K
- 4000K
- Dimming type
- 1-Non Dim
- 2-Phase dimming
- 3-0-10V dimming
- 4-DALI dimming
- Finish
- 01-White
- 02-Black
- Reflector
- N/A
- IP Rating
- 44-IP44
- Accessory
- 1-Honeycomb louver
- 4-Linear lens
Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Specification
IES
DWG
manual
Favorite
- Model No
DR00212-05369027
DR00212-05369030
DR00212-05369040
DR00212-05509027
DR00212-05509030
DR00212-05509040
DR00212-08089027
DR00212-08089030
DR00212-08159027
DR00212-08159030
DR00212-08159040
DR00212-08259027
DR00212-08259030
DR00212-08259040
DR00212-08329027
DR00212-08329030
DR00212-08329040
DR00212-08369027
DR00212-08369030
DR00212-08369040
DR00212-08509027
DR00212-08509030
DR00212-08509040
DR00212-10089027
DR00212-10089030
DR00212-12159027
DR00212-12159030
DR00212-12159040
DR00212-12259027
DR00212-12259030
DR00212-12259040
DR00212-12329027
DR00212-12329030
DR00212-12329040
DR00212-12369027
DR00212-12369030
DR00212-12369040
DR00212-12509027
DR00212-12509030
DR00212-12509040
DR00212-15159027
DR00212-15159030
DR00212-15159040
DR00212-15259027
DR00212-15259030
DR00212-15259040
DR00212-15329027
DR00212-15329030
DR00212-15329040
DR00212-15369027
DR00212-15369030
DR00212-15369040
DR00212-15509027
DR00212-15509030
DR00212-15509040
- Luminous Flux (LM)
268LM
276LM
287LM
229LM
236LM
243LM
348LM
363LM
371LM
368LM
398LM
316LM
368LM
368LM
242LM
255LM
256LM
380LM
393LM
409LM
325LM
336LM
349LM
382LM
404LM
378LM
422LM
430LM
384LM
490LM
497LM
263LM
326LM
336LM
542LM
562LM
585LM
460LM
478LM
507LM
480LM
525LM
535LM
586LM
606LM
661LM
387LM
397LM
429LM
729LM
676LM
781LM
604LM
577LM
645LM
- Power (W)
5W
5W
5W
5W
5W
5W
8W
8W
8W
8W
8W
8W
8W
8W
8W
8W
8W
8W
8W
8W
8W
8W
8W
10W
10W
12W
12W
12W
12W
12W
12W
12W
12W
12W
12W
12W
12W
12W
12W
12W
15W
15W
15W
15W
15W
15W
15W
15W
15W
15W
15W
15W
15W
15W
15W
- Beam Angle
36°
36°
36°
50°
50°
50°
8°
8°
15°
15°
15°
25°
25°
25°
32°
32°
32°
36°
36°
36°
50°
50°
50°
8°
8°
15°
15°
15°
25°
25°
25°
32°
32°
32°
36°
36°
36°
50°
50°
50°
15°
15°
15°
25°
25°
25°
32°
32°
32°
36°
36°
36°
50°
50°
50°
- CRI
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
- Color
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
