GRACE 195

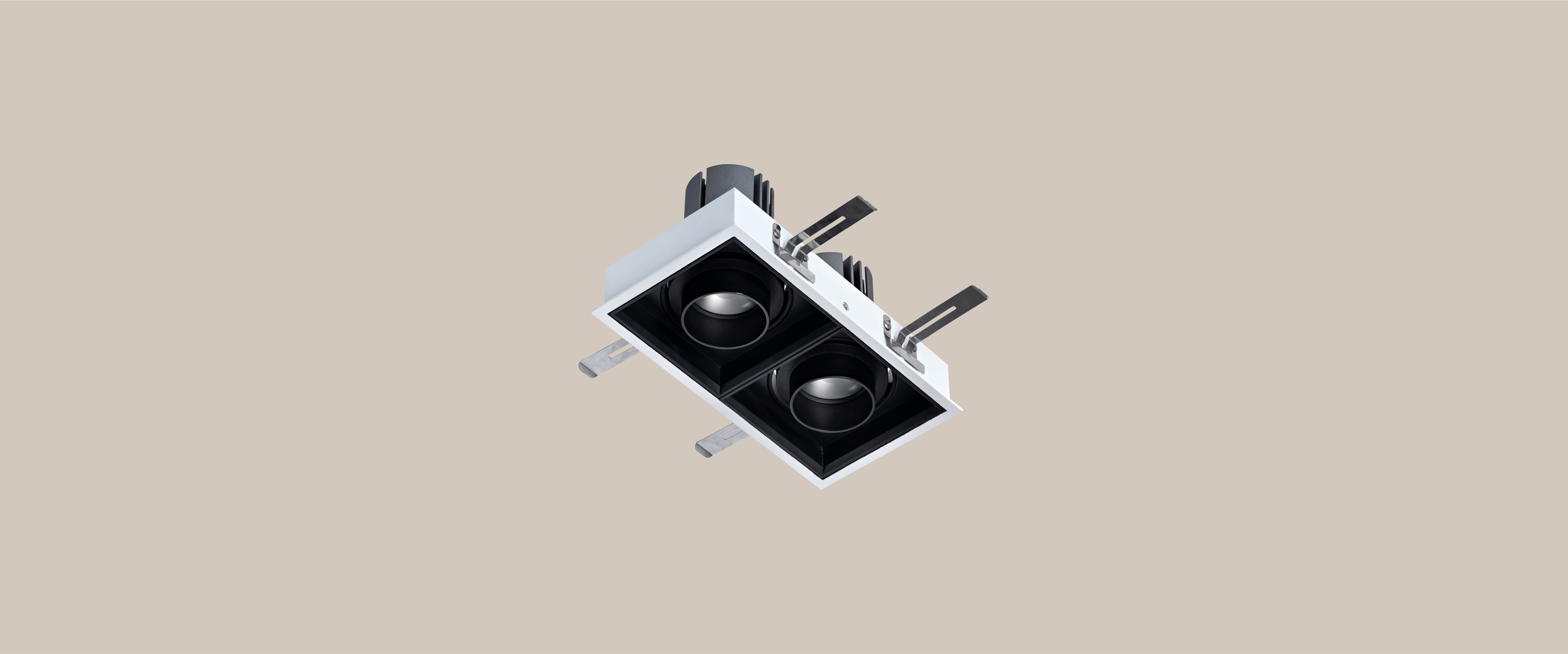

Double Heads Adjustable Recessed Downlight

GRACE 195

Double Heads Adjustable Recessed Downlight

As an accent lighting product, GRACE is the first choice for designers as an accent lighting product with its carefully designed size and accurate optics. With small cutout size, the whole lamp installation does not destroy the overall beauty of the ceiling. The large shielding angle (31D), and black anti-glare ring make the whole lamp only see light
without seeing lamps after installation. The whole series has single head, double head and three head style, each style provides 5 kinds of angles, each angle's light spot is even,
do not have stray light, which gives designer a variety of choices for different application place. Downlight structure is equipped with 350 rotation, 30 vertically polarized light, and also with a very narrow beam angle (8D and 15D), which can put light from different angles to the object. In addition, the rigorous design makes this lamp's light source module replaceable, the user can easily replace them without any tools.

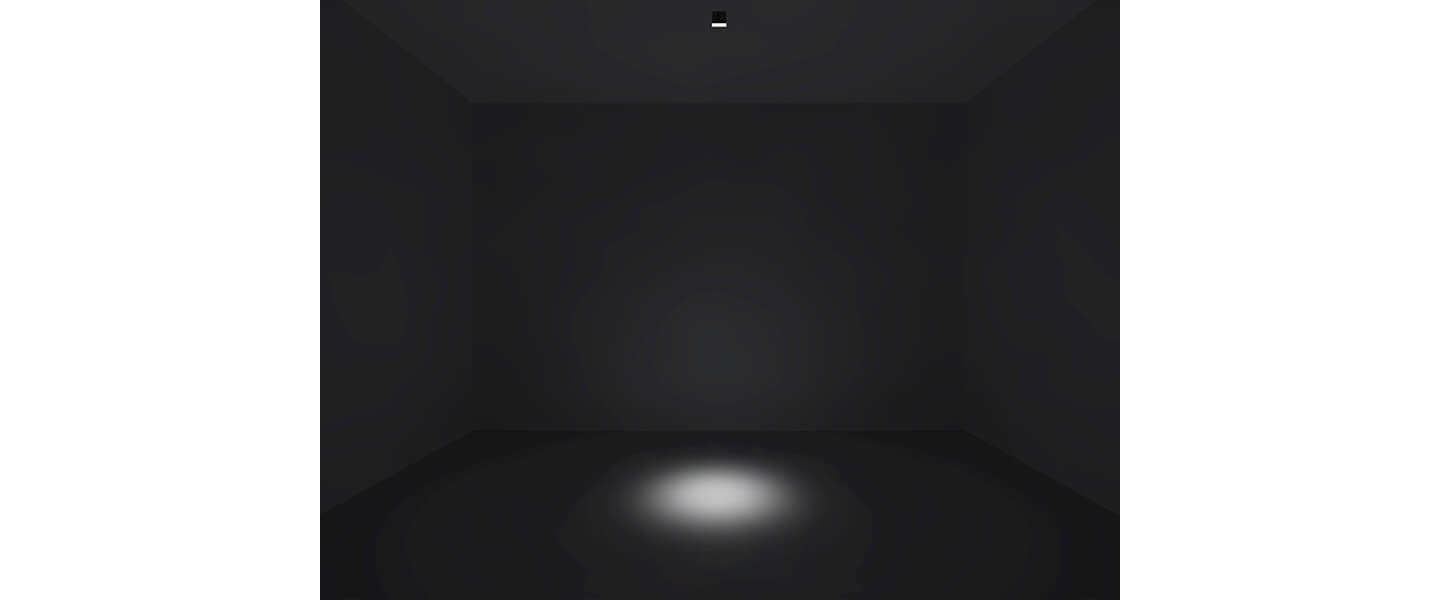

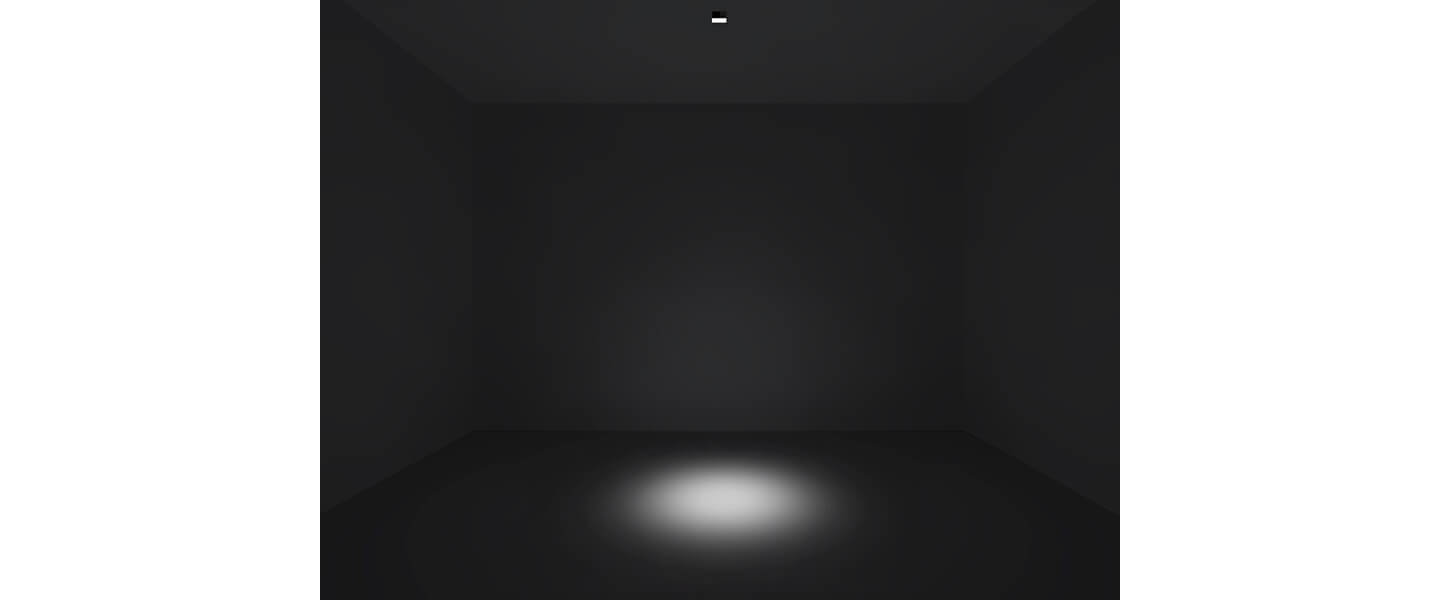

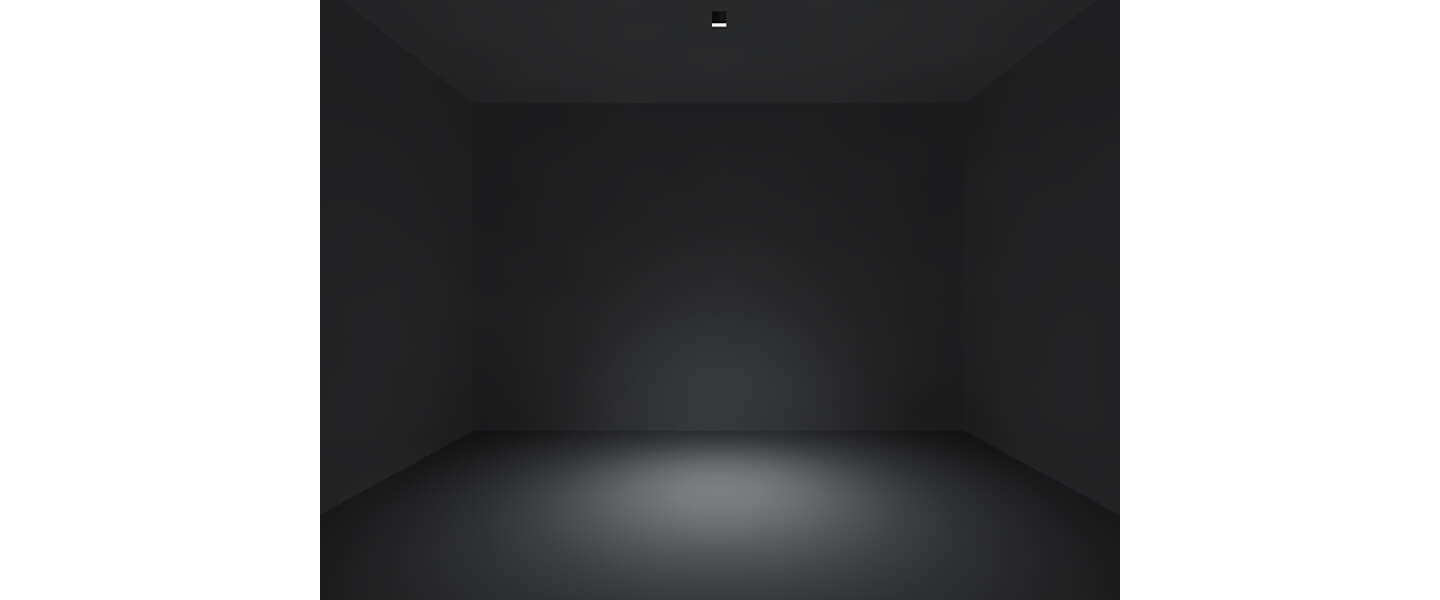

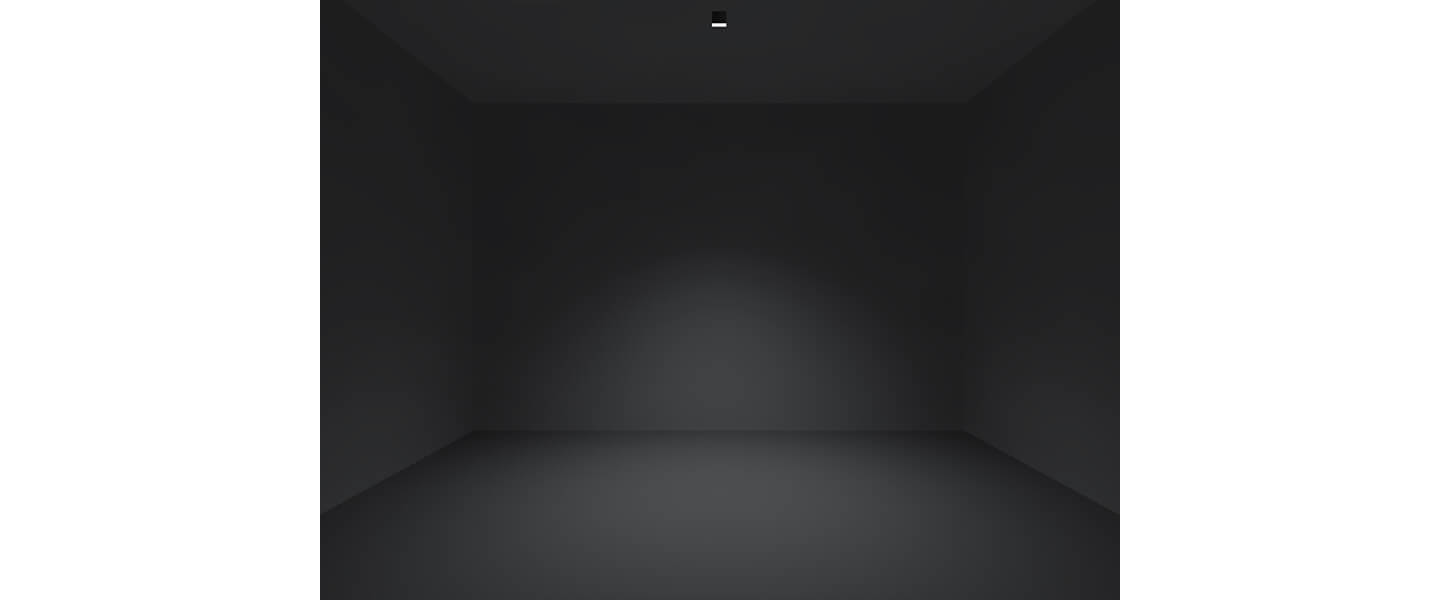

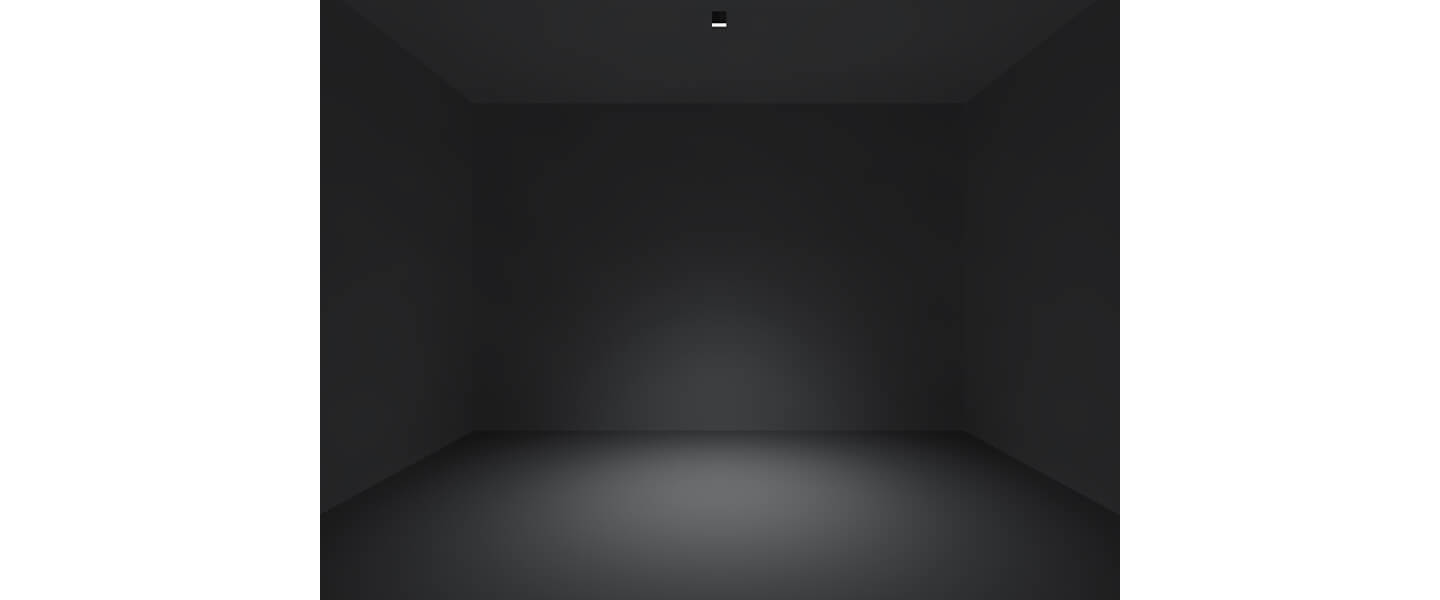

Lighting Effects

Products Specification:
Type:Double Heads Adjustable Recessed Downlight
Cut-out:100 mm*195mm
Beam Angle:8D 15D 24D 36D 50D
Power:7W 8W 10W 12W 15W
CCT:2700K 3000K 4000K
Heat-Sink:Aluminum
Surface-Treatment:painting+plating
Weight:0.88kg
Line Drawing:
General Features:

Accessories :
Reflector Color:
Frame Color:

Select your Model No:

*Please log in before selecting your Model No

Power(W)
  • Power(W)
  • 2X8W
  • 2X15W
  • 2X12W
Beam Angle
  • Beam Angle
  • 15°
  • 24°
  • 36°
  • 50°
CRI
  • CRI
  • Ra>90
Color
  • Color
  • 2700K
  • 3000K
  • 4000K
Dimming type
  • Dimming type
  • 1-Non Dim
  • 2-Phase dimming
  • 3-0-10V dimming
  • 4-DALI dimming
Finish
  • Finish
  • 02-Black
  • 01-White
Reflector
  • Reflector
  • N/A
IP Rating
  • IP Rating
  • 20-IP20
Accessory
  • Accessory
  • 1-Honeycomb louver
  • 4-Linear lens
  • Model No

  • Luminaire lumen(LM)

  • Power (W)

  • Beam Angle

  • CRI

  • Color

  • Specification

  • IES

  • DWG

  • manual

  • Favorite

Model No

DR00908-08159027

DR00908-08159030

DR00908-08159040

DR00908-08249027

DR00908-08249030

DR00908-08249040

DR00908-08369027

DR00908-08369030

DR00908-08369040

DR00908-08509027

DR00908-08509030

DR00908-08509040

DR00908-12159027

DR00908-12159030

DR00908-12159040

DR00908-12249027

DR00908-12249030

DR00908-12249040

DR00908-12369027

DR00908-12369030

DR00908-12369040

DR00908-12509027

DR00908-12509030

DR00908-12509040

DR00908-15159027

DR00908-15159030

DR00908-15159040

DR00908-15249027

DR00908-15249030

DR00908-15249040

DR00908-15369027

DR00908-15369030

DR00908-15369040

DR00908-15509027

DR00908-15509030

DR00908-15509040

Luminous Flux (LM)

991LM

1044LM

1096LM

1036LM

1091LM

1145LM

1149LM

1210LM

1270LM

1030LM

1084LM

1139LM

1430LM

1506LM

1581LM

1469LM

1546LM

1623LM

1615LM

1700LM

1785LM

1544LM

1625LM

1706LM

1582LM

1666LM

1749LM

1822LM

1918LM

2013LM

2082LM

2191LM

2301LM

1883LM

1982LM

2081LM

Power (W)

2X8W

2X8W

2X8W

2X8W

2X8W

2X8W

2X8W

2X8W

2X8W

2X8W

2X8W

2X8W

2X12W

2X12W

2X12W

2X12W

2X12W

2X12W

2X12W

2X12W

2X12W

2X12W

2X12W

2X12W

2X15W

2X15W

2X15W

2X15W

2X15W

2X15W

2X15W

2X15W

2X15W

2X15W

2X15W

2X15W

Beam Angle

15°

15°

15°

24°

24°

24°

36°

36°

36°

50°

50°

50°

15°

15°

15°

24°

24°

24°

36°

36°

36°

50°

50°

50°

15°

15°

15°

24°

24°

24°

36°

36°

36°

50°

50°

50°

CRI

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Color

2700K

3000K

4000K

2700K

3000K

4000K

2700K

3000K

4000K

2700K

3000K

4000K

2700K

3000K

4000K

2700K

3000K

4000K

2700K

3000K

4000K

2700K

3000K

4000K

2700K

3000K

4000K

2700K

3000K

4000K

2700K

3000K

4000K

2700K

3000K

4000K

Specification
IES
DWG
manual
Favorite
