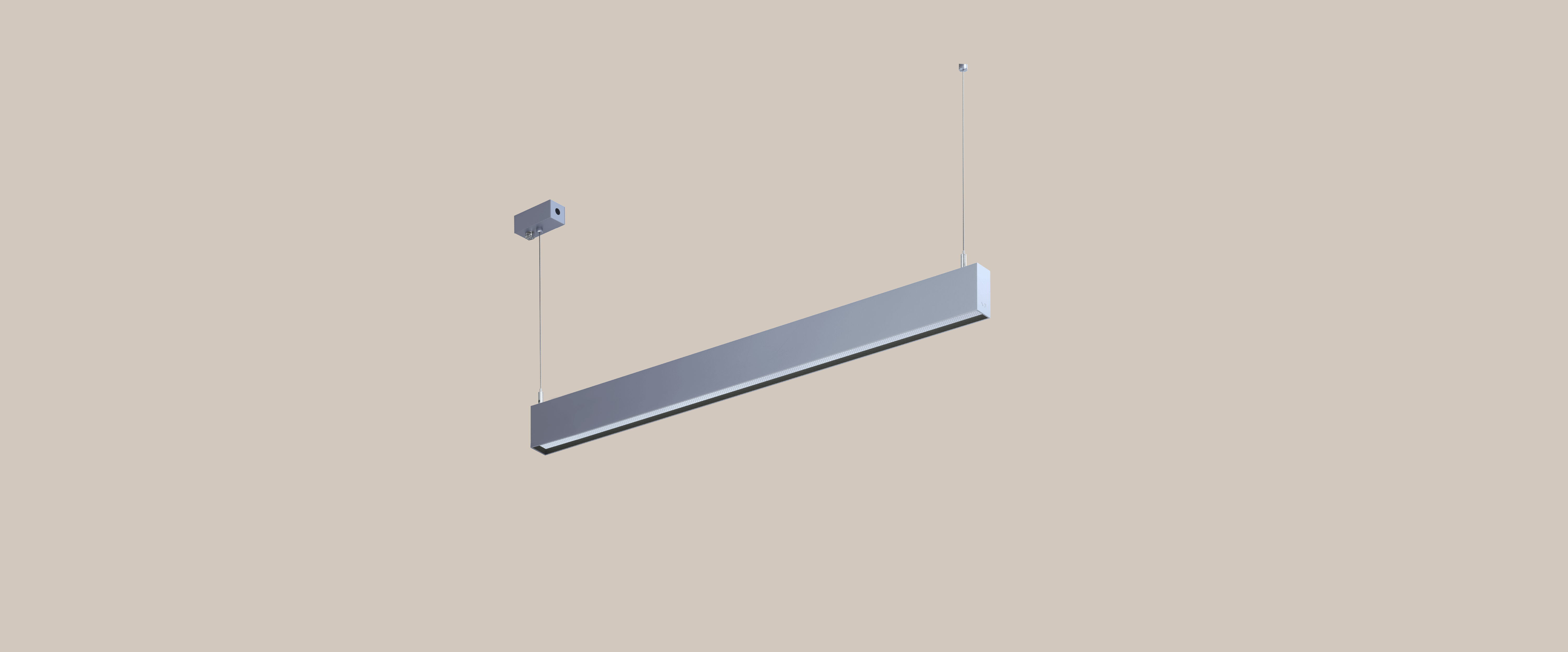

KLEE 36

Ultra comfort | Suspended Up & down

KLEE 36

Ultra comfort | Suspended Up & down

KLEE 36 has exquisite appearance; multiple options for optics provides various aesthetic and visual comfort for offices. The 175° super wide flood upper light makes the indirect lighting extremely uniform. Three standard lengths(1M/1.5M) with multiple power options for each modular.

Easy-to-install structural design, quick-leveling functions, and optimized connection structure make the luminaires more convenient when connecting. KLEE 30 is equipped with a true flicker-free independently developed by VF, providing an excellent flicker-free environment for photographic equipment.

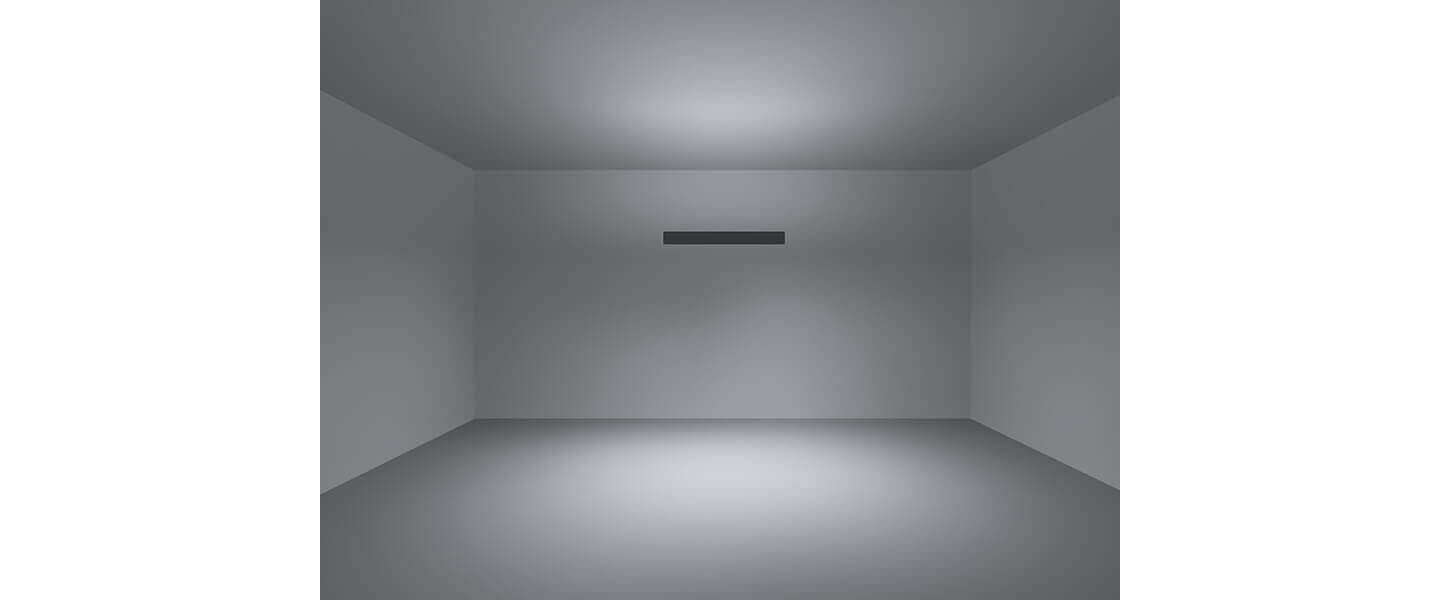

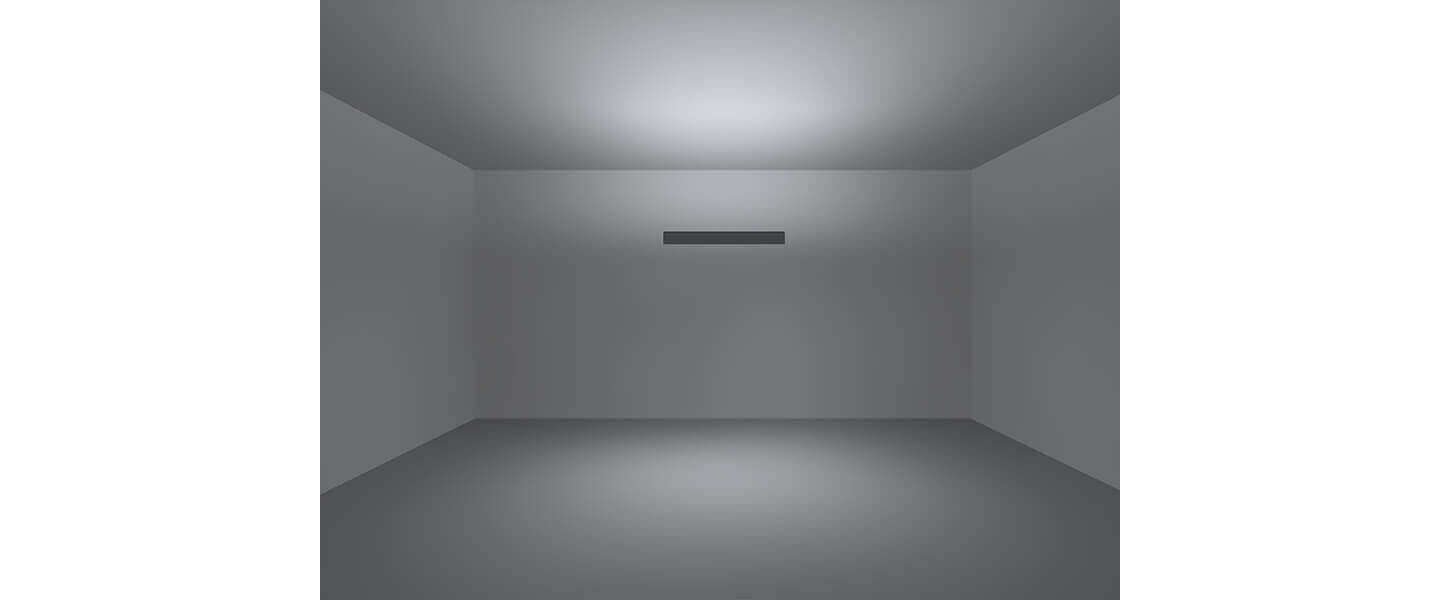

Lighting Effects

Products Specification:: Type:Ultra comfort | Suspended Up & down; Beam Angle:UP/DOWN 100x150D/70D; Power:45W 68W 90W; CCT:2700K 3000K 4000K; Weight:2.38kg 3.57kg; Heat-Sink:Aluminum; Surface-Treatment:Plating; Remarks:Single lamp use only; Lamp Cover:Double-layer Anti-glare Film + Transparent Lamp Cover

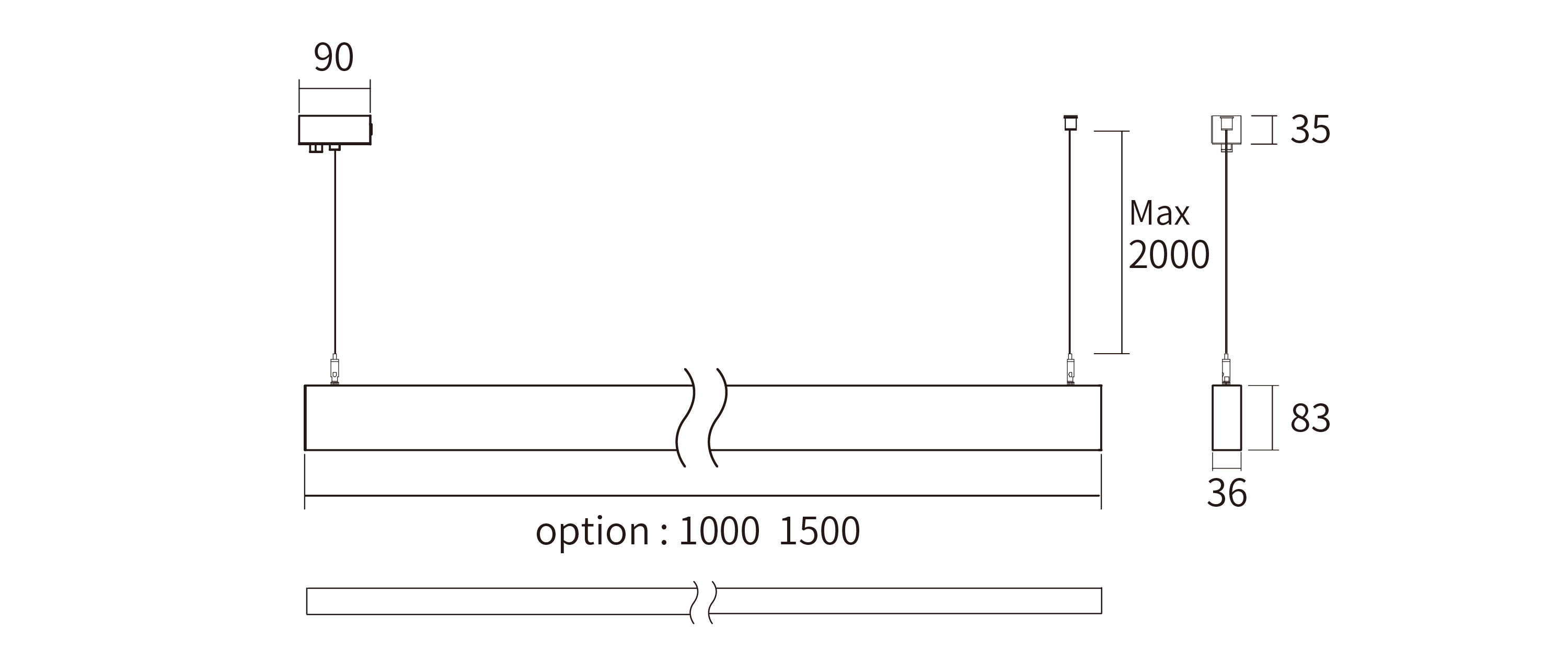

Line Drawing:

General Features:

Accessories :

Reflector Color:

Frame Color:

Select your Model No:
*Please log in before selecting your Model No

Power(W)

Power(W)
15W / 30W
22.5W / 45W
30W / 15W
30W / 60W
45W / 22.5W
60W / 30W

Beam Angle

Beam Angle
100x150°/70°

CRI

CRI
Ra>90

Color

Color
2700K
3000K
4000K

Dimming type

Dimming type
1-Non Dim
3-0-10V dimming
4-DALI dimming

Finish

Finish
01-White
02-Black
03-Grey

Reflector

Reflector
N/A

IP Rating

IP Rating
20-IP20

Accessory

Accessory
1-Honeycomb louver

Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Specification
IES
DWG
manual
Favorite

Model No: LP00103-45B19027-1M; LP00103-45B19030-1M; LP00103-45B19040-1M; LP00103-45B29027-1M; LP00103-45B29030-1M; LP00103-45B29040-1M; LP00103-68B19027-1.5M; LP00103-68B19030-1.5M; LP00103-68B19040-1.5M; LP00103-68B29027-1.5M; LP00103-68B29030-1.5M; LP00103-68B29040-1.5M; LP00103-90B19027-2M; LP00103-90B19030-2M; LP00103-90B19040-2M; LP00103-90B29027-2M; LP00103-90B29030-2M; LP00103-90B29040-2M

Luminous Flux (LM): UP/DOWN 2891LM/1099LM; UP/DOWN 3051LM/1160LM; UP/DOWN 3212LM/1221LM; UP/DOWN 1485LM/2153LM; UP/DOWN 1568LM/2272LM; UP/DOWN 1650LM/2392LM; UP/DOWN 4348LM/1653LM; UP/DOWN 4577LM/1740LM; UP/DOWN 4818LM/1832LM; UP/DOWN 2234LM/3238LM; UP/DOWN 2352LM/3409LM; UP/DOWN 2475LM/3588LM; UP/DOWN 4348LM/2204LM; UP/DOWN 4577LM/2320LM; UP/DOWN 4818LM/2442LM; UP/DOWN 2234LM/4318LM; UP/DOWN 2352LM/4545LM; UP/DOWN 2475LM/4784LM

Power (W): 30W / 15W; 30W / 15W; 30W / 15W; 15W / 30W; 15W / 30W; 15W / 30W; 45W / 22.5W; 45W / 22.5W; 45W / 22.5W; 22.5W / 45W; 22.5W / 45W; 22.5W / 45W; 60W / 30W; 60W / 30W; 60W / 30W; 30W / 60W; 30W / 60W; 30W / 60W

Beam Angle: 100x150°/70°; 100x150°/70°; 100x150°/70°; 100x150°/70°; 100x150°/70°; 100x150°/70°; 100x150°/70°; 100x150°/70°; 100x150°/70°; 100x150°/70°; 100x150°/70°; 100x150°/70°; 100x150°/70°; 100x150°/70°; 100x150°/70°; 100x150°/70°; 100x150°/70°; 100x150°/70°
