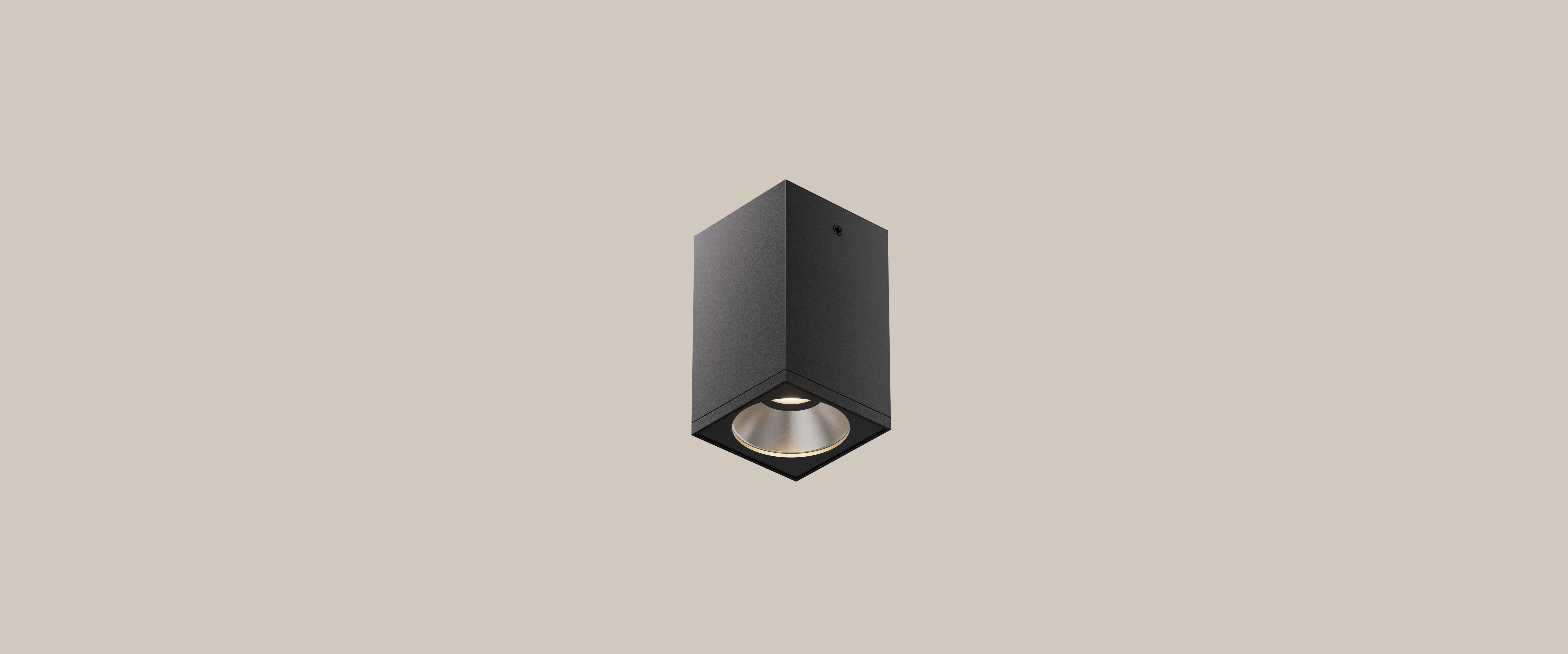

M-BOX 70
Surface-mounted Square Downlight
M-BOX 70
Lighting Effects
- Products Specification:
- Type:Surface-mounted Square Downlight
- Power:8W 12W
- Beam Angle:18° 28° 38° 48°
- Weight:0.45kg
- CCT:2700K 3000K 4000K
- Heat-Sink:Aluminum
- Surface-Treatment:Painting/Powder coating

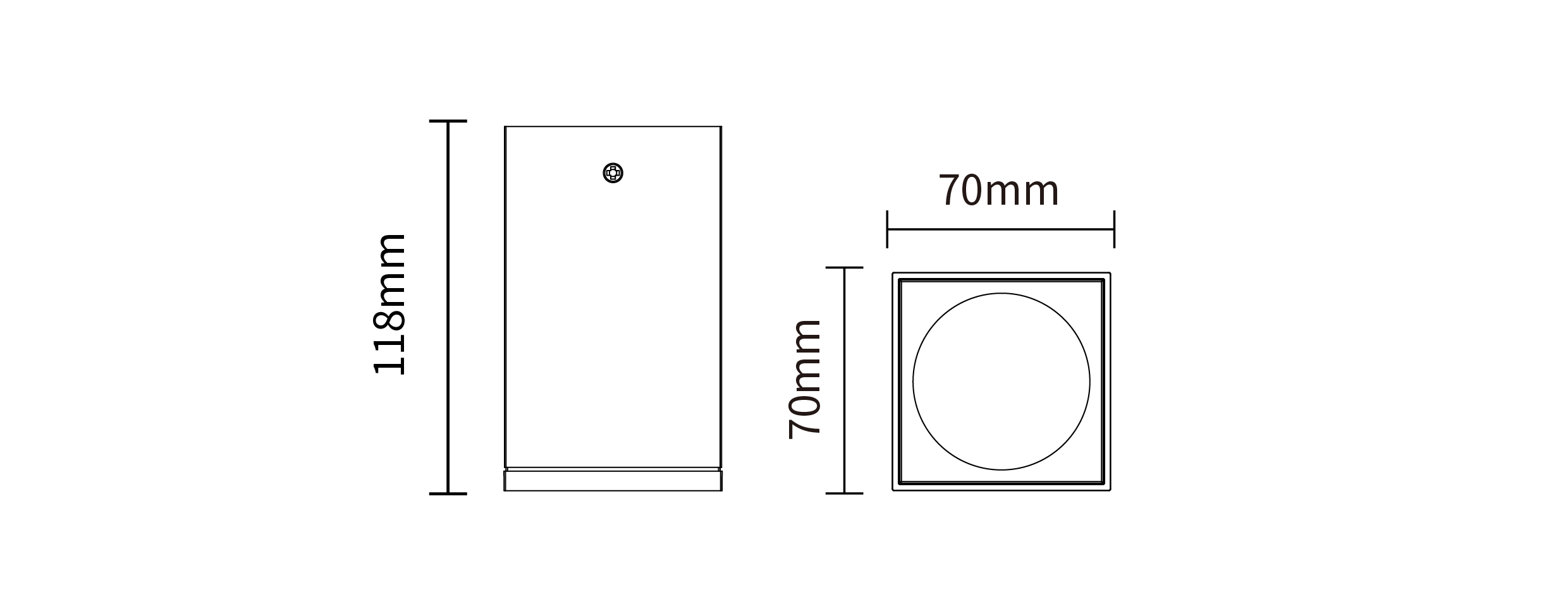

- Line Drawing:
- General Features:
- Accessories:
- Reflector Color:
- Frame Color:
Select your Model No:Power(W)- Power(W)
- 8W
- 12W
Beam Angle- Beam Angle
- 18°
- 28°
- 38°
- 48°
CRI- CRI
- Ra>90
Color- Color
- 2700K
- 3000K
- 4000K
Control- Control
Dimming type- Dimming type
- 1-Non Dim
- 3-0-10V dimming
- 4-DALI dimming
Finish- Finish
- White
- Black
- Madrid Grey
- Rose Gold
Reflector- Reflector
- Mirror
- Black
- White
- Madrid Grey
- Red Golden
IP Rating- IP Rating
- 65-IP65
Accessory- Accessory
- Honeycomb louver
- Power(W)
- 8W
- 12W
- Beam Angle
- 18°
- 28°
- 38°
- 48°
- CRI
- Ra>90
- Color
- 2700K
- 3000K
- 4000K
- Control
- Dimming type
- 1-Non Dim
- 3-0-10V dimming
- 4-DALI dimming
- Finish
- White
- Black
- Madrid Grey
- Rose Gold
- Reflector
- Mirror
- Black
- White
- Madrid Grey
- Red Golden
- IP Rating
- 65-IP65
- Accessory
- Honeycomb louver
Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Control
Specification
IES
DWG
manual
Favorite
- Model No
DS02701-08189027
DS02701-08189030
DS02701-08189040
DS02701-08289027
DS02701-08289030
DS02701-08289040
DS02701-08389027
DS02701-08389030
DS02701-08389040
DS02701-08489027
DS02701-08489030
DS02701-08489040
DS02701-12189027
DS02701-12189030
DS02701-12189040
DS02701-12289027
DS02701-12289030
DS02701-12289040
DS02701-12389027
DS02701-12389030
DS02701-12389040
DS02701-12489027
DS02701-12489030
DS02701-12489040
- Luminous Flux (LM)
557LM
587LM
590LM
646LM
680LM
714LM
576LM
606LM
617LM
539LM
567LM
599LM
772LM
813LM
867LM
939LM
989LM
1066LM
857LM
902LM
929LM
802LM
844LM
916LM
- Power (W)
8W
8W
8W
8W
8W
8W
8W
8W
8W
8W
8W
8W
12W
12W
12W
12W
12W
12W
12W
12W
12W
12W
12W
12W
- Beam Angle
18°
18°
18°
28°
28°
28°
38°
38°
38°
48°
48°
48°
18°
18°
18°
28°
28°
28°
38°
38°
38°
48°
48°
48°
- CRI
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
- Color
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
