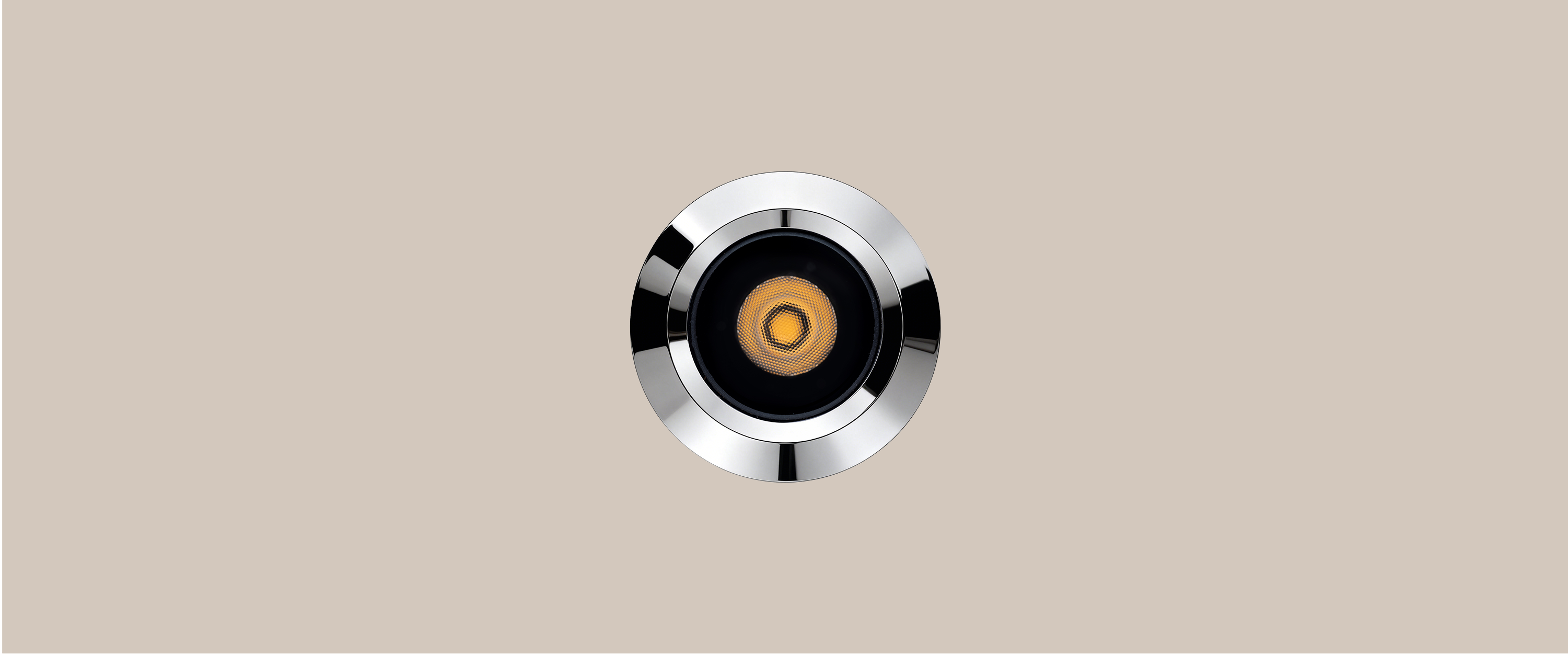

ASTA II 65
In-Ground Light
ASTA II 65
ASTA II 65
Lighting Effects
- Products Specification:
- Type:In-Ground Light
- Beam Angle:15D 20D 24D 36D 47D 50D
- Power:5W 6W 7W
- Dimension:φ65x94mm
- Embedded Part Dimension:φ61x110mm/φ100x120mm
- Weight:0.49kg 0.90kg
- CCT:2700K 3000K 4000K
- Heat-Sink:①Indoor: Aluminum ②Outdoor: Stainless Steel
- Surface-Treatment:Powder Coating
- Remark:(Grille)Test data with anti-glare grille added

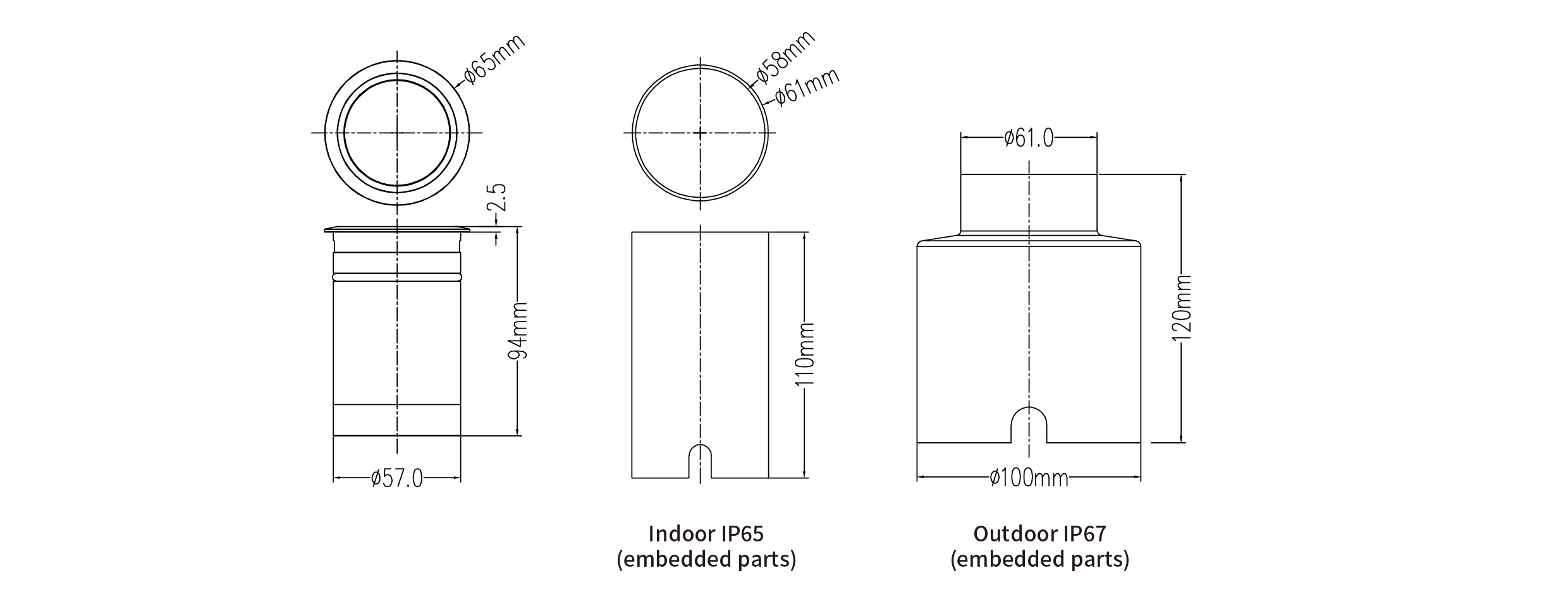

- Line Drawing:
- General Features:

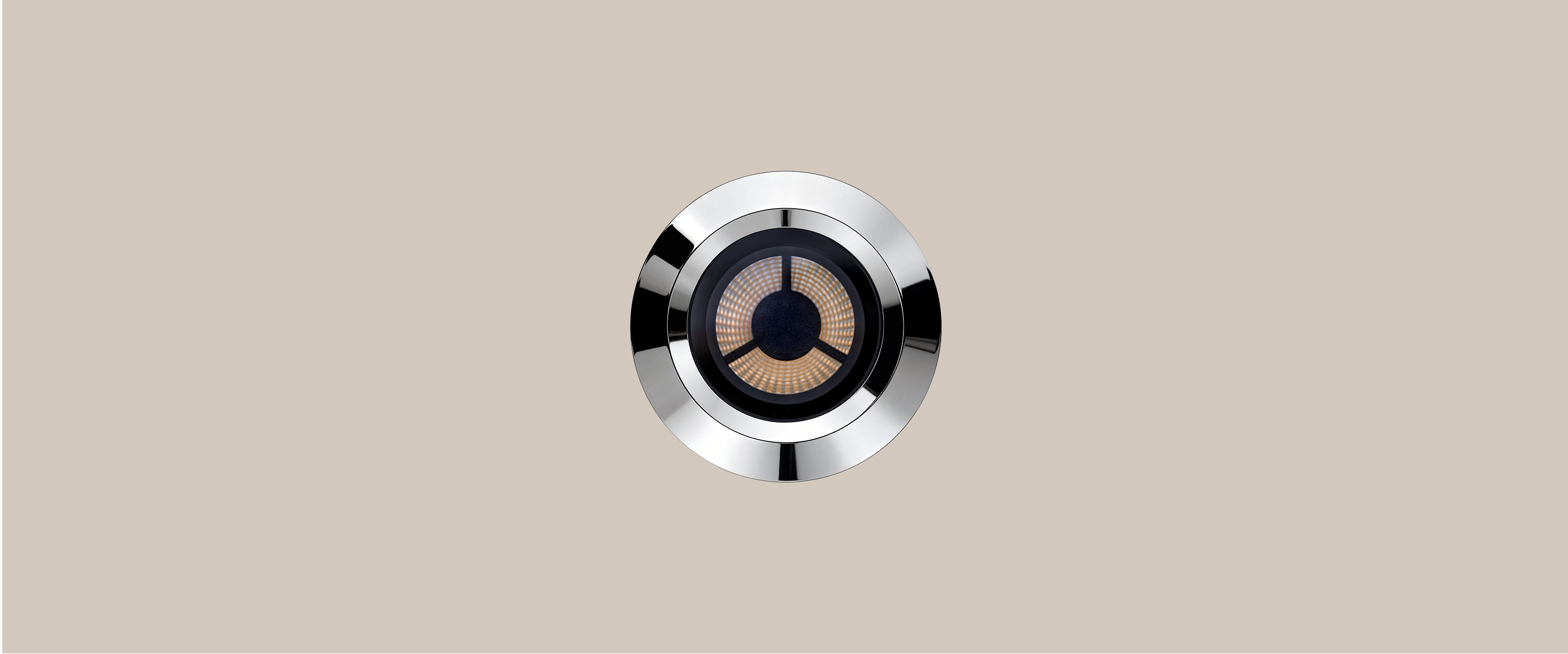

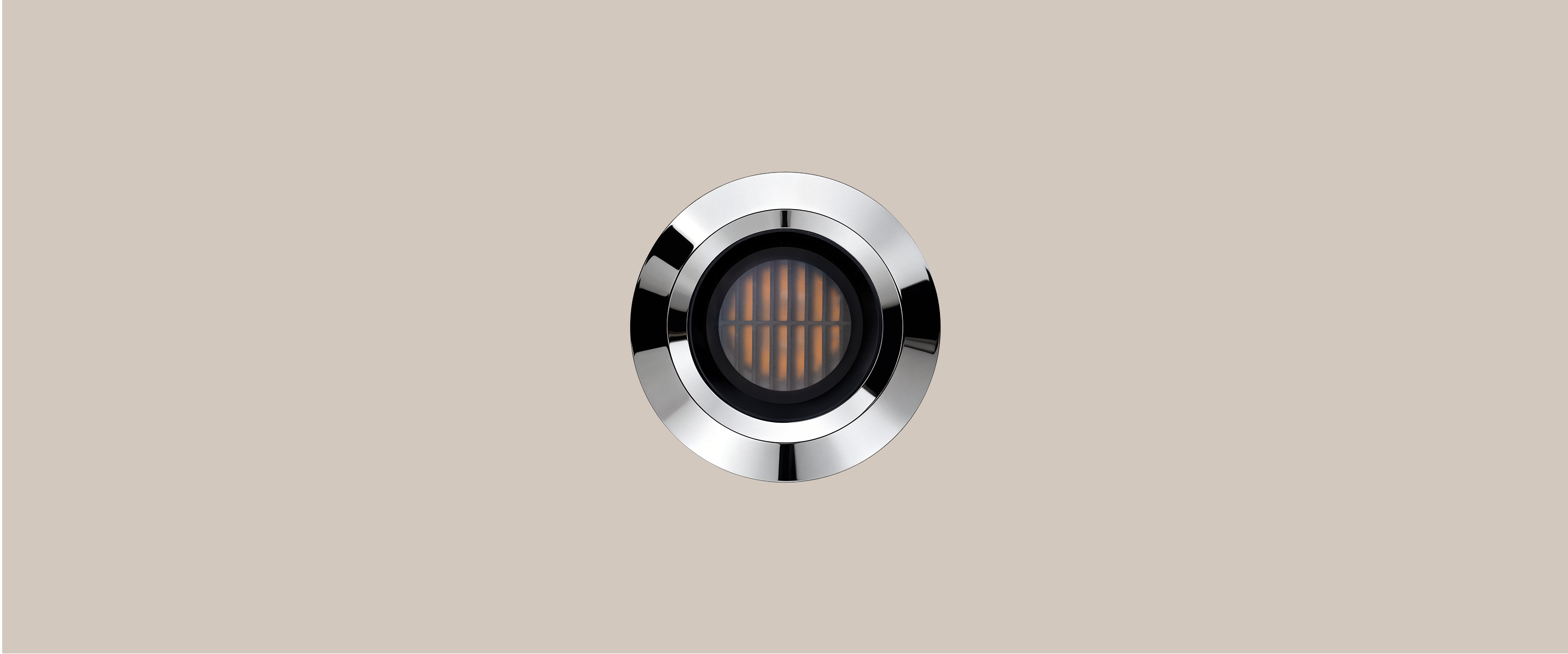

- Accessories:
- Reflector Color:
- Frame Color:
Select your Model No:Power(W)- Power(W)
- 5W
- 6W
- 7W
Beam Angle- Beam Angle
- 15°
- 20°
- 24°
- 30°
- 34°
- 36°
- 42°
CRI- CRI
- >90
Color- Color
- 2700K
- 3000K
- 4000K
Control- Control
- ON/OFF//0-10V/DALI/DMX
Dimming type- Dimming type
- 1-Non Dim
- 3-0-10V dimming
- 4-DALI dimming
- 5-DMX512
Finish- Finish
- A3-Stainless
Reflector- Reflector
- N/A
IP Rating- IP Rating
- 65-IP65
- 67-IP67
Accessory- Accessory
- Honeycomb louver
- Silk-screened glass
- Power(W)
- 5W
- 6W
- 7W
- Beam Angle
- 15°
- 20°
- 24°
- 30°
- 34°
- 36°
- 42°
- CRI
- >90
- Color
- 2700K
- 3000K
- 4000K
- Control
- ON/OFF//0-10V/DALI/DMX
- Dimming type
- 1-Non Dim
- 3-0-10V dimming
- 4-DALI dimming
- 5-DMX512
- Finish
- A3-Stainless
- Reflector
- N/A
- IP Rating
- 65-IP65
- 67-IP67
- Accessory
- Honeycomb louver
- Silk-screened glass
Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Control
Specification
IES
DWG
manual
Favorite
- Model No
BB00211-05159027
BB00211-05159030
BB00211-05159040
BB00211(Grille)-05209027
BB00211(Grille)-05209030
BB00211(Grille)-05209040
BB00211-05249027
BB00211-05249030
BB00211-05249040
BB00211(Grille)-05249027
BB00211(Grille)-05249030
BB00211(Grille)-05249040
BB00211-05349027
BB00211-05349030
BB00211-05349040
BB00211(Grille)-05309027
BB00211(Grille)-05309030
BB00211(Grille)-05309040
BB00211-05429027
BB00211-05429030
BB00211-05429040
BB00211(Grille)-05369027
BB00211(Grille)-05369030
BB00211(Grille)-05369040
BB00211-06159027
BB00211-06159030
BB00211-06159040
BB00211(Grille)-06209027
BB00211(Grille)-06209030
BB00211(Grille)-06209040
BB00211-06249027
BB00211-06249030
BB00211-06249040
BB00211(Grille)-06249027
BB00211(Grille)-06249030
BB00211(Grille)-06249040
BB00211-06349027
BB00211-06349030
BB00211-06349040
BB00211(Grille)-06309027
BB00211(Grille)-06309030
BB00211(Grille)-06309040
BB00211-06429027
BB00211-06429030
BB00211-06429040
BB00211(Grille)-06369027
BB00211(Grille)-06369030
BB00211(Grille)-06369040
BB00211-07159027
BB00211-07159030
BB00211-07159040
BB00211(Grille)-07209027
BB00211(Grille)-07209030
BB00211(Grille)-07209040
BB00211-07249027
BB00211-07249030
BB00211-07249040
BB00211(Grille)-07249027
BB00211(Grille)-07249030
BB00211(Grille)-07249040
BB00211-07349027
BB00211-07349030
BB00211-07349040
BB00211(Grille)-07309027
BB00211(Grille)-07309030
BB00211(Grille)-07309040
BB00211-07429027
BB00211-07429030
BB00211-07429040
BB00211(Grille)-07369027
BB00211(Grille)-07369030
BB00211(Grille)-07369040
- Luminous Flux (LM)
343LM
362LM
380LM
128LM
134LM
141LM
323LM
340LM
357LM
108LM
114LM
120LM
329LM
347LM
364LM
111LM
117LM
123LM
249LM
262LM
275LM
93LM
98LM
102LM
416LM
438LM
460LM
155LM
163LM
171LM
392LM
412LM
433LM
131LM
138LM
145LM
399LM
420LM
441LM
135LM
142LM
149LM
302LM
318LM
334LM
112LM
118LM
124LM
484LM
510LM
535LM
180LM
189LM
199LM
455LM
479LM
503LM
153LM
161LM
169LM
464LM
488LM
513LM
157LM
165LM
174LM
351LM
370LM
388LM
131LM
138LM
145LM
- Power (W)
5W
5W
5W
5W
5W
5W
5W
5W
5W
5W
5W
5W
5W
5W
5W
5W
5W
5W
5W
5W
5W
5W
5W
5W
6W
6W
6W
6W
6W
6W
6W
6W
6W
6W
6W
6W
6W
6W
6W
6W
6W
6W
6W
6W
6W
6W
6W
6W
7W
7W
7W
7W
7W
7W
7W
7W
7W
7W
7W
7W
7W
7W
7W
7W
7W
7W
7W
7W
7W
7W
7W
7W
- Beam Angle
15°
15°
15°
20°
20°
20°
24°
24°
24°
24°
24°
24°
34°
34°
34°
30°
30°
30°
42°
42°
42°
36°
36°
36°
15°
15°
15°
20°
20°
20°
24°
24°
24°
24°
24°
24°
34°
34°
34°
30°
30°
30°
42°
42°
42°
36°
36°
36°
15°
15°
15°
20°
20°
20°
24°
24°
24°
24°
24°
24°
34°
34°
34°
30°
30°
30°
42°
42°
42°
36°
36°
36°
- CRI
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
>90
- Color
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
- Control
ON/OFF//0-10V/DALI/DMX
ON/OFF//0-10V/DALI/DMX
ON/OFF//0-10V/DALI/DMX
ON/OFF//0-10V/DALI/DMX
ON/OFF//0-10V/DALI/DMX
ON/OFF//0-10V/DALI/DMX
ON/OFF//0-10V/DALI/DMX
ON/OFF//0-10V/DALI/DMX
ON/OFF//0-10V/DALI/DMX
ON/OFF//0-10V/DALI/DMX
ON/OFF//0-10V/DALI/DMX
ON/OFF//0-10V/DALI/DMX
ON/OFF//0-10V/DALI/DMX
ON/OFF//0-10V/DALI/DMX
ON/OFF//0-10V/DALI/DMX
ON/OFF//0-10V/DALI/DMX
ON/OFF//0-10V/DALI/DMX
ON/OFF//0-10V/DALI/DMX
ON/OFF//0-10V/DALI/DMX
ON/OFF//0-10V/DALI/DMX
ON/OFF//0-10V/DALI/DMX
ON/OFF//0-10V/DALI/DMX
ON/OFF//0-10V/DALI/DMX
ON/OFF//0-10V/DALI/DMX
ON/OFF//0-10V/DALI/DMX
ON/OFF//0-10V/DALI/DMX
ON/OFF//0-10V/DALI/DMX
ON/OFF//0-10V/DALI/DMX
ON/OFF//0-10V/DALI/DMX
ON/OFF//0-10V/DALI/DMX
ON/OFF//0-10V/DALI/DMX
ON/OFF//0-10V/DALI/DMX
ON/OFF//0-10V/DALI/DMX
ON/OFF//0-10V/DALI/DMX
ON/OFF//0-10V/DALI/DMX
ON/OFF//0-10V/DALI/DMX
ON/OFF//0-10V/DALI/DMX
ON/OFF//0-10V/DALI/DMX
ON/OFF//0-10V/DALI/DMX
ON/OFF//0-10V/DALI/DMX
ON/OFF//0-10V/DALI/DMX
ON/OFF//0-10V/DALI/DMX
ON/OFF//0-10V/DALI/DMX
ON/OFF//0-10V/DALI/DMX
ON/OFF//0-10V/DALI/DMX
ON/OFF//0-10V/DALI/DMX
ON/OFF//0-10V/DALI/DMX
ON/OFF//0-10V/DALI/DMX
ON/OFF//0-10V/DALI/DMX
ON/OFF//0-10V/DALI/DMX
ON/OFF//0-10V/DALI/DMX
ON/OFF//0-10V/DALI/DMX
ON/OFF//0-10V/DALI/DMX
ON/OFF//0-10V/DALI/DMX
ON/OFF//0-10V/DALI/DMX
ON/OFF//0-10V/DALI/DMX
ON/OFF//0-10V/DALI/DMX
ON/OFF//0-10V/DALI/DMX
ON/OFF//0-10V/DALI/DMX
ON/OFF//0-10V/DALI/DMX
ON/OFF//0-10V/DALI/DMX
ON/OFF//0-10V/DALI/DMX
ON/OFF//0-10V/DALI/DMX
ON/OFF//0-10V/DALI/DMX
ON/OFF//0-10V/DALI/DMX
ON/OFF//0-10V/DALI/DMX
ON/OFF//0-10V/DALI/DMX
ON/OFF//0-10V/DALI/DMX
ON/OFF//0-10V/DALI/DMX
ON/OFF//0-10V/DALI/DMX
ON/OFF//0-10V/DALI/DMX
ON/OFF//0-10V/DALI/DMX
