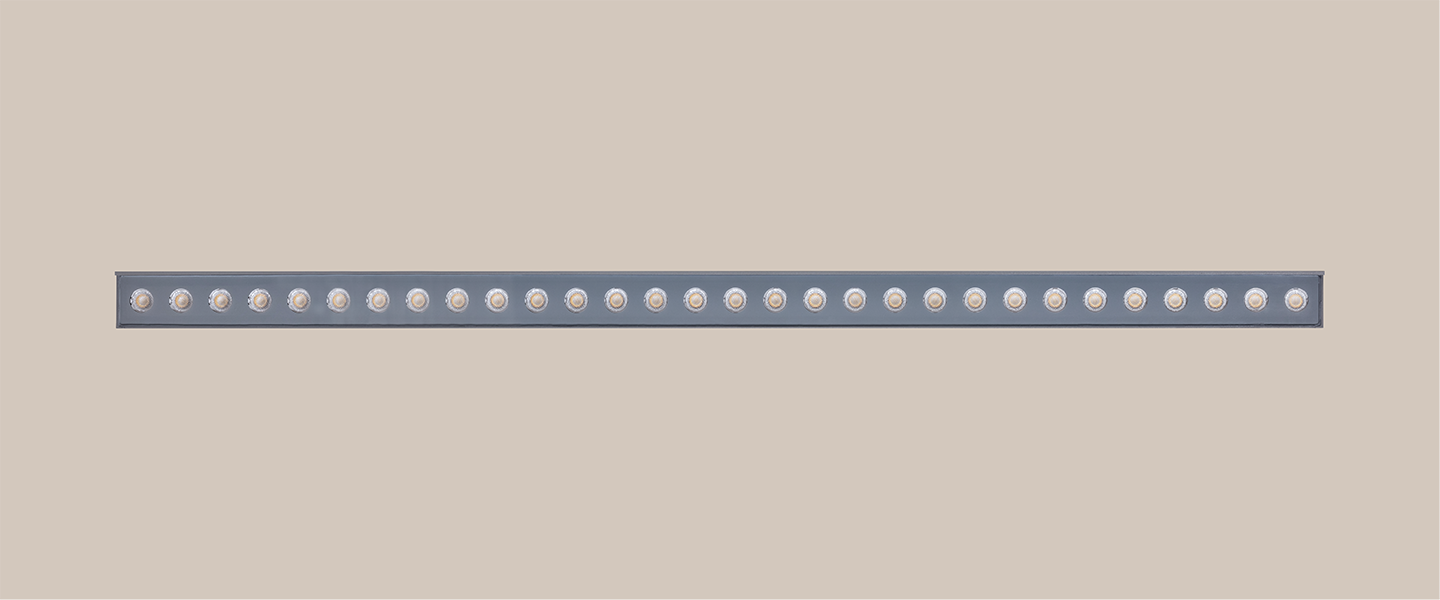

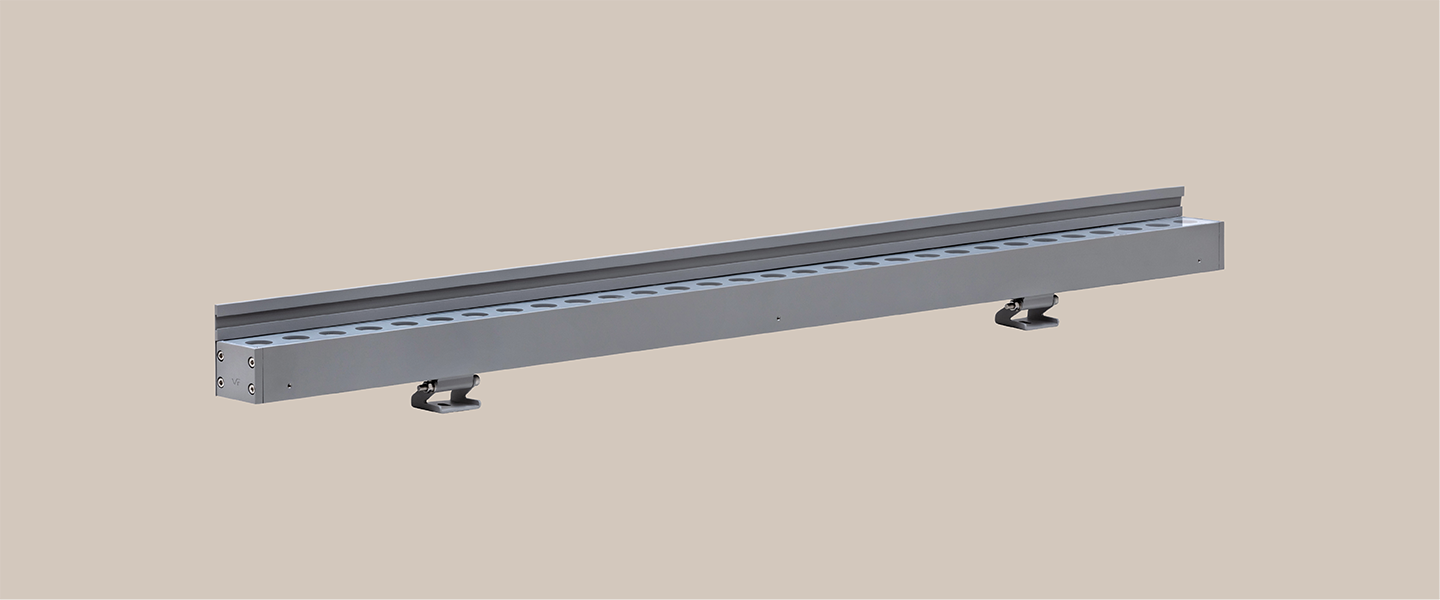

ARCUS 46
Wall Washer
ARCUS 46
ARCUS 46

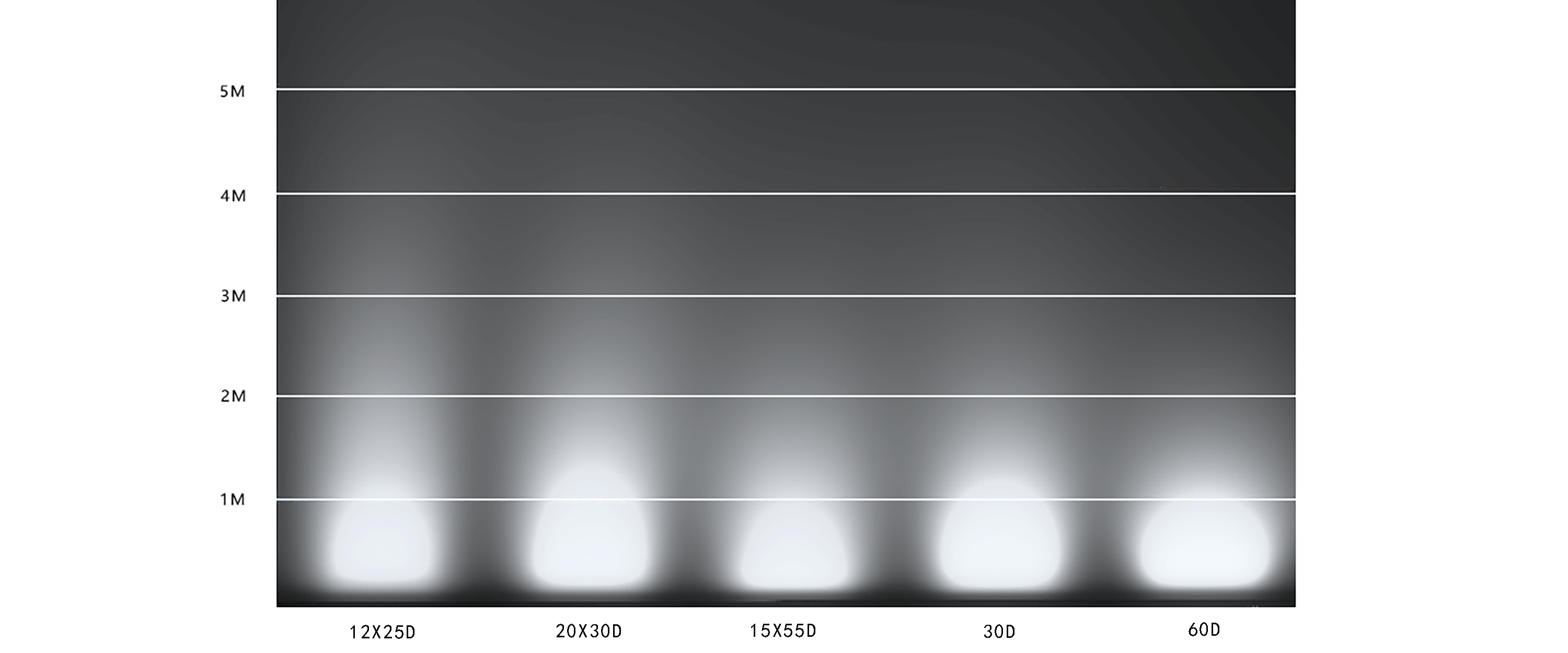

Lighting Effects
- Products Specification:
- Type:Wall Washer
- Beam Angle:12x25D 20x30D 15x55D 30D 60D
- Power:42W 54W
- Dimension:1000*45*68mm
- Weight:2.44kg
- CCT:2700K 3000K 4000K
- Heat-Sink:Aluminum
- Surface-Treatment:powder coating

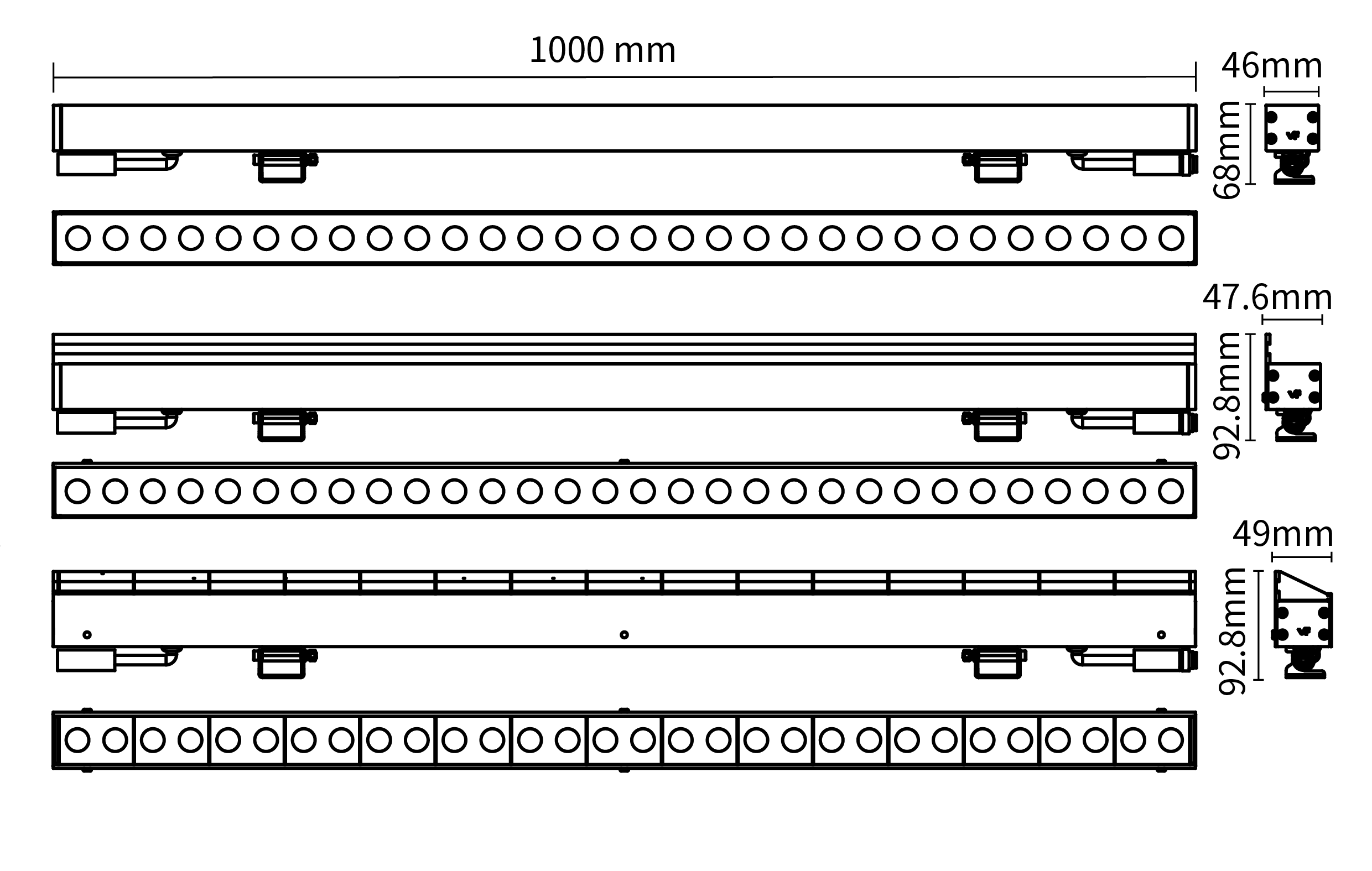

- Line Drawing:
- General Features:
- Accessories:
- Reflector Color:
- Frame Color:
Select your Model No:Power(W)- Power(W)
- 42W
- 54W
Beam Angle- Beam Angle
- 12°X25°
- 15°X55°
- 20°X30°
- 30°
- 60°
CRI- CRI
- >80
Color- Color
- 2700K
- 3000K
- 4000K
Control- Control
Dimming type- Dimming type
- 1-Non Dim
- 4-DALI dimming
- 5-DMX512
Finish- Finish
- 94-Outdoor grey
Reflector- Reflector
- N/A
IP Rating- IP Rating
- 66-IP66
Accessory- Accessory
- N/A
- Power(W)
- 42W
- 54W
- Beam Angle
- 12°X25°
- 15°X55°
- 20°X30°
- 30°
- 60°
- CRI
- >80
- Color
- 2700K
- 3000K
- 4000K
- Control
- Dimming type
- 1-Non Dim
- 4-DALI dimming
- 5-DMX512
- Finish
- 94-Outdoor grey
- Reflector
- N/A
- IP Rating
- 66-IP66
- Accessory
- N/A
Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Control
Specification
IES
DWG
manual
Favorite
- Model No
BL00103-42308027
BL00103-42308030
BL00103-42308040
BL00103-42608027
BL00103-42608030
BL00103-42608040
BL00103-4212258027
BL00103-4212258030
BL00103-4212258040
BL00103-4220308027
BL00103-4220308030
BL00103-4220308040
BL00103-4215558027
BL00103-4215558030
BL00103-4215558040
BL00103-54308027
BL00103-54308030
BL00103-54308040
BL00103-54608027
BL00103-54608030
BL00103-54608040
BL00103-5412258027
BL00103-5412258030
BL00103-5412258040
BL00103-5420308027
BL00103-5420308030
BL00103-5420308040
BL00103-5415558027
BL00103-5415558030
BL00103-5415558040
- Luminous Flux (LM)
4230LM
4103LM
4353LM
3995LM
3875LM
4083LM
4035LM
3914LM
4147LM
4320LM
4190LM
4437LM
3656LM
3546LM
3752LM
5047LM
4895LM
5130LM
4751LM
4608LM
4792LM
4772LM
4628LM
4774LM
5218LM
5061LM
5226LM
4281LM
4153LM
4373LM
- Power (W)
42W
42W
42W
42W
42W
42W
42W
42W
42W
42W
42W
42W
42W
42W
42W
54W
54W
54W
54W
54W
54W
54W
54W
54W
54W
54W
54W
54W
54W
54W
- Beam Angle
30°
30°
30°
60°
60°
60°
12°X25°
12°X25°
12°X25°
20°X30°
20°X30°
20°X30°
15°X55°
15°X55°
15°X55°
30°
30°
30°
60°
60°
60°
12°X25°
12°X25°
12°X25°
20°X30°
20°X30°
20°X30°
15°X55°
15°X55°
15°X55°
- CRI
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
>80
- Color
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
- Control
- Specification
- DWG
- IES
- manual
- Favorite
