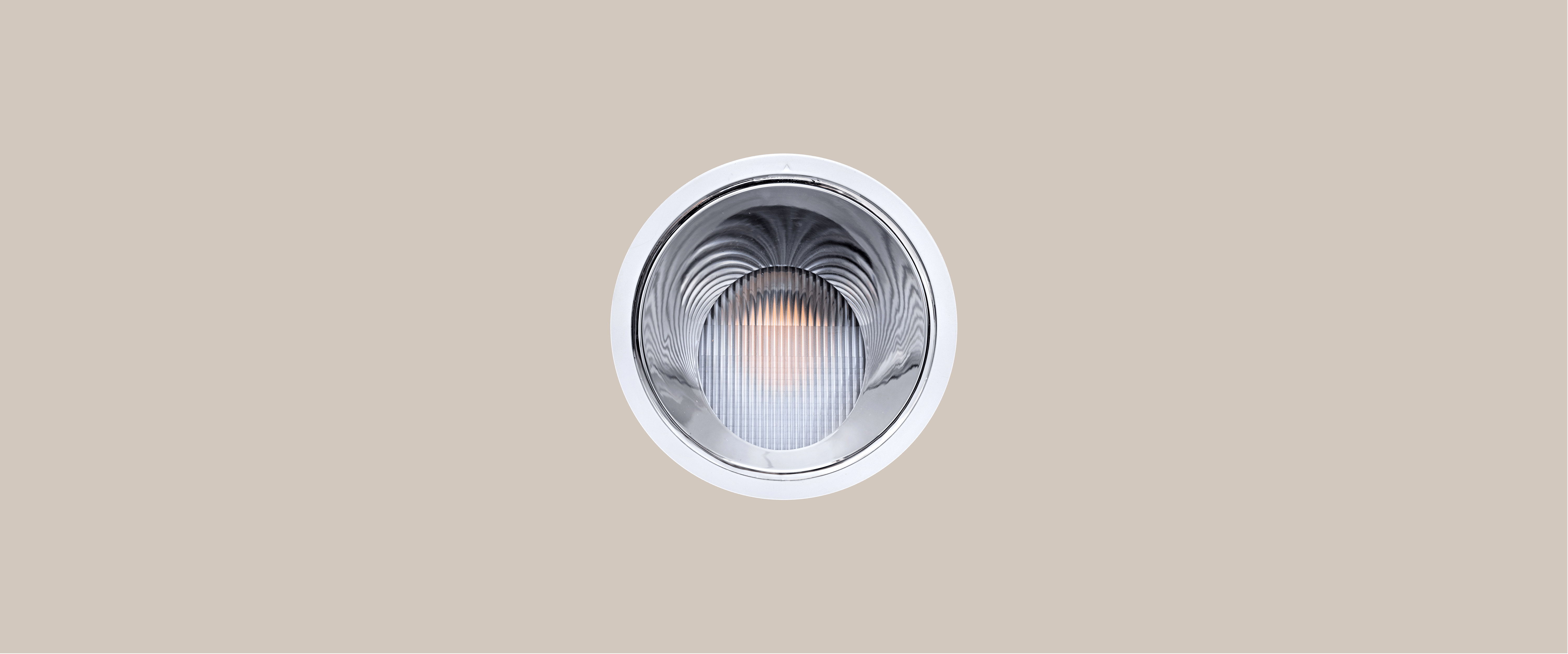

ALPS 125

Fixed Recessed Wall Washer

ALPS 125

Wisdom of european and chinese coopration.

ALPS 125

Wisdom of european and chinese coopration.

ALPS 125

Wisdom of european and chinese coopration.

As a part of space lighting, ambient lighting is a basic lighting, but the requirements are still very high. It need not only high efficiency and the comfortable low glare light, but also to achieve an even and soft high quality output of light under the circumstance of wide grading, which requests strictly to the integral design of lamps. Alps is a joint developed products between VF R&D team and European lighting experts, providing the best choice for ambient lighting.
The rapid installation screw of selfadaption to ceiling thickness protects the structure of ceiling and provides convenience for later maintenance. Alps has achieved good harmony and unity in terms of lamp efficiency, light quality, visual comfort, lighting installation and maintenance, and industrial design. It is a model for the new technology of basic lighting fixtures.

Lighting Effects

Products Specification:
Type:Fixed Recessed Wall Washer
Cut-Out:ø 125 mm
Power:30W 35W 40W
Beam Angle:
Weight:1.01kg
Heat-Sink:Aluminum alloy
Surface-Treatment:Painting
Line Drawing:
General Features:

Accessories :
Reflector Color:
Frame Color:

Select your Model No:

*Please log in before selecting your Model No

Power(W)
  • Power(W)
  • 30W
  • 35W
  • 40W
Beam Angle
  • Beam Angle
CRI
  • CRI
  • Ra>90
Color
  • Color
  • 2700K
  • 3000K
  • 4000K
Dimming type
  • Dimming type
  • 1-Non Dim
  • 2-Phase dimming
  • 3-0-10V dimming
  • 4-DALI dimming
Finish
  • Finish
  • 01-White
Reflector
  • Reflector
  • Mirror
IP Rating
  • IP Rating
  • 20-IP20
Accessory
  • Accessory
  • N/A
  • Model No

  • Luminaire lumen(LM)

  • Power (W)

  • Beam Angle

  • CRI

  • Color

  • Specification

  • IES

  • DWG

  • manual

  • Favorite

Model No

DR01113-30XX9027

DR01113-30XX9030

DR01113-30XX9040

DR01113-35XX9027

DR01113-35XX9030

DR01113-35XX9040

DR01113-40XX9027

DR01113-40XX9030

DR01113-40XX9040

Luminous Flux (LM)

1587LM

1671LM

1748LM

1881LM

1980LM

2072LM

2022LM

2128LM

2210LM

Power (W)

30W

30W

30W

35W

35W

35W

40W

40W

40W

Beam Angle

CRI

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Color

2700K

3000K

4000K

2700K

3000K

4000K

2700K

3000K

4000K

Specification
IES
DWG
manual
Favorite

Application
