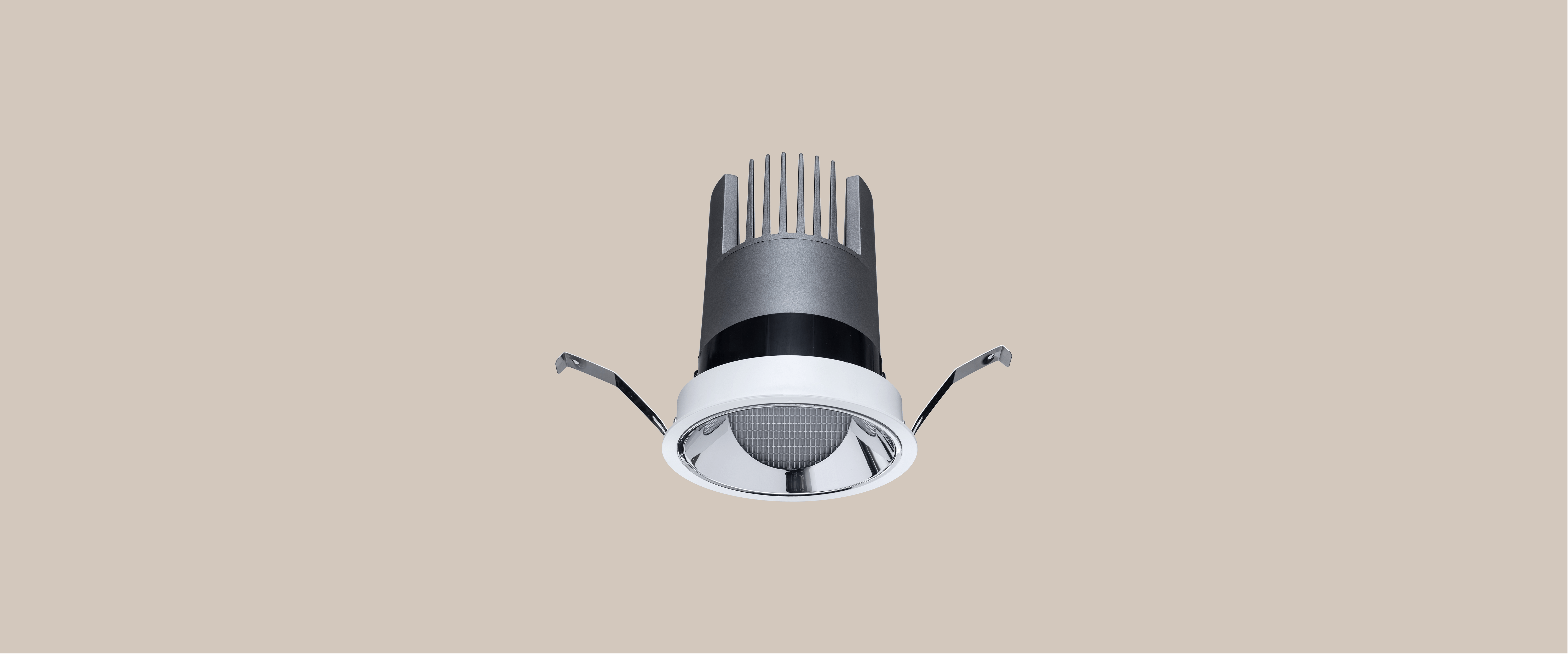

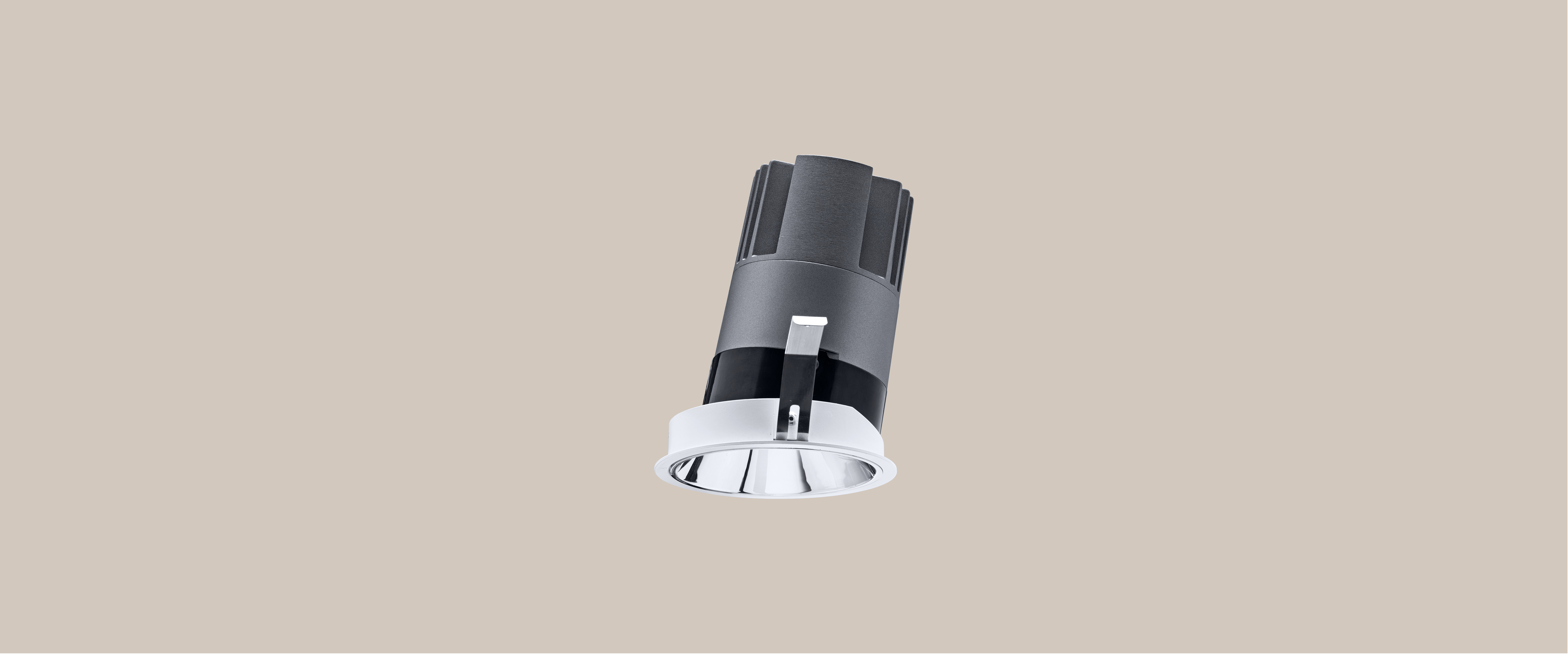

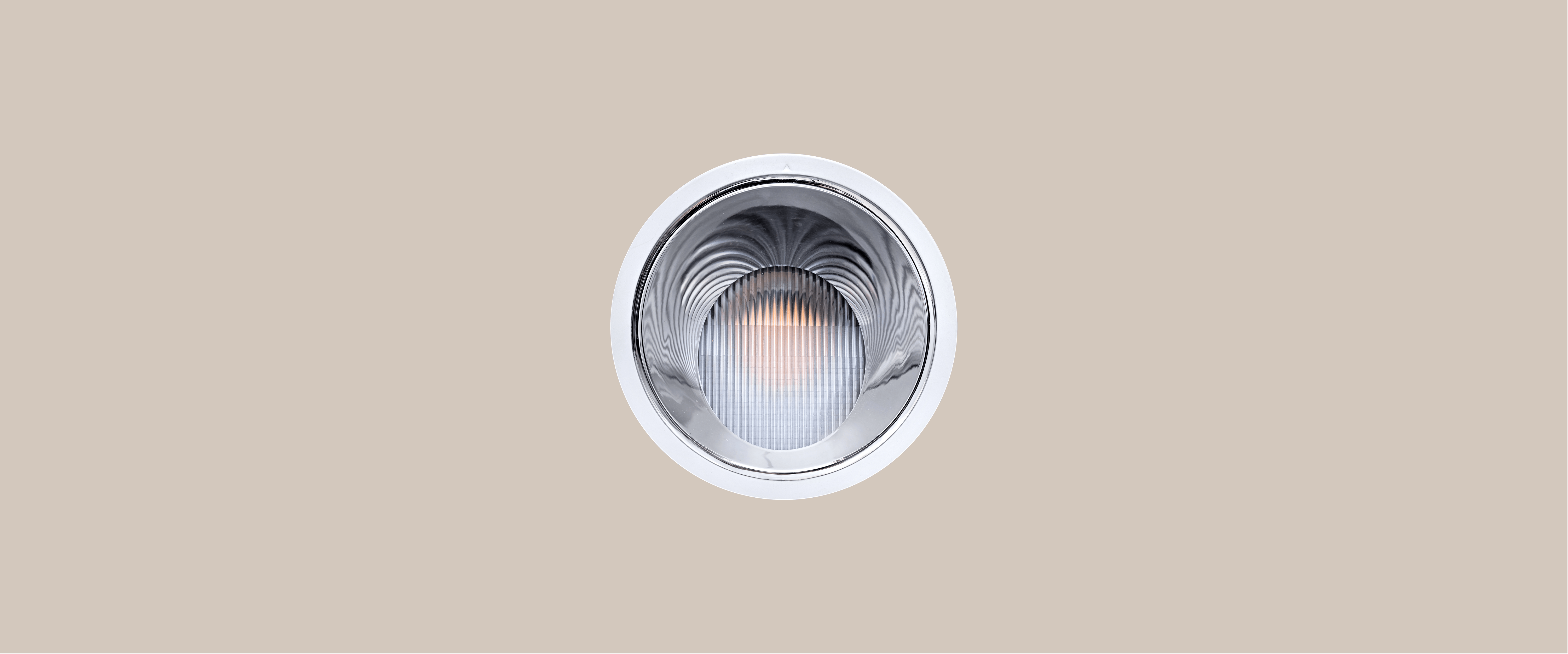

ALPS 100

Fixed Recessed Wall Washer

ALPS 100

Wisdom of european and chinese coopration.

ALPS 100

Wisdom of european and chinese coopration.

ALPS 100

Wisdom of european and chinese coopration.

As a part of space lighting, ambient lighting is a basic lighting, but the requirements are still very high. It need not only high efficiency and the comfortable low glare light, but also to achieve an even and soft high quality output of light under the circumstance of wide grading, which requests strictly to the integral design of lamps. Alps is a joint developed products between VF R&D team and European lighting experts, providing the best choice for ambient lighting.
The rapid installation screw of selfadaption to ceiling thickness protects the structure of ceiling and provides convenience for later maintenance. Alps has achieved good harmony and unity in terms of lamp efficiency, light quality, visual comfort, lighting installation and maintenance, and industrial design. It is a model for the new technology of basic lighting fixtures.

Lighting Effects

Products Specification:
Type:Fixed Recessed Wall Washer
Cut-Out:ø 100 mm
Power:12W 15W 20W 25W 30W
Beam Angle:
Weight:0.46kg
Heat-Sink:Aluminum alloy
Surface-Treatment:Painting
Line Drawing:
General Features:

Accessories :
Reflector Color:
Frame Color:

Select your Model No:

*Please log in before selecting your Model No

Power(W)
  • Power(W)
  • 12W
  • 15W
  • 20W
  • 25W
  • 30W
Beam Angle
  • Beam Angle
CRI
  • CRI
  • Ra>90
Color
  • Color
  • 2700K
  • 3000K
  • 4000K
Dimming type
  • Dimming type
  • 1-Non Dim
  • 2-Phase dimming
  • 3-0-10V dimming
  • 4-DALI dimming
Finish
  • Finish
  • 01-White
Reflector
  • Reflector
  • Mirror
IP Rating
  • IP Rating
  • 20-IP20
Accessory
  • Accessory
  • N/A
  • Model No

  • Luminaire lumen(LM)

  • Power (W)

  • Beam Angle

  • CRI

  • Color

  • Specification

  • IES

  • DWG

  • manual

  • Favorite

Model No

DR01112-12XX9027

DR01112-12XX9030

DR01112-12XX9040

DR01112-15XX9027

DR01112-15XX9030

DR01112-15XX9040

DR01112-20XX9027

DR01112-20XX9030

DR01112-20XX9040

DR01112-25XX9027

DR01112-25XX9030

DR01112-25XX9040

DR01112-30XX9027

DR01112-30XX9030

DR01112-30XX9040

Luminous Flux (LM)

742LM

781LM

794LM

850LM

895LM

919LM

1177LM

1239LM

1261LM

1356LM

1428LM

1452LM

1558LM

1640LM

1679LM

Power (W)

12W

12W

12W

15W

15W

15W

20W

20W

20W

25W

25W

25W

30W

30W

30W

Beam Angle

CRI

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Color

2700K

3000K

4000K

2700K

3000K

4000K

2700K

3000K

4000K

2700K

3000K

4000K

2700K

3000K

4000K

Specification
IES
DWG
manual
Favorite
