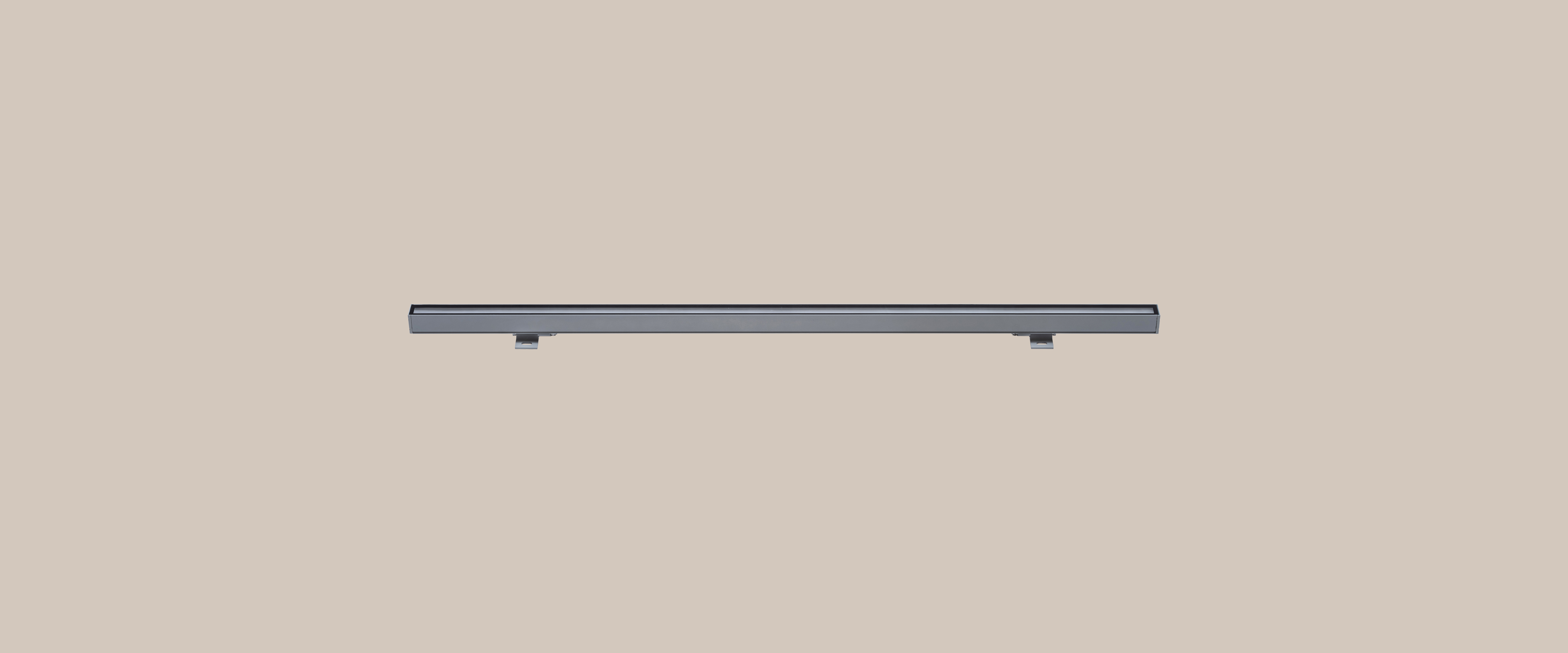

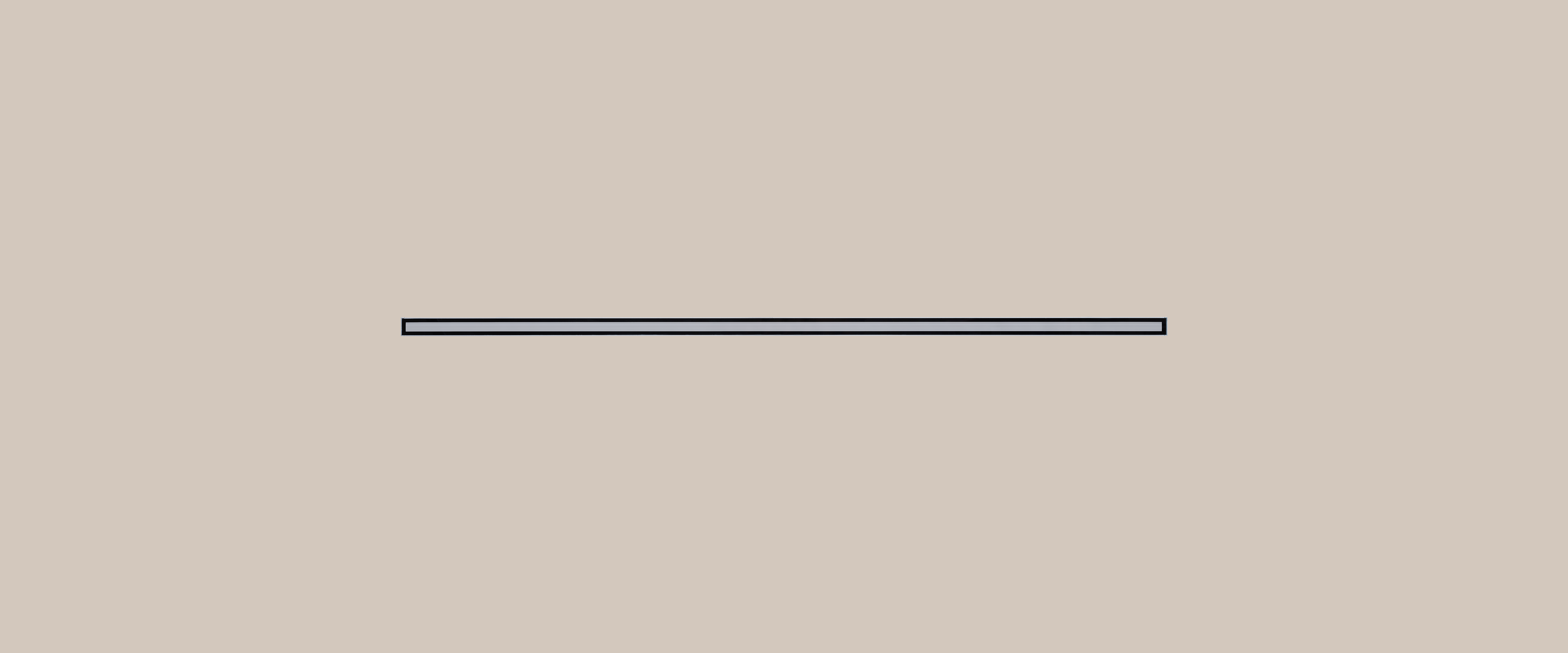

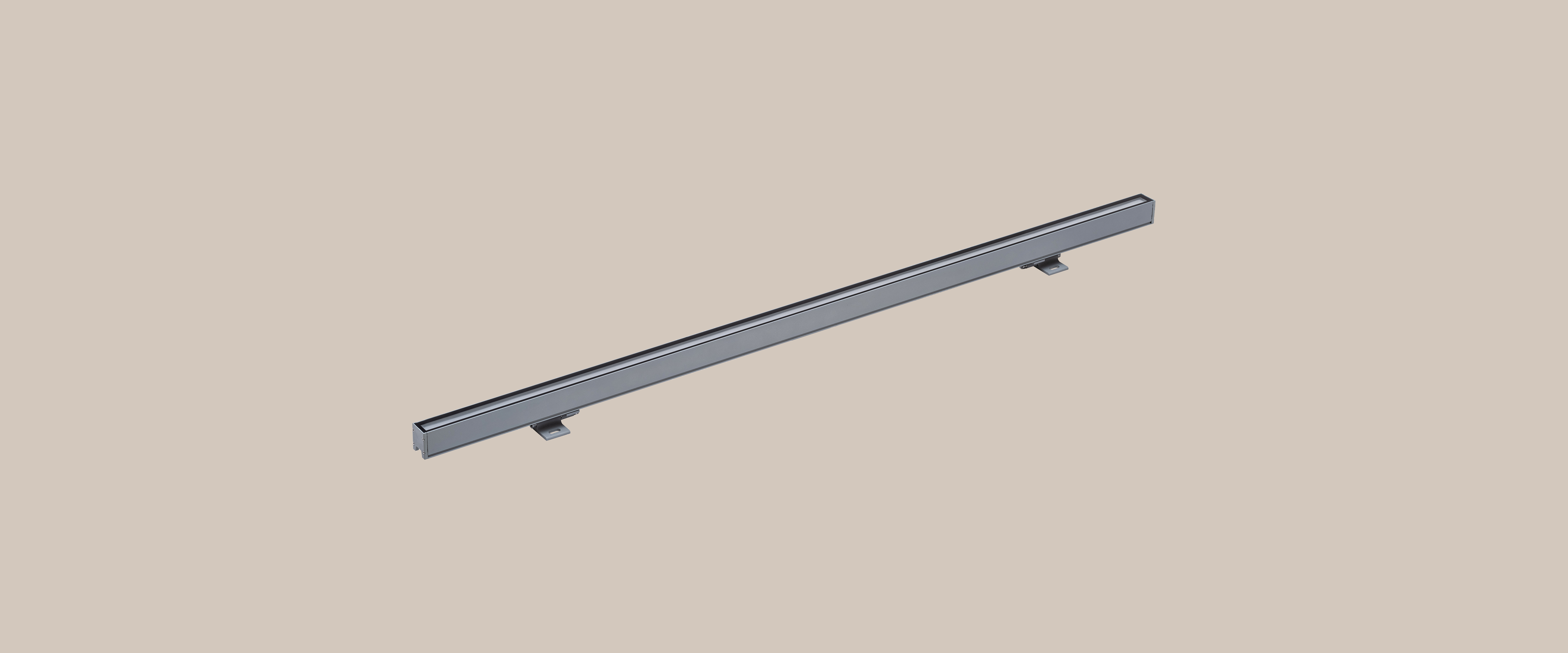

MIZAR 25
Ground-mounted linear wall washer
MIZAR 25
MIZAR 25
MIZAR 25
Lighting Effects
- Products Specification:
- Type:Ground-mounted linear wall washer
- Beam Angle:30X80D
- Power:12W 15W 18W 24W
- CCT:2700K 3000K 4000K
- Weight:0.7kg
- Heat-Sink:Aluminum
- Surface-Treatment:painting

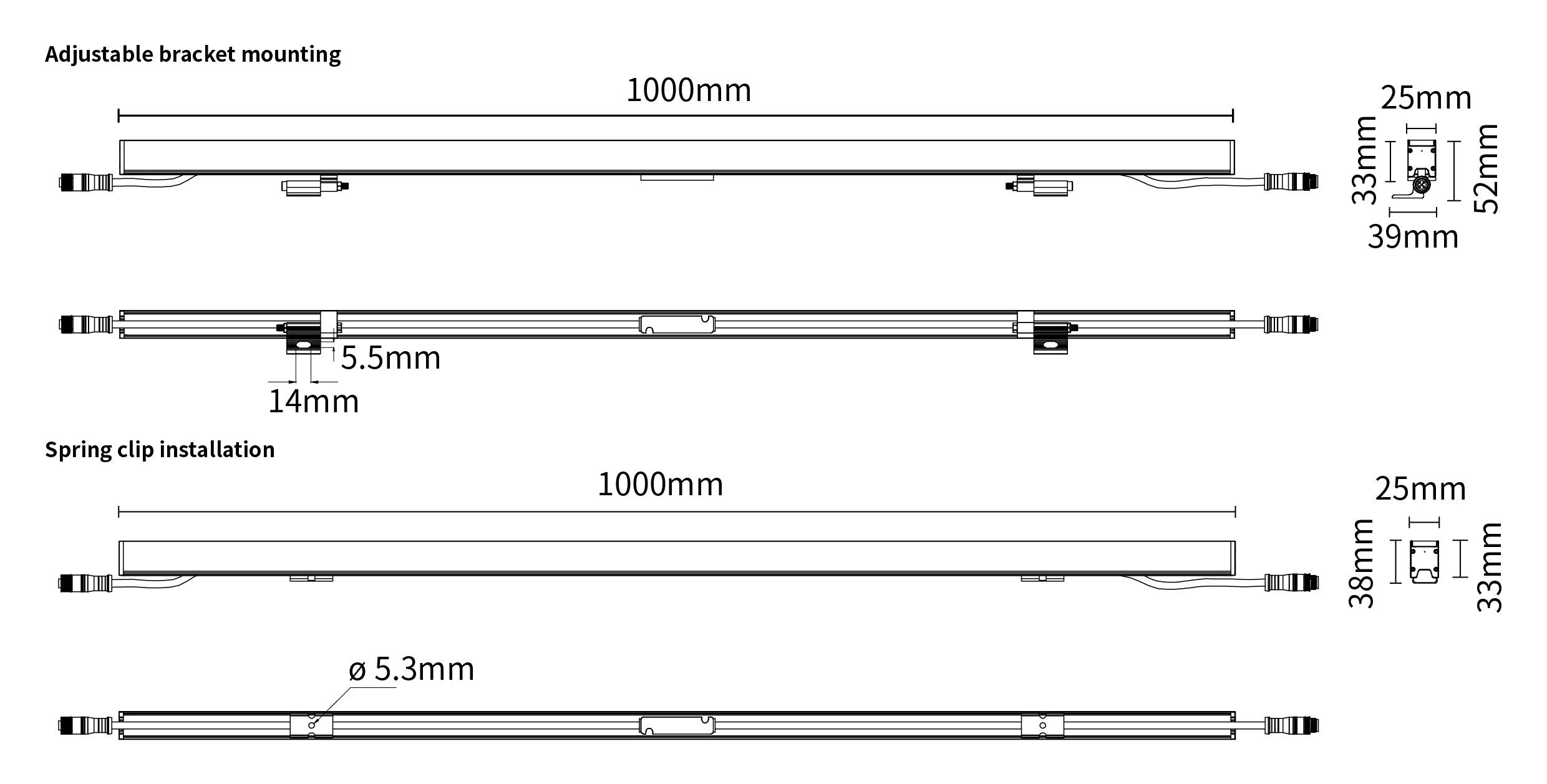

- Line Drawing:
- General Features:
- Accessories:
- Reflector Color:
- Frame Color:
Select your Model No:Power(W)- Power(W)
- 12W
- 15W
- 18W
- 24W
Beam Angle- Beam Angle
- 30x80°
CRI- CRI
- Ra>90
Color- Color
- 2700K
- 3000K
- 4000K
Control- Control
Dimming type- Dimming type
- 1-Non Dim
- 5-DMX512
Finish- Finish
- Outdoor grey
Reflector- Reflector
- Black screen-printed edge
- Gray screen-printed edge
IP Rating- IP Rating
- 67-IP67
Accessory- Accessory
- /
Power(W)
- Power(W)
- 12W
- 15W
- 18W
- 24W
Beam Angle
- Beam Angle
- 30x80°
CRI
- CRI
- Ra>90
Color
- Color
- 2700K
- 3000K
- 4000K
Control
- Control
Dimming type
- Dimming type
- 1-Non Dim
- 5-DMX512
Finish
- Finish
- Outdoor grey
Reflector
- Reflector
- Black screen-printed edge
- Gray screen-printed edge
IP Rating
- IP Rating
- 67-IP67
Accessory
- Accessory
- /
Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Control
Specification
IES
DWG
manual
Favorite
- Model No
LL00203-12A19027
LL00203-12A19030
LL00203-12A19040
LL00203-15A19027
LL00203-15A19030
LL00203-15A19040
LL00203-18A19027
LL00203-18A19030
LL00203-18A19040
LL00203-24A19027
LL00203-24A19030
LL00203-24A19040
- Luminous Flux (LM)
507LM
534LM
561LM
634LM
668LM
701LM
761LM
801LM
842LM
1015LM
1069LM
1122LM
- Power (W)
12W
12W
12W
15W
15W
15W
18W
18W
18W
24W
24W
24W
- Beam Angle
30x80°
30x80°
30x80°
30x80°
30x80°
30x80°
30x80°
30x80°
30x80°
30x80°
30x80°
30x80°
- CRI
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
- Color
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
- Control
