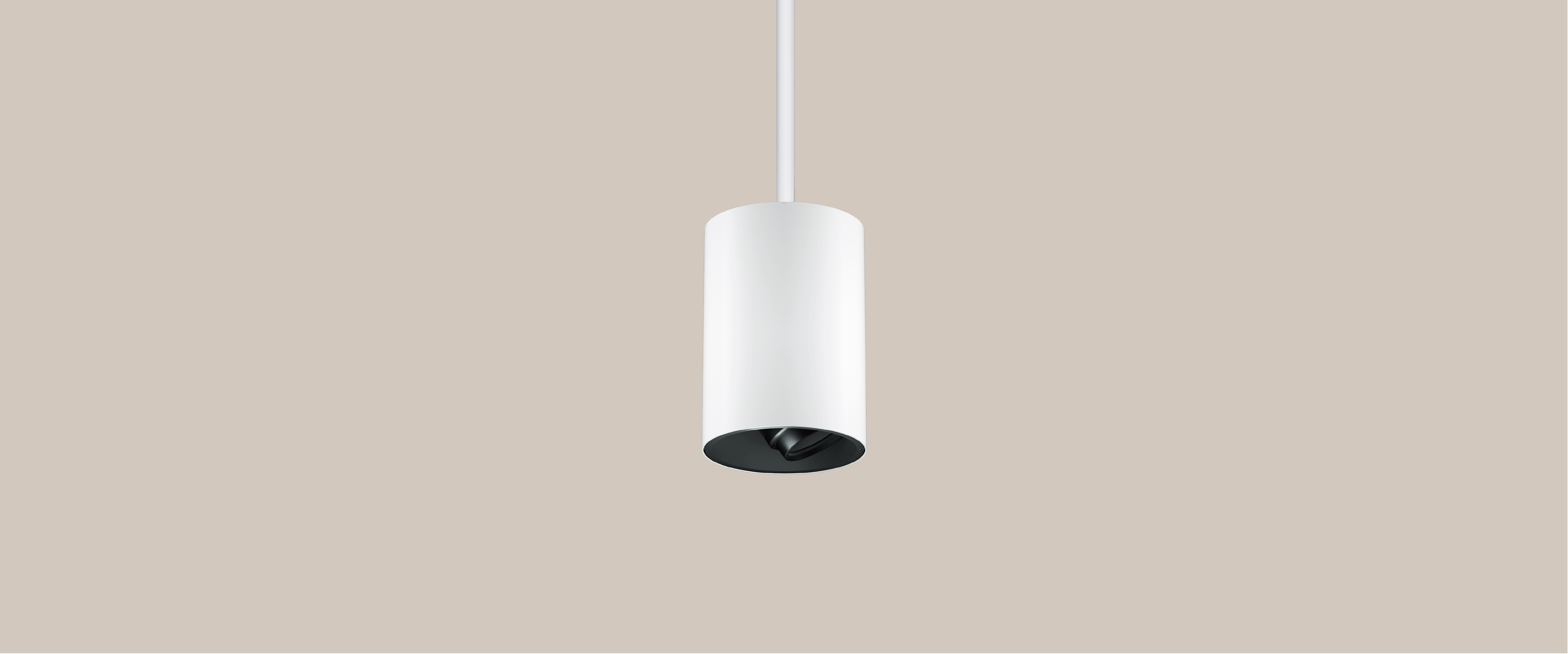

POYO 80

Adjustable Pendant Downlight

POYO 80

Looking forward to being shining like the jade is waiting for carving

POYO is surface-mounted light on the ceiling or wall, the internal driving design hid the driver perfectly. A wide optional range of appearance, the whole series is included small, medium and large sizes. The adjustable structure has a horizontal rotation of 350 degrees

and a vertical angle of 30 degrees to achievethe precise adjustment of the illuminated object. From 5W to 80W, a complete range of beam angle supports the application from small space to high space

Lighting Effects

Products Specification:: Type:Adjustable Suspended Downlight; Beam Angle:15D 27D 37D 58D; Power:5W 8W; CCT:2700K 3000K 4000K; Heat-Sink:Aluminum; Surface-Treatment:painting+plating

Line Drawing:

General Features:

Accessories:

Reflector Color:

Frame Color:

Select your Model No:

Power(W)

Power(W)
5W
8W

Beam Angle

Beam Angle
15°
27°
37°
58°

CRI

CRI
Ra>90

Color

Color
2700K
3000K
4000K

Control

Control

Dimming type

Dimming type
1-Non Dim
3-0-10V dimming
4-DALI dimming

Finish

Finish
Outdoor black
Outdoor white
Outdoor grey

Reflector

Reflector
Mirror

IP Rating

IP Rating
20-IP20
65-IP65

Accessory

Accessory
Honeycomb louver
Cross louver

Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Control
Specification
IES
DWG
manual
Favorite

Model No: DP00802-05159027; DP00802-05159030; DP00802-05159040; DP00802-05279027; DP00802-05279030; DP00802-05279040; DP00802-05379027; DP00802-05379030; DP00802-05379040; DP00802-05589027; DP00802-05589030; DP00802-05589040; DP00802-08159027; DP00802-08159030; DP00802-08159040; DP00802-08279027; DP00802-08279030; DP00802-08279040; DP00802-08379027; DP00802-08379030; DP00802-08379040; DP00802-08589027; DP00802-08589030; DP00802-08589040

Luminous Flux (LM): 314LM; 331LM; 354LM; 312LM; 328LM; 348LM; 384LM; 404LM; 424LM; 360LM; 379LM; 403LM; 486LM; 512LM; 547LM; 502LM; 529LM; 559LM; 619LM; 651LM; 681LM; 580LM; 611LM; 648LM

Power (W): 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W; 8W

Beam Angle: 15°; 15°; 15°; 27°; 27°; 27°; 37°; 37°; 37°; 58°; 58°; 58°; 15°; 15°; 15°; 27°; 27°; 27°; 37°; 37°; 37°; 58°; 58°; 58°

CRI: Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90

Color: 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K
