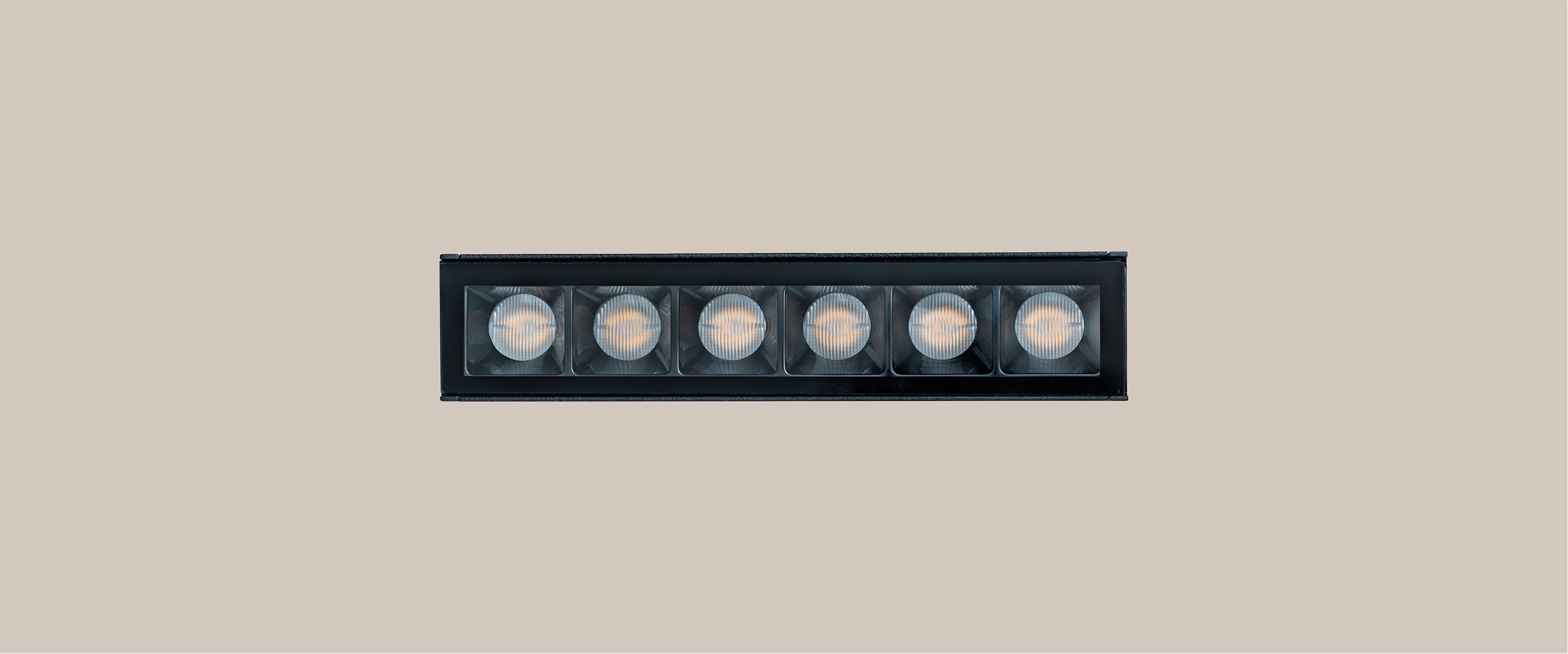

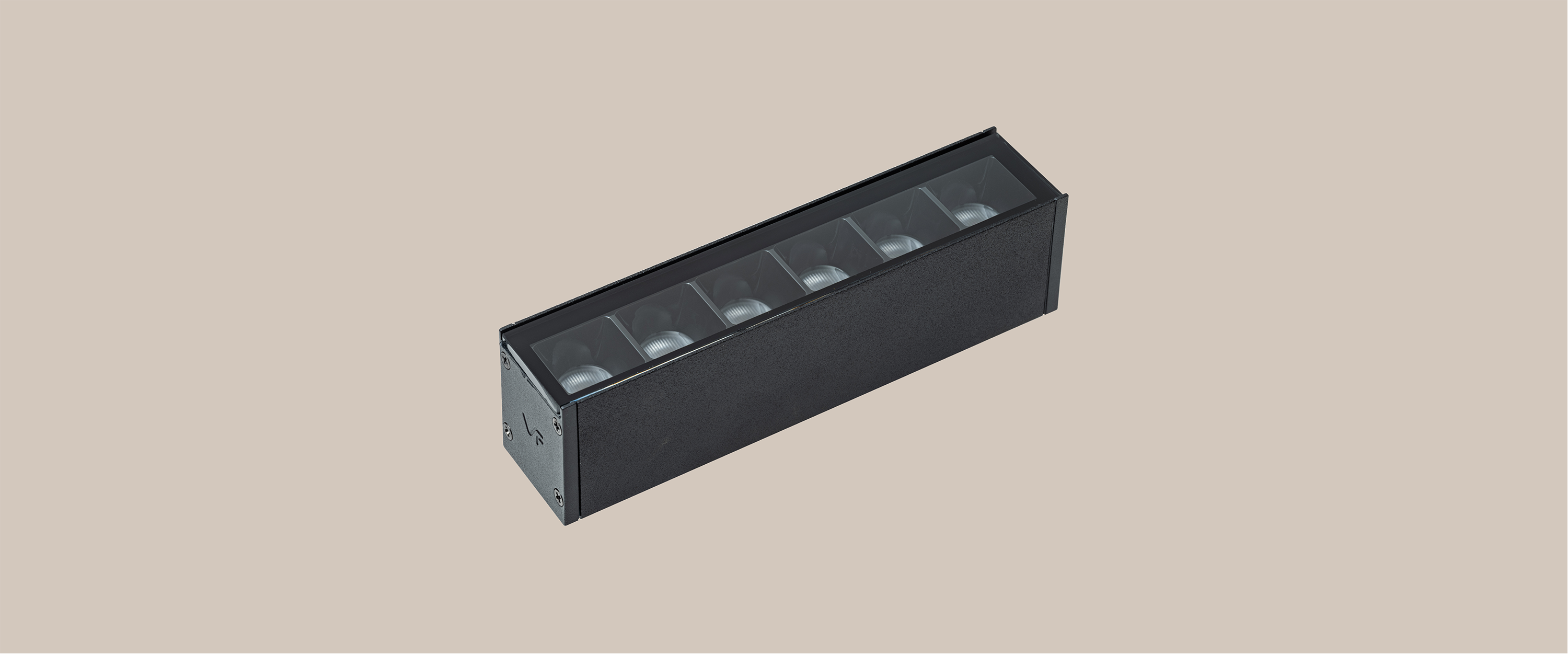

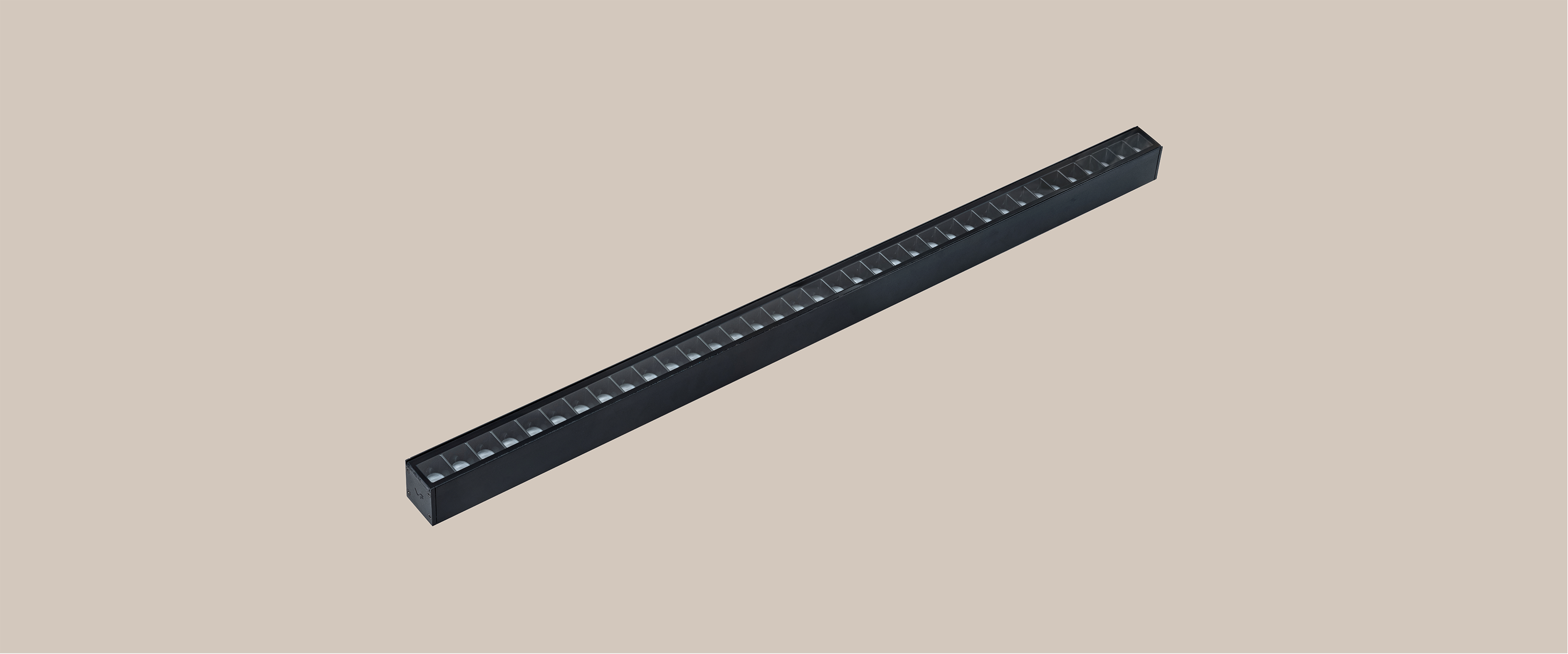

MIZAR 38
Linear In-ground Light
MIZAR 38
MIZAR 38
MIZAR 38
MIZAR 38
Lighting Effects
- Products Specification:
- Type:Linear In-ground Light
- Power:3W 6W 9W 12W 18W 36W
- Beam Angle:24x38D
- Weight:182mm/0.55kg 350mm /1.05kg 515mm/1.6kg 1015mm/3.3kg
- CCT:3000K
- Heat-Sink:Aluminum
- Surface-Treatment:painting
- Line Drawing:
- General Features:
- Accessories:
- Reflector Color:
- Frame Color:
Select your Model No:Power(W)- Power(W)
- 3W/0.182M
- 6W/0.35M
- 6W/0.182M
- 9W/0.515M
- 12W/0.35M
- 18W/1.015M
- 18W/0.515M
- 36W/1.015M
Beam Angle- Beam Angle
- 24*38°
CRI- CRI
- Ra>90
Color- Color
- 3000K
Control- Control
Dimming type- Dimming type
- 1-Non Dim
- 2-Phase dimming
- 3-0-10V dimming
- 4-DALI dimming
Finish- Finish
- 02-Black
Reflector- Reflector
- 2-Black
IP Rating- IP Rating
- 65-IP65
Accessory- Accessory
- 1-Honeycomb louver
- 4-Linear lens
Power(W)
- Power(W)
- 3W/0.182M
- 6W/0.35M
- 6W/0.182M
- 9W/0.515M
- 12W/0.35M
- 18W/1.015M
- 18W/0.515M
- 36W/1.015M
Beam Angle
- Beam Angle
- 24*38°
CRI
- CRI
- Ra>90
Color
- Color
- 3000K
Control
- Control
Dimming type
- Dimming type
- 1-Non Dim
- 2-Phase dimming
- 3-0-10V dimming
- 4-DALI dimming
Finish
- Finish
- 02-Black
Reflector
- Reflector
- 2-Black
IP Rating
- IP Rating
- 65-IP65
Accessory
- Accessory
- 1-Honeycomb louver
- 4-Linear lens
Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Control
Specification
IES
DWG
manual
Favorite
- Model No
LB00202-1015-3624389030
LB00202-1015-1824389030
LB00202-515-1824389030
LB00202-515-0924389030
LB00202-350-1224389030
LB00202-350-0624389030
LB00202-182-0624389030
LB00202-182-0324389030
- Luminous Flux (LM)
1835LM
862LM
1003LM
566LM
663LM
379LM
355.5LM
185LM
- Power (W)
36W/1.015M
18W/1.015M
18W/0.515M
9W/0.515M
12W/0.35M
6W/0.35M
6W/0.182M
3W/0.182M
- Beam Angle
24*38°
24*38°
24*38°
24*38°
24*38°
24*38°
24*38°
24*38°
- CRI
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
- Color
3000K
3000K
3000K
3000K
3000K
3000K
3000K
3000K
- Control
- Specification
- IES
- DWG
- manual
- Favorite
