MIZAR 60
Recessed Linear Wall Washer Light
MIZAR 60
MIZAR 60
Lighting Effects
- Products Specification:
- Type:Recessed Linear Wall Washer Light
- Cut-Out:61x1003mm
- Beam Angle:18x40D 25x65D
- Power:100W 120W
- Weight:2.05kg
- CCT:2700K 3000K 4000K
- Heat-Sink:Aluminum
- Surface-Treatment:painting+plating

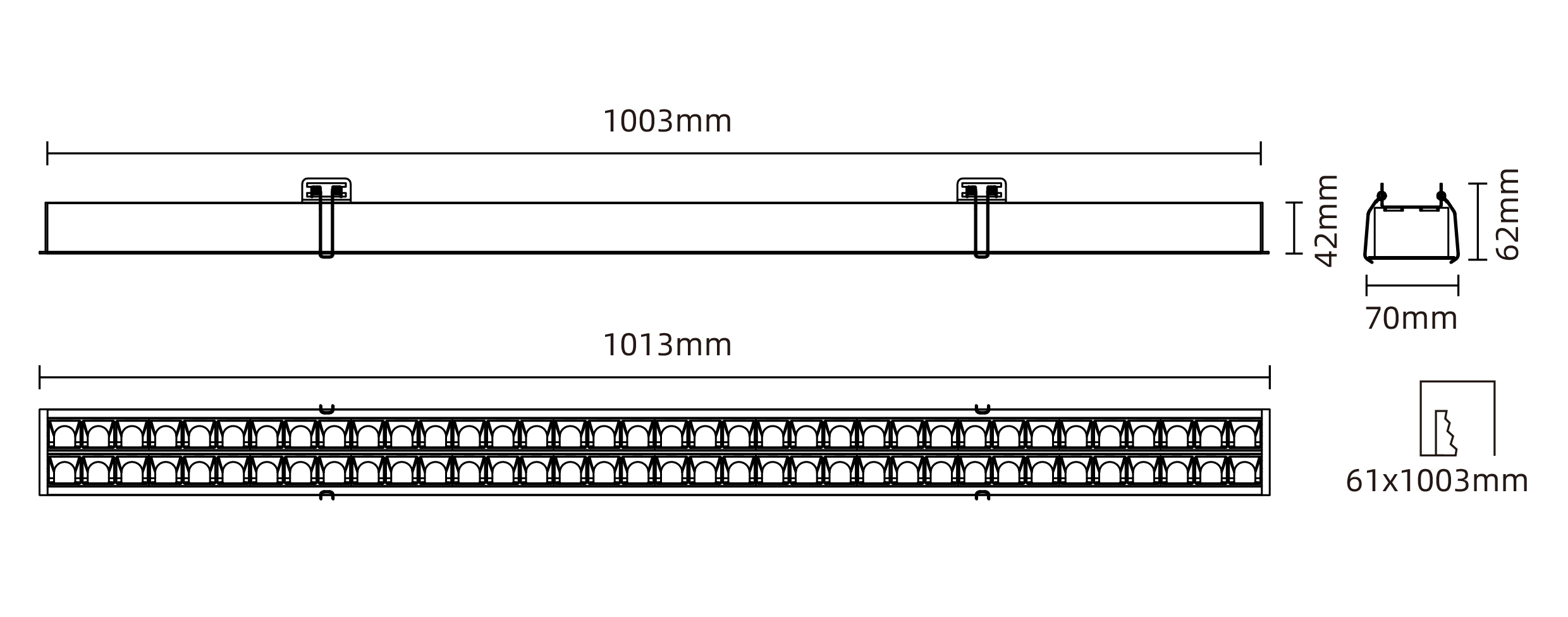

- Line Drawing:
- General Features:
- Accessories :
- Reflector Color:
- Frame Color:
Select your Model No:
*Please log in before selecting your Model No
Power(W)
- Power(W)
- 100W
- 120W
Beam Angle
- Beam Angle
- 18x40°
- 25x65°
CRI
- CRI
- Ra>90
Color
- Color
- 2700K
- 3000K
- 4000K
Dimming type
- Dimming type
- 1-Non Dim
- 3-0-10V dimming
- 4-DALI dimming
Finish
- Finish
- White
- Black
- Grey
Reflector
- Reflector
- Silver&black
IP Rating
- IP Rating
- 20-IP20
Accessory
- Accessory
Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Specification
IES
DWG
manual
Favorite
- Model No
LR00210-100A19027-W
LR00210-100A19030-W
LR00210-100A19040-W
LR00210-120A19027-W
LR00210-120A19030-W
LR00210-120A19040-W
LR00210-100A29027-W
LR00210-100A29030-W
LR00210-100A29040-W
LR00210-120A29027-W
LR00210-120A29030-W
LR00210-120A29040-W
- Luminous Flux (LM)
6523LM
6867LM
7228LM
7399LM
7789LM
8199LM
5316LM
5596LM
5890LM
6209LM
6536LM
6880LM
- Power (W)
100W
100W
100W
120W
120W
120W
100W
100W
100W
120W
120W
120W
- Beam Angle
18x40°
18x40°
18x40°
18x40°
18x40°
18x40°
25x65°
25x65°
25x65°
25x65°
25x65°
25x65°
- CRI
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
- Color
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
- Specification
