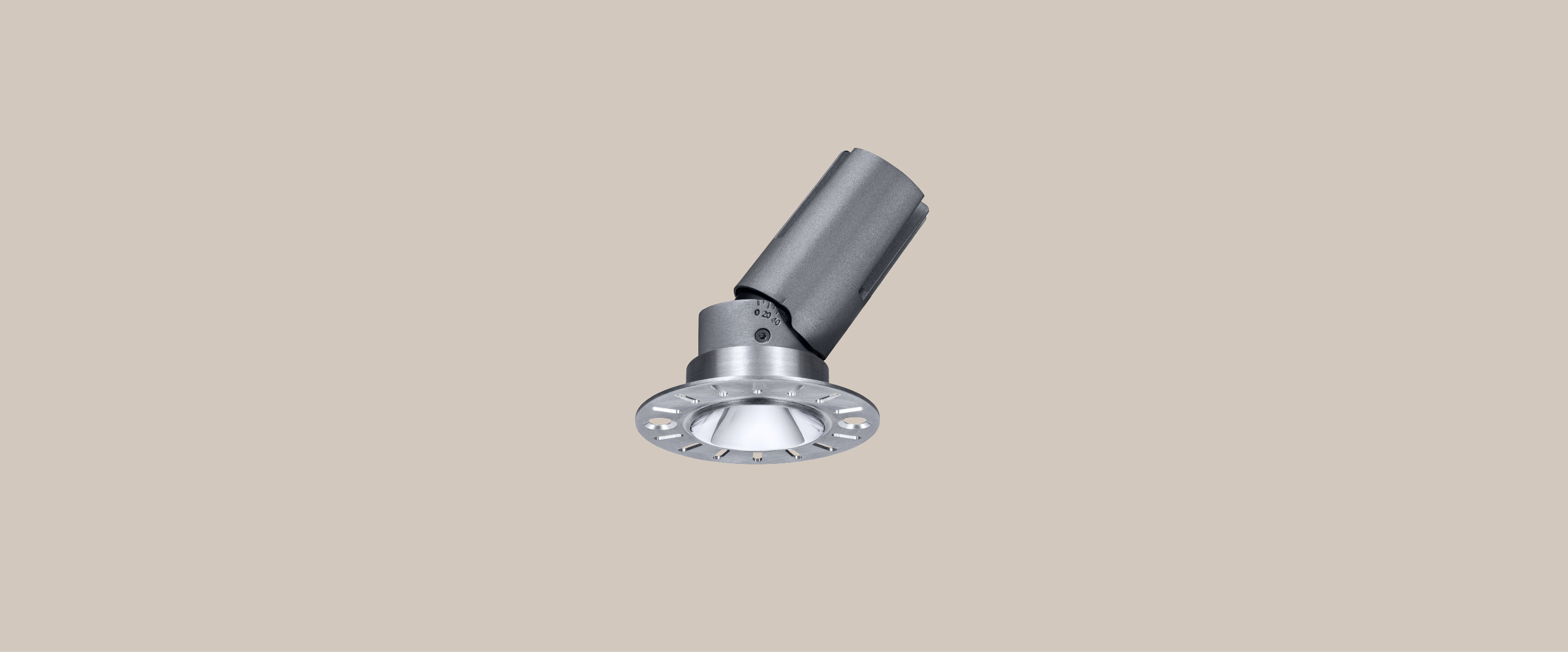

VIRTUE 40

Recessed Trimless Adjustable Downlight

VIRTUE 40

Lighting Effects

Products Specification:: Type:Recessed Trimless Adjustable Downlight; Cut-Out:ø 40 mm; Beam Angle:15° 26° 38° 45°; Power:5W 6.5W; CCT:2700K 3000K 4000K; Weight:0.072KG; Heat-Sink:Aluminum; Surface-Treatment:painting

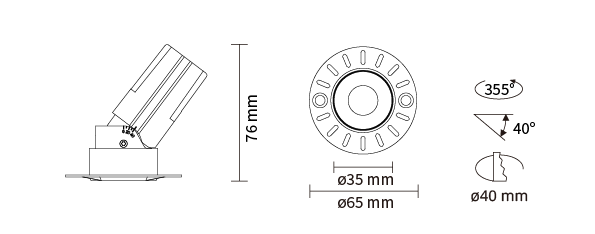

Line Drawing:

General Features:

Accessories :

Reflector Color:

Frame Color:

Select your Model No:
*Please log in before selecting your Model No

Power(W)

Power(W)
5W
6.5W

Beam Angle

Beam Angle
15°
26°
38°
45°

CRI

CRI
Ra>90

Color

Color
2700K
3000K
4000K

Dimming type

Dimming type
1-Non Dim
2-Phase dimming
3-0-10V dimming
4-DALI dimming

Finish

Finish
White
Black

Reflector

Reflector
Mirror
White
Black
Dark gold

IP Rating

IP Rating
20-IP20

Accessory

Accessory
Linear lens
Honeycomb louver
Soft lens

Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Specification
IES
DWG
manual
Favorite

Model No: DR01816-05159027; DR01816-05159030; DR01816-05159040; DR01816-05269027; DR01816-05269030; DR01816-05269040; DR01816-05389027; DR01816-05389030; DR01816-05389040; DR01816-05459027; DR01816-05459030; DR01816-05459040; DR01816-6.5159027; DR01816-6.5159030; DR01816-6.5159040; DR01816-6.5269027; DR01816-6.5269030; DR01816-6.5269040; DR01816-6.5389027; DR01816-6.5389030; DR01816-6.5389040; DR01816-6.5459027; DR01816-6.5459030; DR01816-6.5459040

Luminous Flux (LM): 151LM; 159LM; 167LM; 253LM; 267LM; 301LM; 252LM; 266LM; 293LM; 278LM; 292LM; 302LM; 186LM; 196LM; 206LM; 308LM; 324LM; 357LM; 305LM; 322LM; 362LM; 346LM; 364LM; 383LM

Power (W): 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 5W; 6.5W; 6.5W; 6.5W; 6.5W; 6.5W; 6.5W; 6.5W; 6.5W; 6.5W; 6.5W; 6.5W; 6.5W

Beam Angle: 15°; 15°; 15°; 26°; 26°; 26°; 38°; 38°; 38°; 45°; 45°; 45°; 15°; 15°; 15°; 26°; 26°; 26°; 38°; 38°; 38°; 45°; 45°; 45°

CRI: Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90; Ra>90

Color: 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K; 2700K; 3000K; 4000K

Specification

IES

DWG

manual

Favorite

Application
