ARKE
LED 15X15 High Efficiency single color positive bend neon strip
ARKE
Lighting Effects
- Products Specification:
- Type: LED 15X15 High Efficiency single color positive bend neon strip
- Cutout:/
- Power:6W/m 12W/m 14.4W/m 18W/m
- CCT:2700K 3000K 4000K
- Beam Angle:120D
- Weight:0.6kg
- Surface-Treatment:Silica

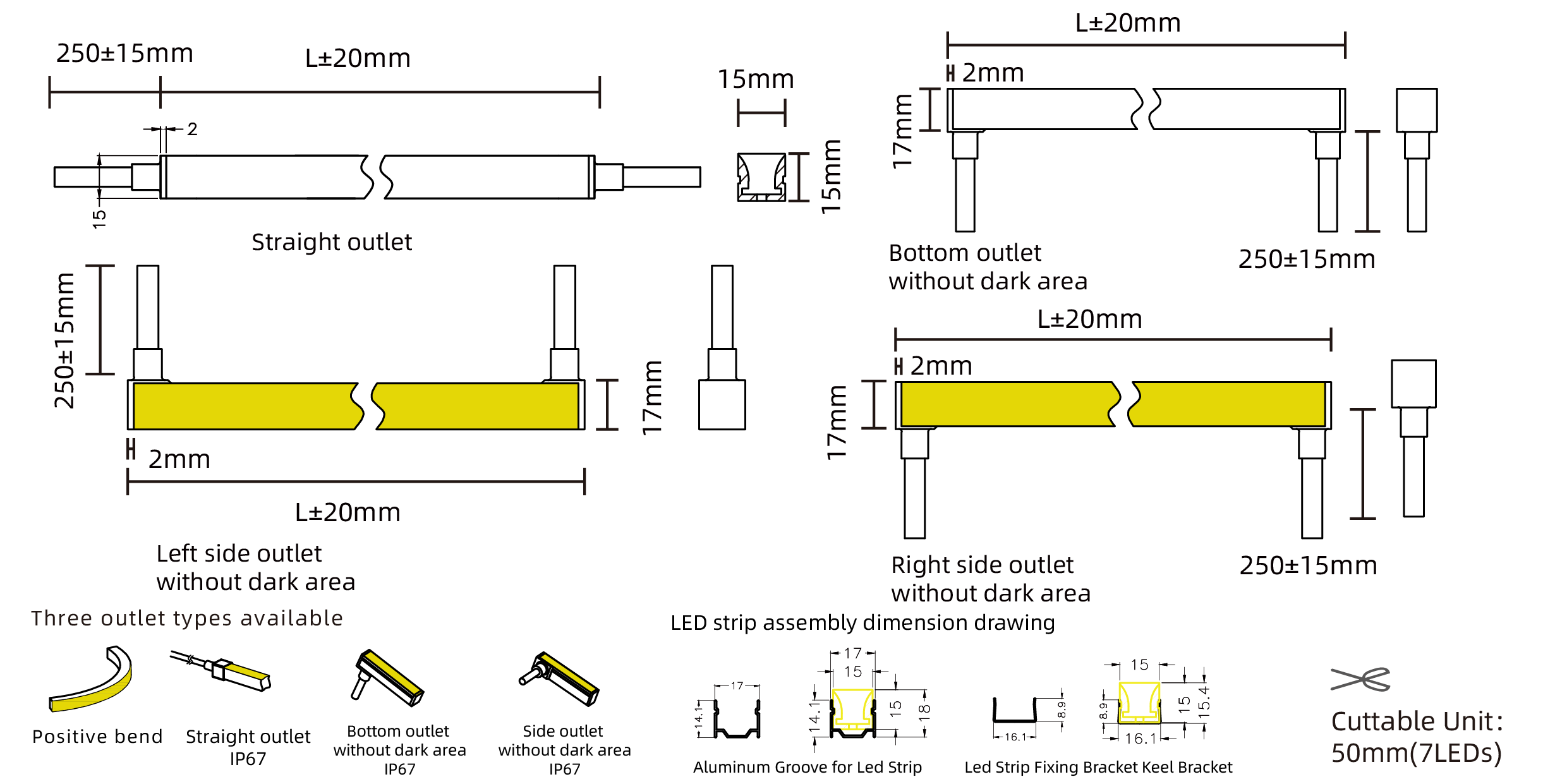

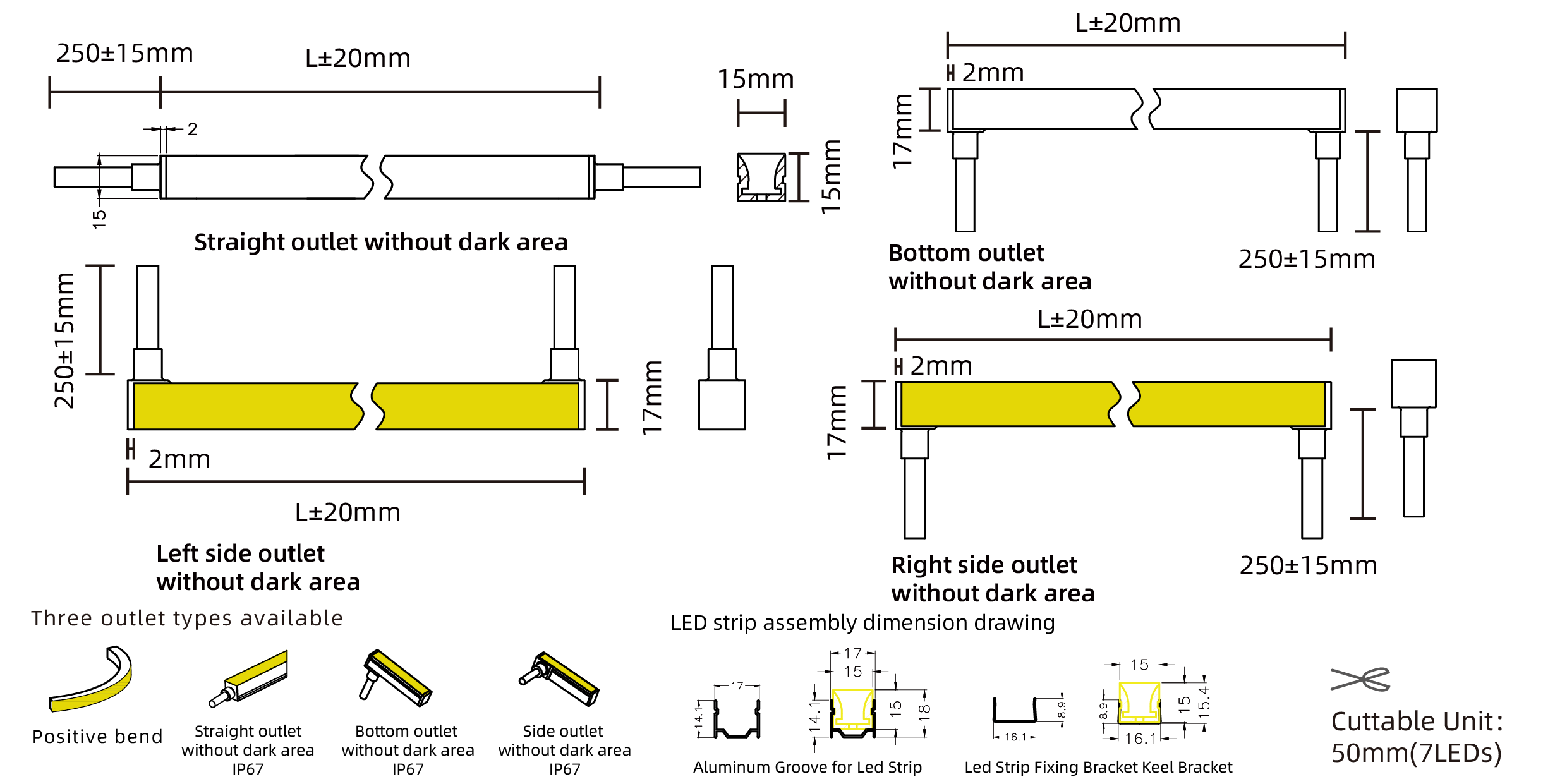

- Line Drawing:
- General Features:
- Accessories :
- Reflector Color:
- Frame Color:
Select your Model No:
*Please log in before selecting your Model No
Power(W)
- Power(W)
- 6W/m
- 10W/m
- 14.4W/m
- 18W/m
Beam Angle
- Beam Angle
- 120°
CRI
- CRI
- Ra>90
Color
- Color
- 2700K
- 3000K
- 4000K
Dimming type
- Dimming type
- 1-Non Dim
- 2-Phase dimming
- 3-0-10V dimming
- 4-DALI dimming
- 5-DMX512
- 6-Bluetooth
Finish
- Finish
- N/A
Reflector
- Reflector
- N/A
IP Rating
- IP Rating
- 67-IP67
Accessory
- Accessory
Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Specification
IES
DWG
manual
Favorite
- Model No
- SS00812-06A19027
- SS00812-06A19030
- SS00812-06A19040
- SS00812-10A19027
- SS00812-10A19030
- SS00812-10A19040
- SS00812-14.4A19027
- SS00812-14.4A19030
- SS00812-14.4A19040
- SS00812-18A19027
- SS00812-18A19030
- SS00812-18A19040
- Luminous Flux (LM)
404LM
425LM
447LM
682LM
718LM
754LM
937LM
986LM
1035LM
1129LM
1188LM
1248LM
- Power (W)
6W/m
6W/m
6W/m
10W/m
10W/m
10W/m
14.4W/m
14.4W/m
14.4W/m
18W/m
18W/m
18W/m
- Beam Angle
120°
120°
120°
120°
120°
120°
120°
120°
120°
120°
120°
120°
- CRI
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
Ra>90
- Color
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
2700K
3000K
4000K
