Home Products LED Strip ARKE - 12X16 side bend integral color-changing RGBW neon LED strip

ARKE

12X16 side bend integral color-changing RGBW neon LED strip

ARKE

Lighting Effects

Products Specification:: Type:12X16 side bend integral color-changing RGBW neon LED strip; Cutout:/; Power:14.4W/m 18W/m; CCT:RGBW; Beam Angle:120D; Weight:0.6kg; Surface-Treatment:Silica

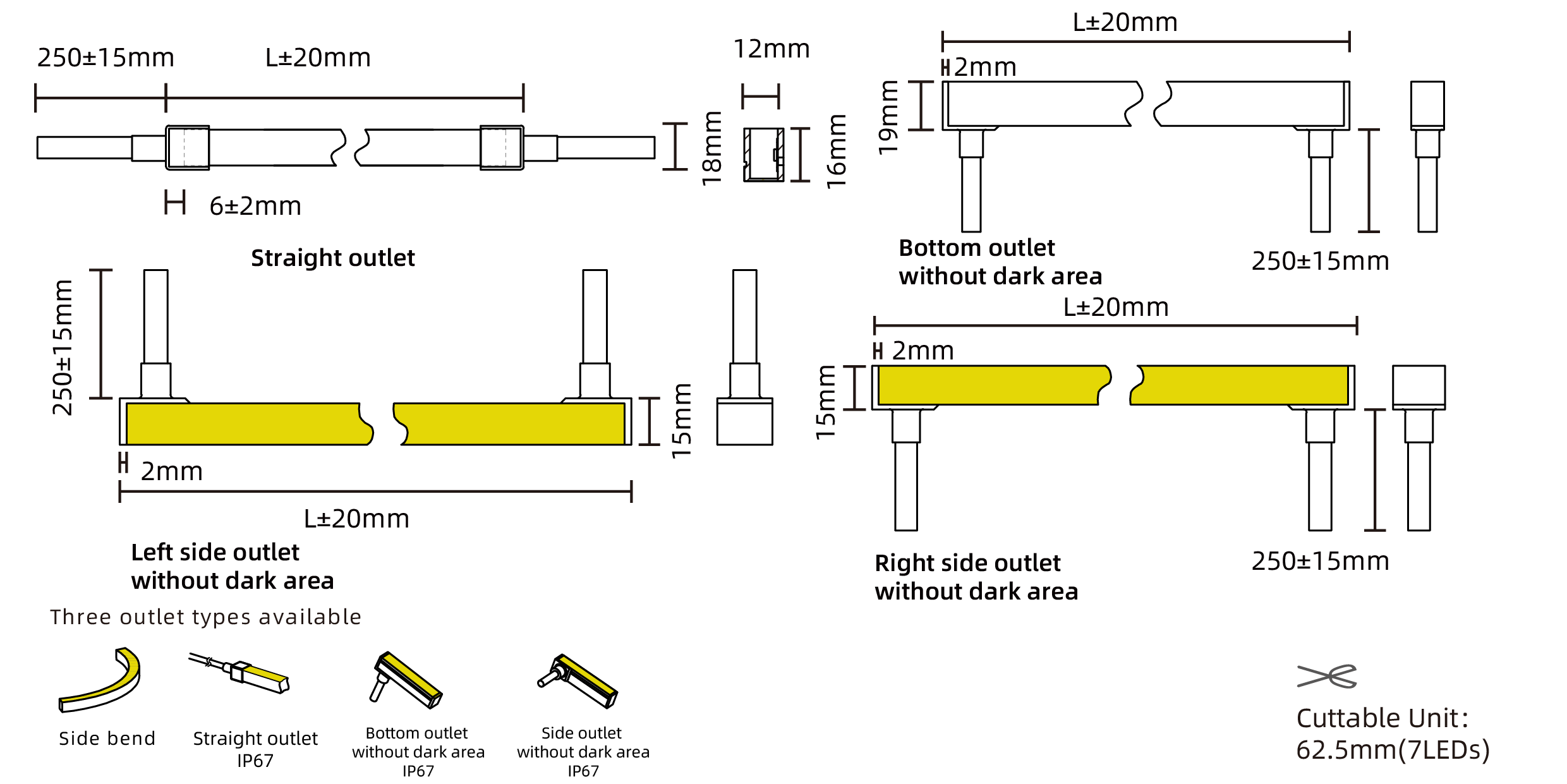

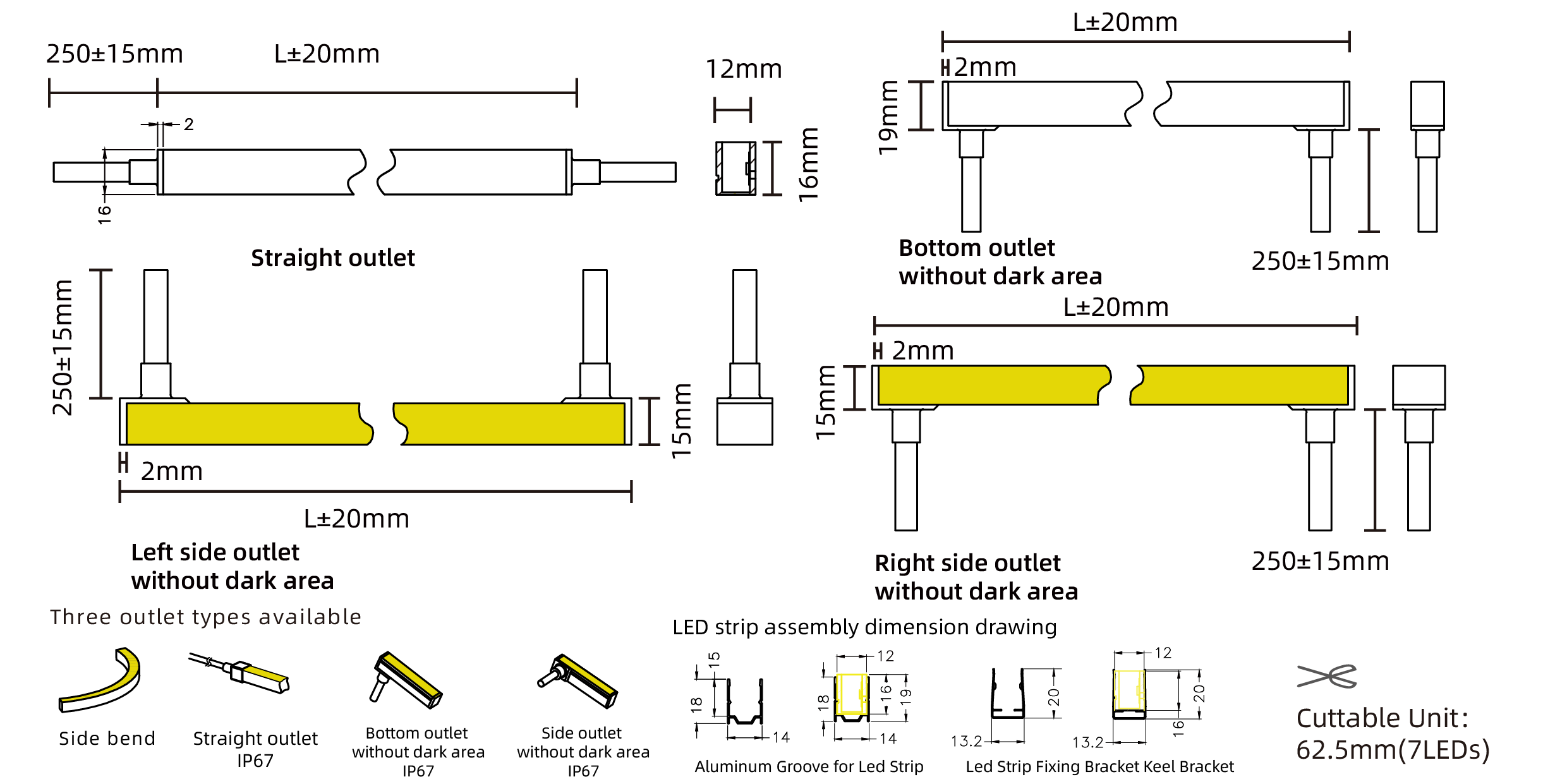

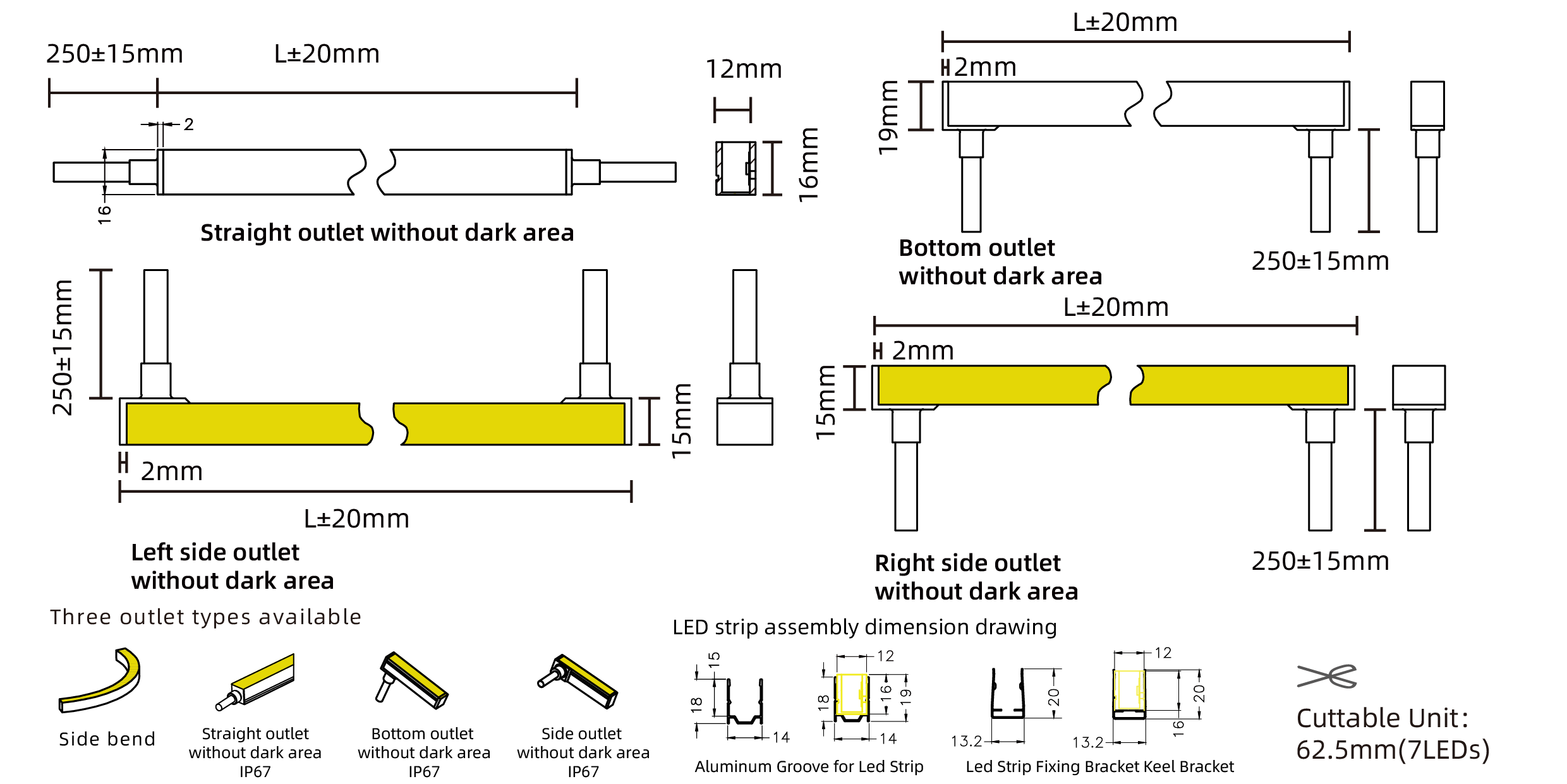

Line Drawing:

General Features:

Accessories :

Reflector Color:

Frame Color:

Select your Model No:
*Please log in before selecting your Model No

Power(W)

Power(W)
15W/m
18W/m

Beam Angle

Beam Angle
120°

CRI

CRI
/
Ra>80
465-470nm
525-530nm
620-630nm

Color

Color
RGBW-R
RGBW3000K-Full On
RGBW4000K-Full On
RGBW-G
RGBW2700K-Full On
RGBW-RGB
RGBW-W4000K
RGBW-W3000K
RGBW-W2700K
RGBW-B

Dimming type

Dimming type
5-DMX512

Finish

Finish

Reflector

Reflector

IP Rating

IP Rating
67-IP67

Accessory

Accessory

Model No
Luminaire lumen（LM）
Power (W)
Beam Angle
CRI
Color
Specification
IES
DWG
manual
Favorite

Model No: SS00711-1512090-Red; SS00711-1512090-Green; SS007111512090-Blue; SS00711-151209027; SS00711-151209030; SS00711-151209040; SS00711-1512090-RGB; SS00711-151209027-RGBW; SS00711-151209030-RGBW; SS00711-151209040-RGBW; SS00711-1812090-Red; SS00711-1812090-Green; SS00711-1812090-Blue; SS00711-181209027; SS00711-181209030; SS00711-181209040; SS00711-1812090-RGB; SS00711-181209027-RGBW; SS00711-181209030-RGBW; SS00711-181209040-RGBW

Luminous Flux (LM): 26LM; 115LM; 27LM; 142LM; 150LM; 157LM; 162LM; 289LM; 304LM; 320LM; 33LM; 150LM; 29LM; 152LM; 160LM; 168LM; 199LM; 332LM; 350LM; 367LM

Power (W): 15W/m; 15W/m; 15W/m; 15W/m; 15W/m; 15W/m; 15W/m; 15W/m; 15W/m; 15W/m; 18W/m; 18W/m; 18W/m; 18W/m; 18W/m; 18W/m; 18W/m; 18W/m; 18W/m; 18W/m

Beam Angle: 120°; 120°; 120°; 120°; 120°; 120°; 120°; 120°; 120°; 120°; 120°; 120°; 120°; 120°; 120°; 120°; 120°; 120°; 120°; 120°

CRI: 620-630nm; 525-530nm; 465-470nm; Ra>80; Ra>80; Ra>80; /; /; /; /; 620-630nm; 525-530nm; 465-470nm; Ra>80; Ra>80; Ra>80; /; /; /; /

Color: RGBW-R; RGBW-G; RGBW-B; RGBW-W2700K; RGBW-W3000K; RGBW-W4000K; RGBW-RGB; RGBW2700K-Full On; RGBW3000K-Full On; RGBW4000K-Full On; RGBW-R; RGBW-G; RGBW-B; RGBW-W2700K; RGBW-W3000K; RGBW-W4000K; RGBW-RGB; RGBW2700K-Full On; RGBW3000K-Full On; RGBW4000K-Full On

Specification

IES

DWG

manual

Favorite
