MASTER

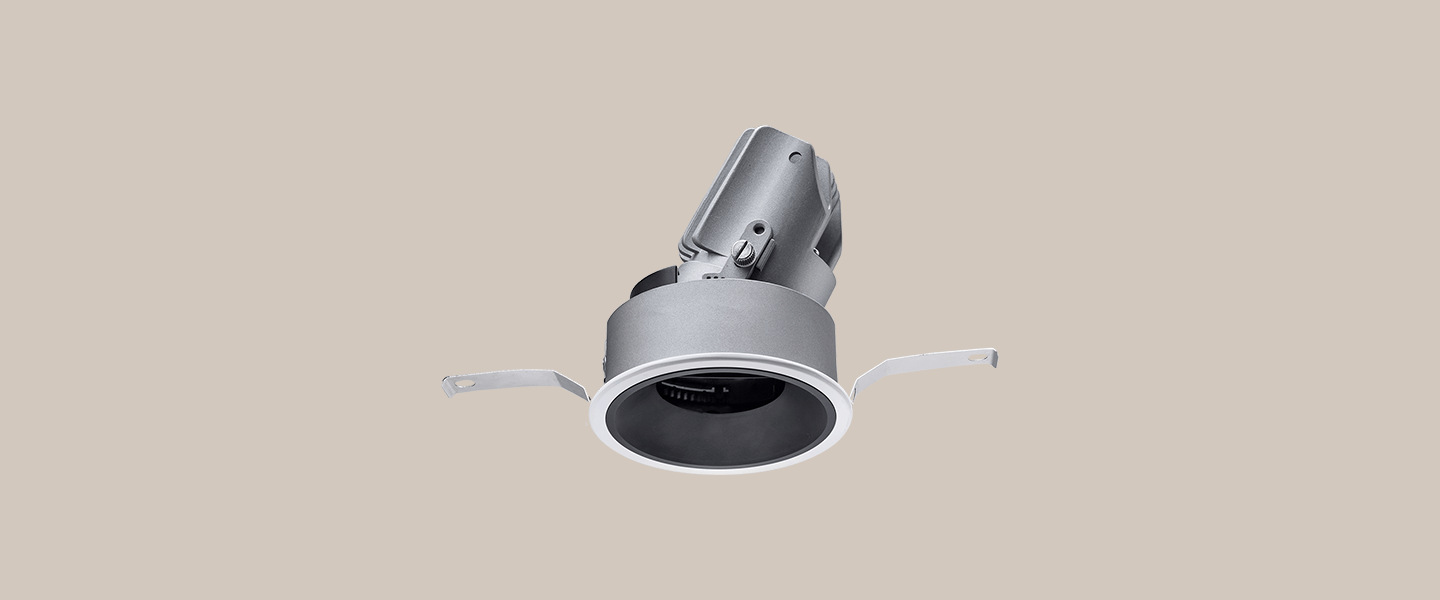

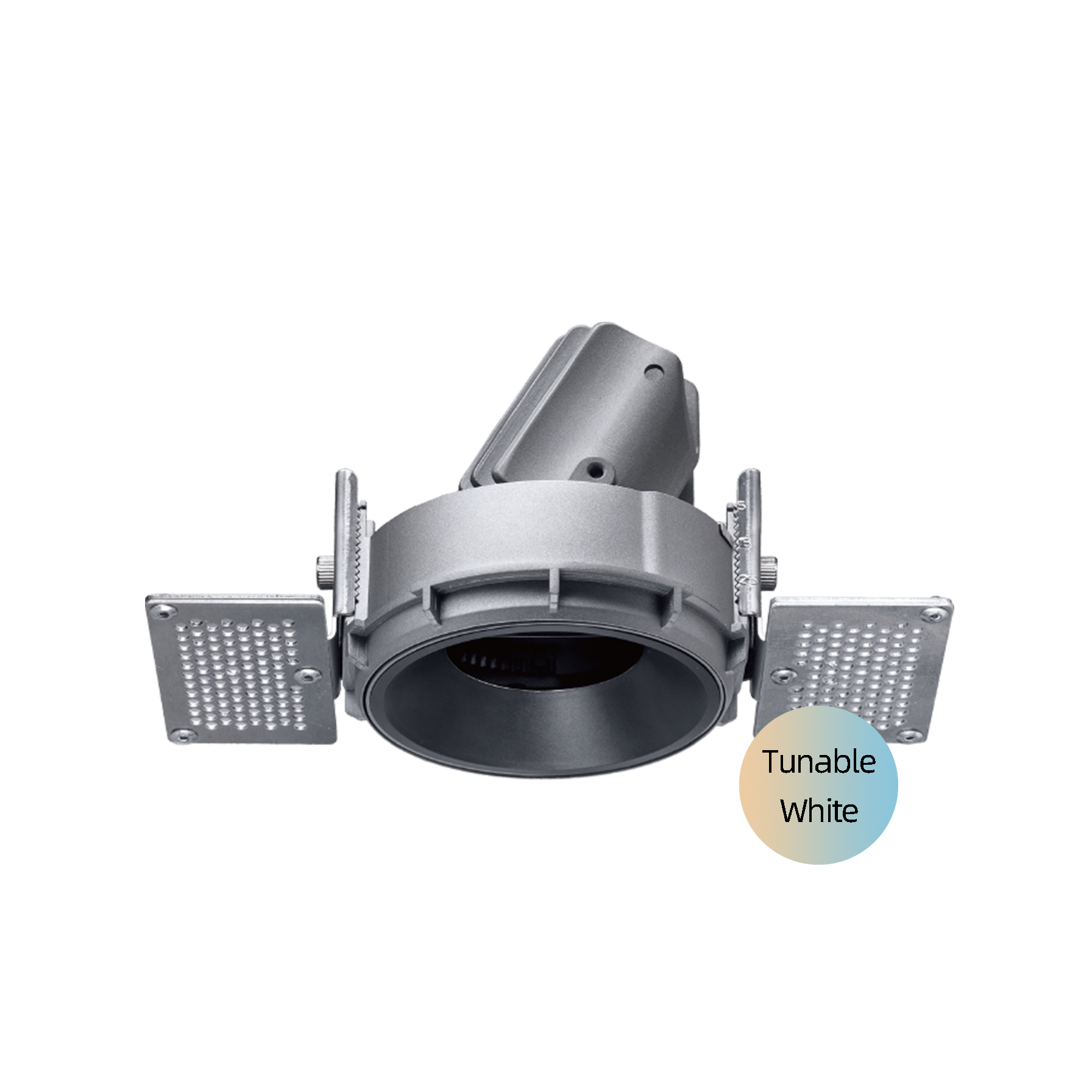

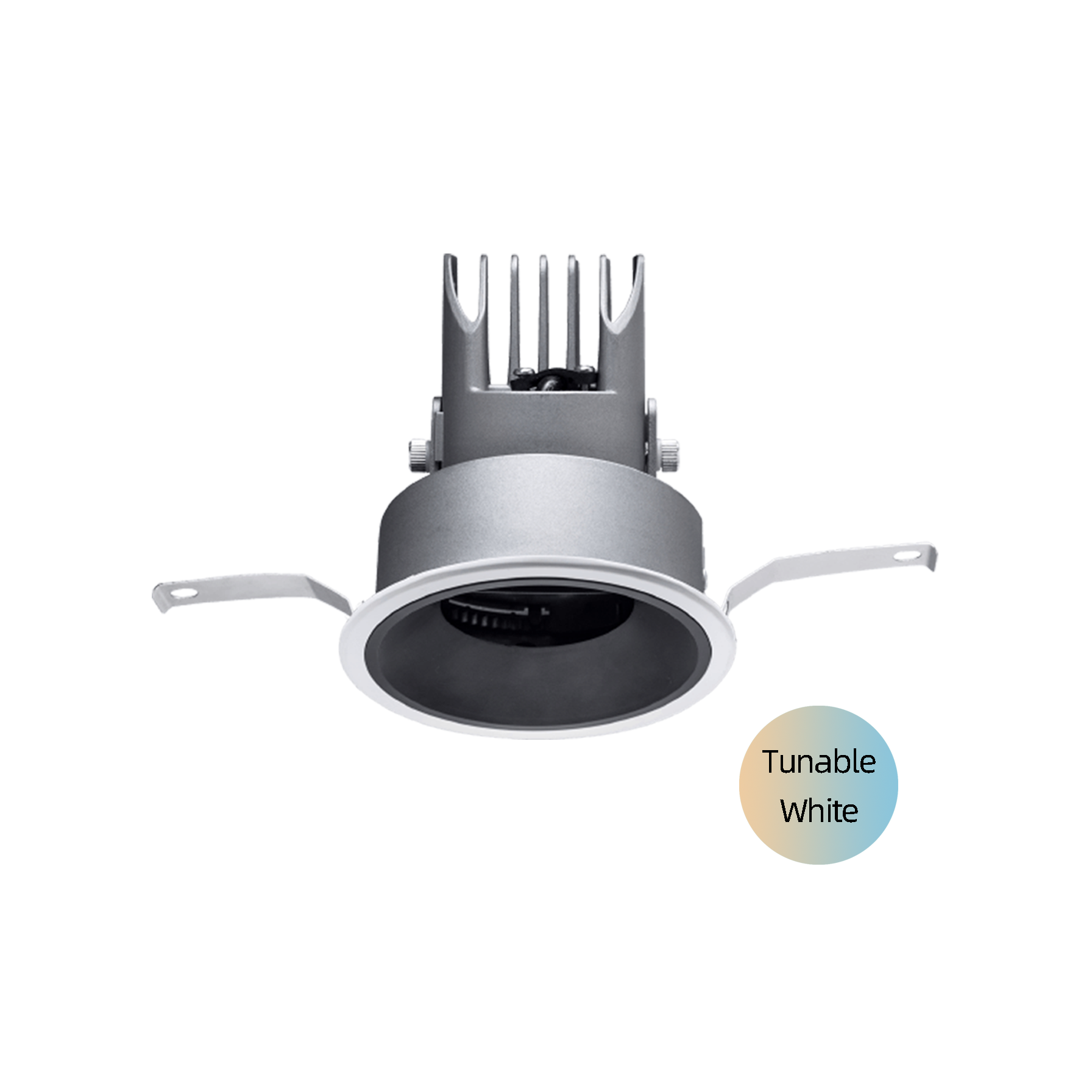

Adjustable Recessed Round Narrow Trim Tunable White Downlight

MASTER

Inspirations from masters respect to lighting masters.

Master series is flexible and changeful, providing a new lighting solution for indoor space. The compact cube contains varies lamp forms with optional combination, and a variety of optical engines and accessories which can be replaced as wish. Depending on the needs of different space functions, designers can choose power, beam angle, color temperature, or even COB integrated light source or MR16 light source. With silvery combining sounds, all components can be combined into perfect lamps structure, just like the outstanding technology and wisdom of tenon mortise. From square to circle, from narrow trim to trimless, it can be qualified for a variety of indoor space modelling design.
Among them, the square lamps have infinite splicing function with utmost innovation, also be able to add flexible wing to stylist for acquiring unfettered inspiration. Master possesses 30 ° vertically and 355 ° horizontally adjustable angle of mechanical properties, which allows the light beam in space to focus more freely and accurately. Master is equipped with independent R&D, the third generation of optics product, by which the texture, color and flexible performance are perfectly presented, providing more possibility for designers to arouse indoor space spirit and ethos.

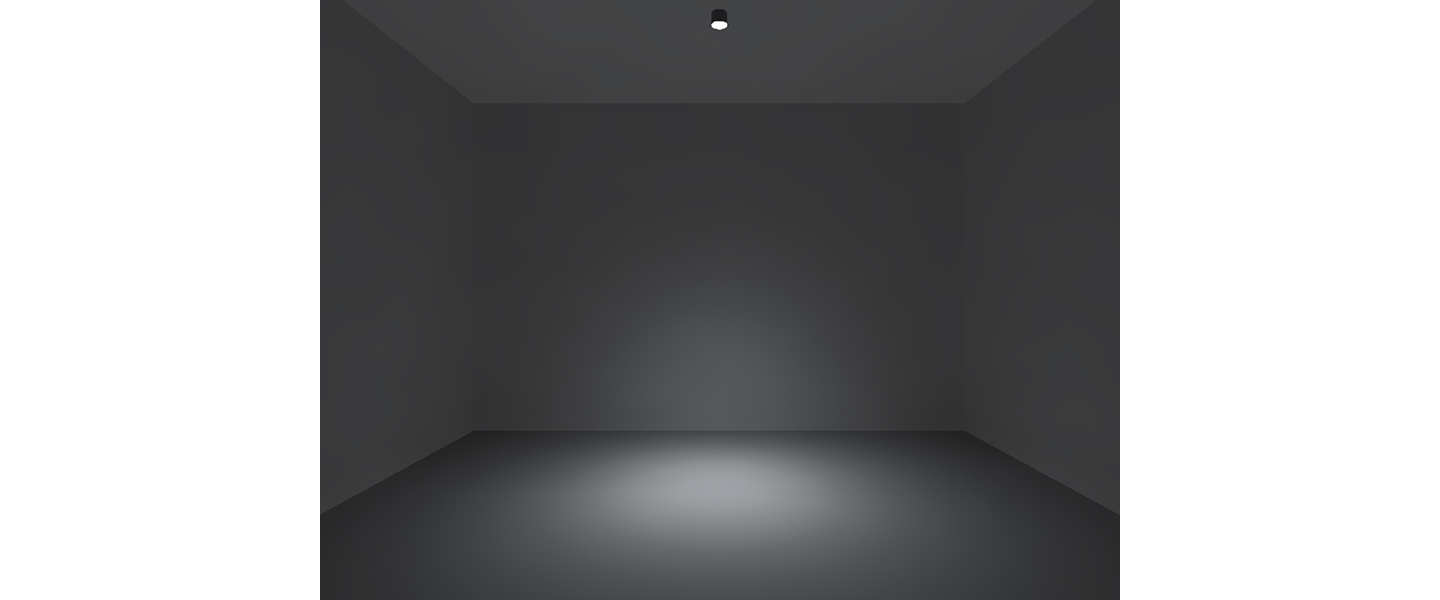

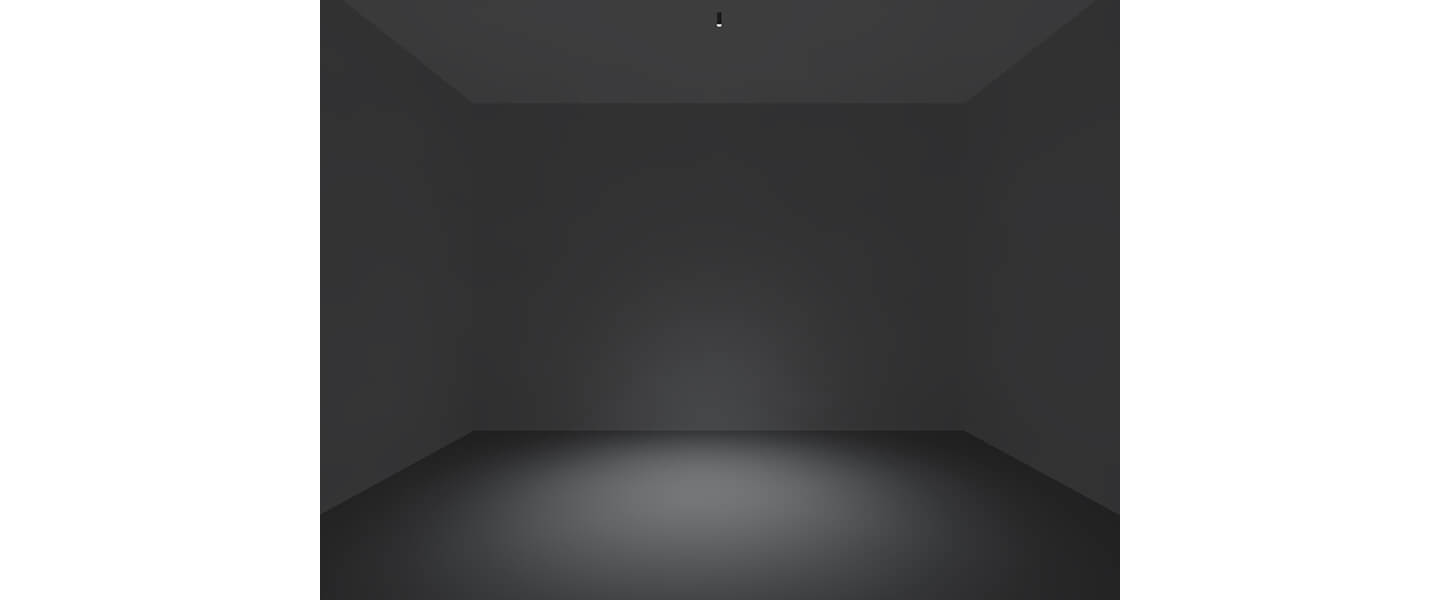

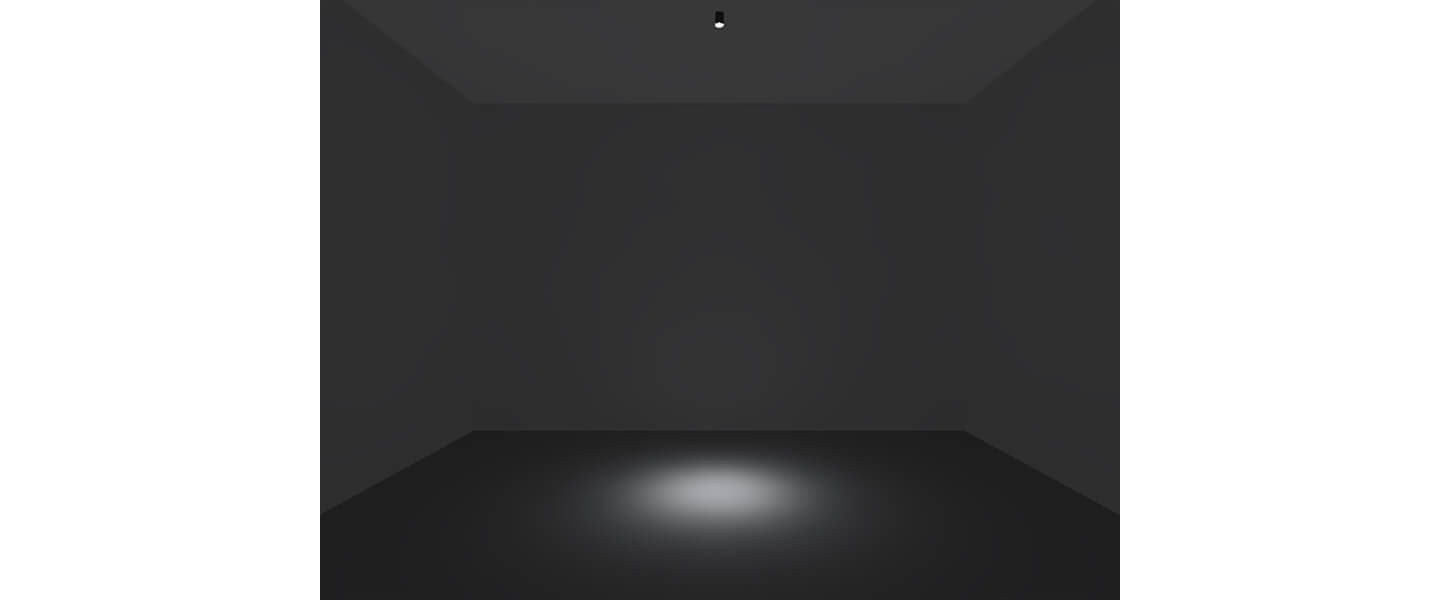

Lighting Effects

Products Specification:
Type:Adjustable Recessed Round Narrow Trim Tunable White Downlight
Cut-Out:ø 85 mm
Dimension:ø91mm *H 125mm
Beam Angle:18D 28D 36D 50D
Power: 8W 10W 12W 15W 20W 25W
Weight:0.46kg
CCT:Tunable White
Heat-Sink:Aluminum
Surface-Treatment:painting+plating
Mechanical Performance:Fixed / Adjustable
Remarks:IP44 for visible body of fitting after installation,not avaible for using with honeycomb louver

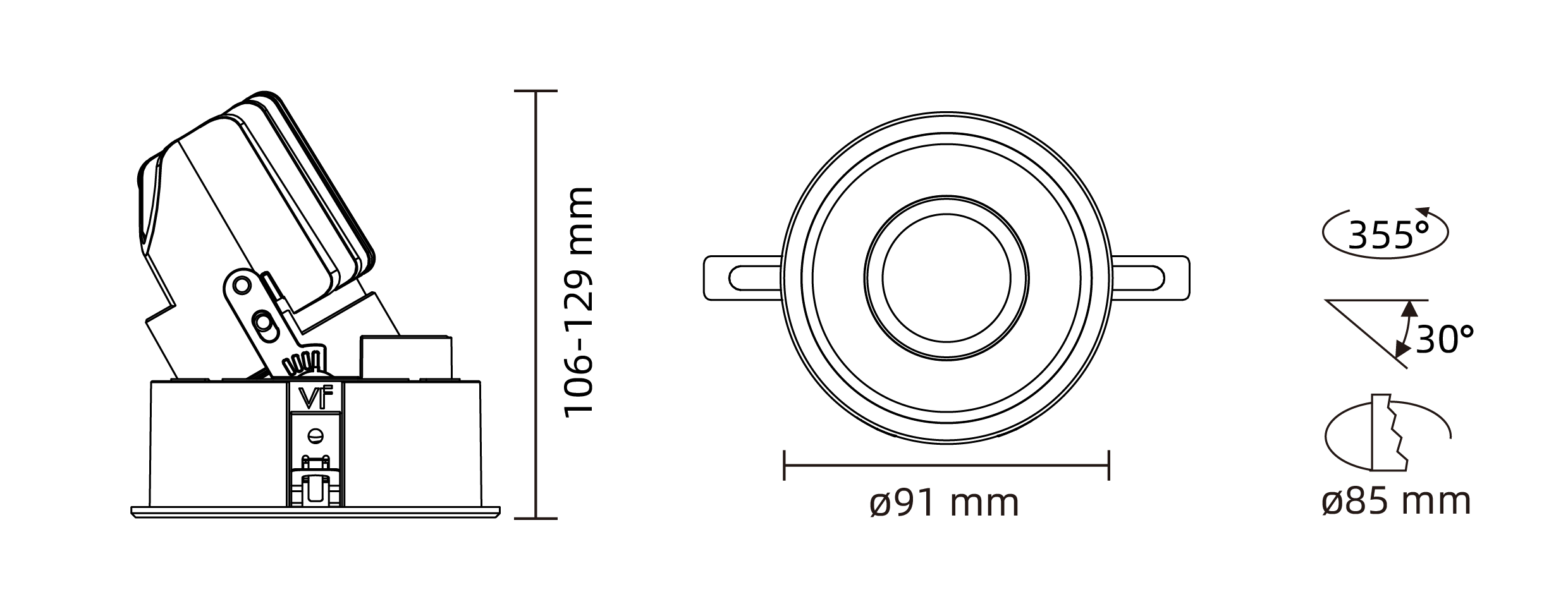

Line Drawing:
General Features:

Accessories :
Reflector Color:

Frame Color:

Select your Model No:

*Please log in before selecting your Model No

Power(W)
  • Power(W)
  • 8W
  • 10W
  • 12W
  • 15W
  • 20W
  • 25W
Beam Angle
  • Beam Angle
  • 18°
  • 28°
  • 36°
  • 50°
CRI
  • CRI
  • Ra>90
Color
  • Color
  • 1800K-4000K(e.g.4000K)
  • 1800K-4000K(e.g.1800K)
  • 2700K-6000K(e.g.6000K)
  • 2700K-6000K(e.g.2700K)
Dimming type
  • Dimming type
  • 4-DALI dimming
Finish
  • Finish
  • 01-White
  • 02-Black
Reflector
  • Reflector
  • 1-White
  • 2-Black
  • 3-Mirror
  • 4-Champagne gold
IP Rating
  • IP Rating
  • 20-IP20
  • 44-IP44
Accessory
  • Accessory
  • 1-Honeycomb louver
  • 3-Cross louver
  • 4-Linear lens
  • 6-Soft lens
  • Model No

  • Luminaire lumen(LM)

  • Power (W)

  • Beam Angle

  • CRI

  • Color

  • Specification

  • IES

  • DWG

  • manual

  • Favorite

Model No

DR00313-082890X0

DR00313- 082890X0

DR00313-083690X0

DR00313- 083690X0

DR00313-085090X0

DR00313- 085090X0

DR00313-102890X0

DR00313- 102890X0

DR00313-103690X0

DR00313- 103690X0

DR00313-105090X0

DR00313- 105090X0

DR00313-122890X0

DR00313- 122890X0

DR00313-123690X0

DR00313- 123690X0

DR00313-125090X0

DR00313- 125090X0

DR00313-152890X0

DR00313- 152890X0

DR00313-153690X0

DR00313- 153690X0

DR00313-155090X0

DR00313- 155090X0

DR00313-202890X0

DR00313- 202890X0

DR00313-203690X0

DR00313- 203690X0

DR00313-205090X0

DR00313- 205090X0

DR00313-252890X0

DR00313- 252890X0

DR00313-253690X0

DR00313- 253690X0

DR00313-255090X0

DR00313- 255090X0

DR00313-101890X4

DR00313- 101890X4

DR00313-102890X4

DR00313- 102890X4

DR00313-103690X4

DR00313- 103690X4

DR00313-105090X4

DR00313- 105090X4

DR00313-121890X4

DR00313- 121890X4

DR00313-122890X4

DR00313- 122890X4

DR00313-123690X4

DR00313- 123690X4

DR00313-125090X4

DR00313- 125090X4

DR00313-151890X4

DR00313- 151890X4

DR00313-152890X4

DR00313- 152890X4

DR00313-153690X4

DR00313- 153690X4

DR00313-155090X4

DR00313- 155090X4

DR00313-202890X4

DR00313- 202890X4

DR00313-203690X4

DR00313- 203690X4

DR00313-205090X4

DR00313- 205090X4

DR00313-252890X4

DR00313- 252890X4

DR00313-253690X4

DR00313- 253690X4

DR00313-255090X4

DR00313- 255090X4

Luminous Flux (LM)

278LM

477LM

308LM

534LM

313LM

536LM

332LM

577LM

373LM

645LM

371LM

658LM

378LM

658LM

423LM

738LM

424LM

735LM

430LM

746LM

486LM

868LM

481LM

840LM

562LM

991LM

633LM

1111LM

621LM

1104LM

720LM

1282LM

807LM

1427LM

828LM

1401LM

317LM

421LM

506LM

620LM

564LM

690LM

562LM

688LM

353LM

474LM

575LM

708LM

659LM

792LM

637LM

784LM

397LM

522LM

651LM

820LM

731LM

921LM

719LM

884LM

897LM

1044LM

1015LM

1143LM

978LM

1147LM

984LM

1055LM

1076LM

1263LM

1081LM

1318LM

Power (W)

8W

8W

8W

8W

8W

8W

10W

10W

10W

10W

10W

10W

12W

12W

12W

12W

12W

12W

15W

15W

15W

15W

15W

15W

20W

20W

20W

20W

20W

20W

25W

25W

25W

25W

25W

25W

10W

10W

10W

10W

10W

10W

10W

10W

12W

12W

12W

12W

12W

12W

12W

12W

15W

15W

15W

15W

15W

15W

15W

15W

20W

20W

20W

20W

20W

20W

25W

25W

25W

25W

25W

25W

Beam Angle

28°

28°

36°

36°

50°

50°

28°

28°

36°

36°

50°

50°

28°

28°

36°

36°

50°

50°

28°

28°

36°

36°

50°

50°

28°

28°

36°

36°

50°

50°

28°

28°

36°

36°

50°

50°

18°

18°

28°

28°

36°

36°

50°

50°

18°

18°

28°

28°

36°

36°

50°

50°

18°

18°

28°

28°

36°

36°

50°

50°

28°

28°

36°

36°

50°

50°

28°

28°

36°

36°

50°

50°

CRI

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Ra>90

Color

1800K-4000K(e.g.1800K)

1800K-4000K(e.g.4000K)

1800K-4000K(e.g.1800K)

1800K-4000K(e.g.4000K)

1800K-4000K(e.g.1800K)

1800K-4000K(e.g.4000K)

1800K-4000K(e.g.1800K)

1800K-4000K(e.g.4000K)

1800K-4000K(e.g.1800K)

1800K-4000K(e.g.4000K)

1800K-4000K(e.g.1800K)

1800K-4000K(e.g.4000K)

1800K-4000K(e.g.1800K)

1800K-4000K(e.g.4000K)

1800K-4000K(e.g.1800K)

1800K-4000K(e.g.4000K)

1800K-4000K(e.g.1800K)

1800K-4000K(e.g.4000K)

1800K-4000K(e.g.1800K)

1800K-4000K(e.g.4000K)

1800K-4000K(e.g.1800K)

1800K-4000K(e.g.4000K)

1800K-4000K(e.g.1800K)

1800K-4000K(e.g.4000K)

1800K-4000K(e.g.1800K)

1800K-4000K(e.g.4000K)

1800K-4000K(e.g.1800K)

1800K-4000K(e.g.4000K)

1800K-4000K(e.g.1800K)

1800K-4000K(e.g.4000K)

1800K-4000K(e.g.1800K)

1800K-4000K(e.g.4000K)

1800K-4000K(e.g.1800K)

1800K-4000K(e.g.4000K)

1800K-4000K(e.g.1800K)

1800K-4000K(e.g.4000K)

2700K-6000K(e.g.2700K)

2700K-6000K(e.g.6000K)

2700K-6000K(e.g.2700K)

2700K-6000K(e.g.6000K)

2700K-6000K(e.g.2700K)

2700K-6000K(e.g.6000K)

2700K-6000K(e.g.2700K)

2700K-6000K(e.g.6000K)

2700K-6000K(e.g.2700K)

2700K-6000K(e.g.6000K)

2700K-6000K(e.g.2700K)

2700K-6000K(e.g.6000K)

2700K-6000K(e.g.2700K)

2700K-6000K(e.g.6000K)

2700K-6000K(e.g.2700K)

2700K-6000K(e.g.6000K)

2700K-6000K(e.g.2700K)

2700K-6000K(e.g.6000K)

2700K-6000K(e.g.2700K)

2700K-6000K(e.g.6000K)

2700K-6000K(e.g.2700K)

2700K-6000K(e.g.6000K)

2700K-6000K(e.g.2700K)

2700K-6000K(e.g.6000K)

2700K-6000K(e.g.2700K)

2700K-6000K(e.g.6000K)

2700K-6000K(e.g.2700K)

2700K-6000K(e.g.6000K)

2700K-6000K(e.g.2700K)

2700K-6000K(e.g.6000K)

2700K-6000K(e.g.2700K)

2700K-6000K(e.g.6000K)

2700K-6000K(e.g.2700K)

2700K-6000K(e.g.6000K)

2700K-6000K(e.g.2700K)

2700K-6000K(e.g.6000K)

Specification
IES
DWG
manual
Favorite

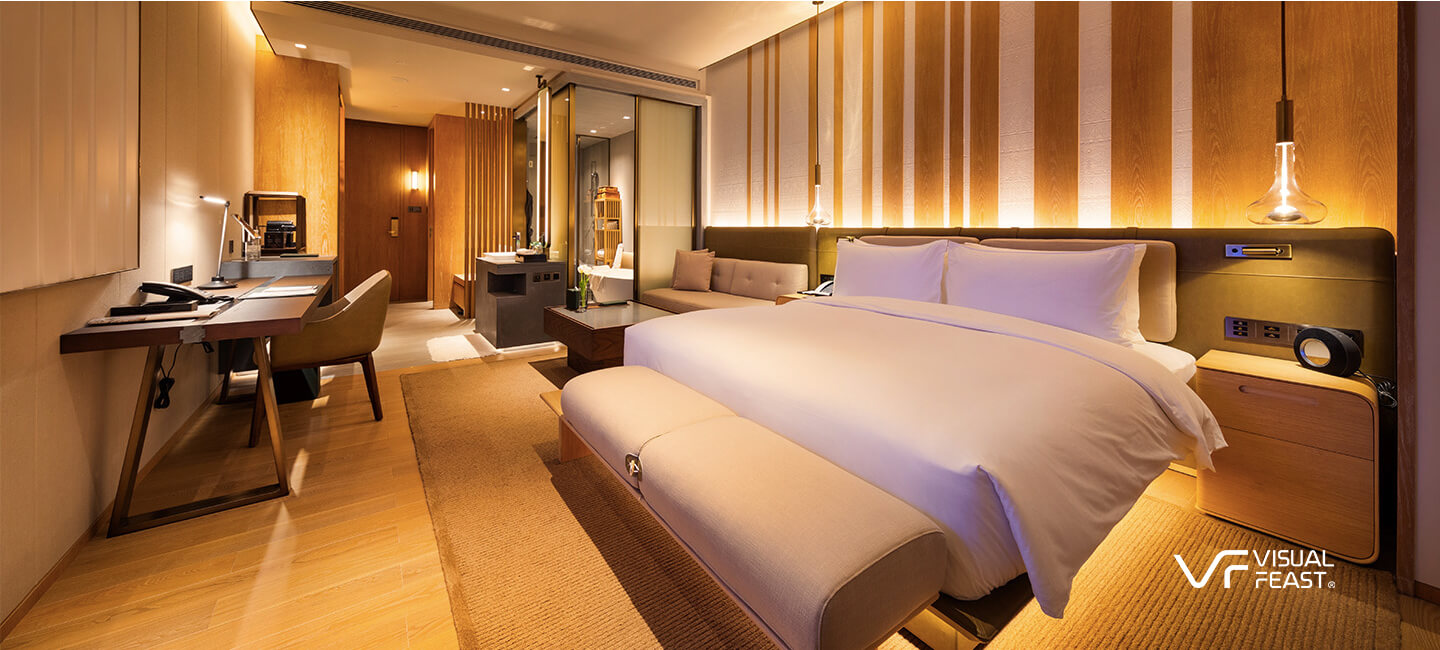

Application

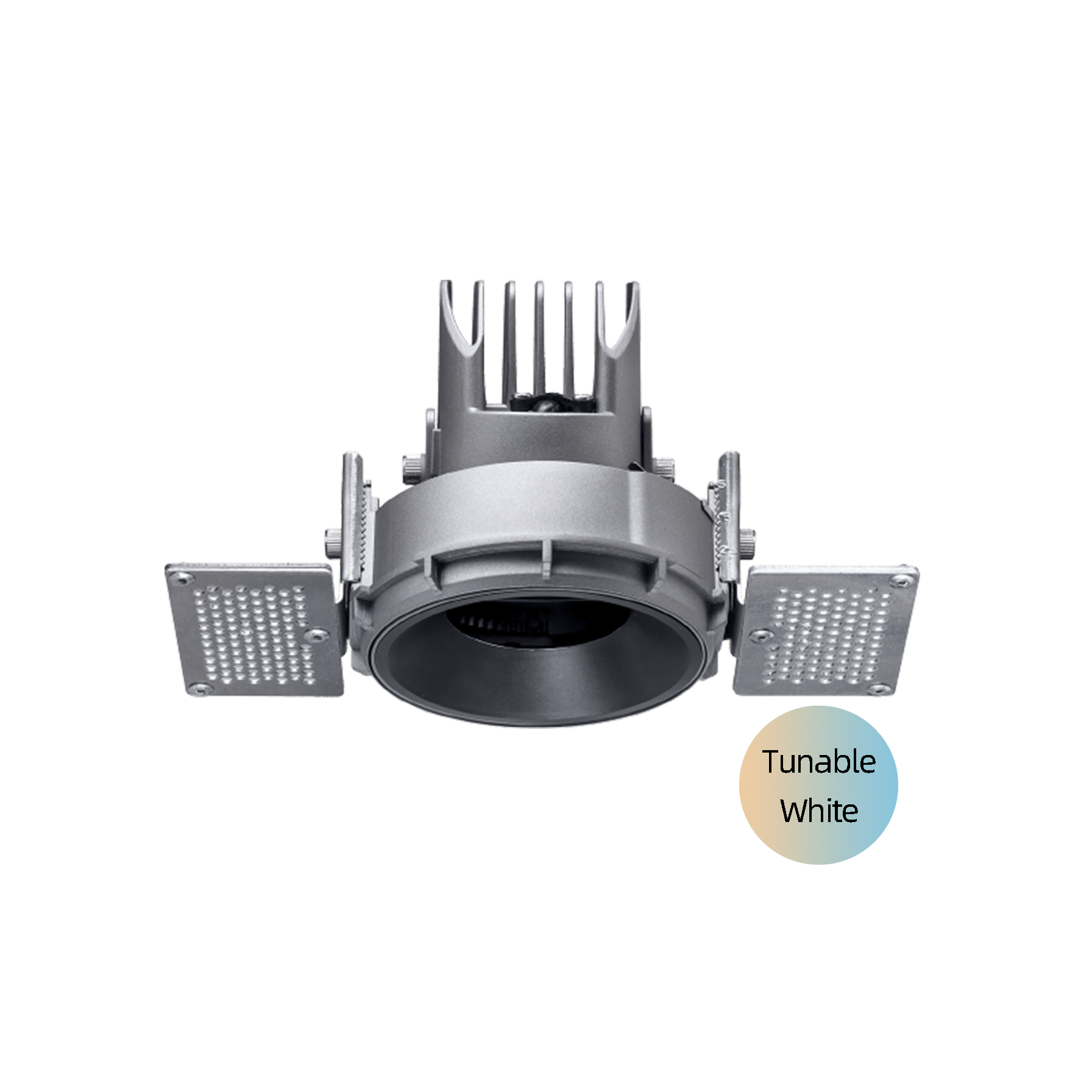

Related Products
